SVCHSC Series – 13.2MM X 13.2MM Metal Half Size Dip CMOS VCXO
Part Numbering Guide
Electrical Parameters
Parameters | Units | Min | Typical | Max | Remarks |
---|---|---|---|---|---|
Frequency Range | MHz | 1 | 160 | ||
Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
Storage Temperature | °C | -55 | +125 | ||
Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | Available with AT-Cut Fundamental and PLL. |
Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | Only available with AT-Cut Fundamental. |
Current (IDD) - 3.3V Option | mA | 40 | |||
Current (IDD) - 5.0V Option | mA | 50 | |||
Current Voltage (VC) 3.3V Option | V | 0.3 | 3.0 | ||
Current Voltage (VC) 5.0V Option | V | 0.5 | 4.5 | ||
Pullability | ppm | ±50 | ±100 | ±150 | See part numbering guide for options. |
Linearity | % | 10 | |||
Output Load (CMOS) | pF | 15 | |||
Output Load (TTL) | TTL | 10 | |||
CMOS Output Logic Levels High (VOH) | V | 0.9*VDD | |||
CMOS Output Logic Levels Low (VOL) | V | 0.1*VDD | |||
TTL Output Logic Levels High (VOH) | V | 2.4 | |||
TTL Output Logic Levels Low (VOL) | V | 0.4 | |||
Rise (TR) and Fall (TF) Time | ns | 5 | |||
Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
Start-Up Time | ms | 10 | |||
Phase Jitter (12kHz ~ 20MHz) | ps | 1 | AT-Cut Fundamental | ||
Phase Jitter (12kHz ~ 20MHz) | ps | 5 | PLL (Phase Lock Loop) |

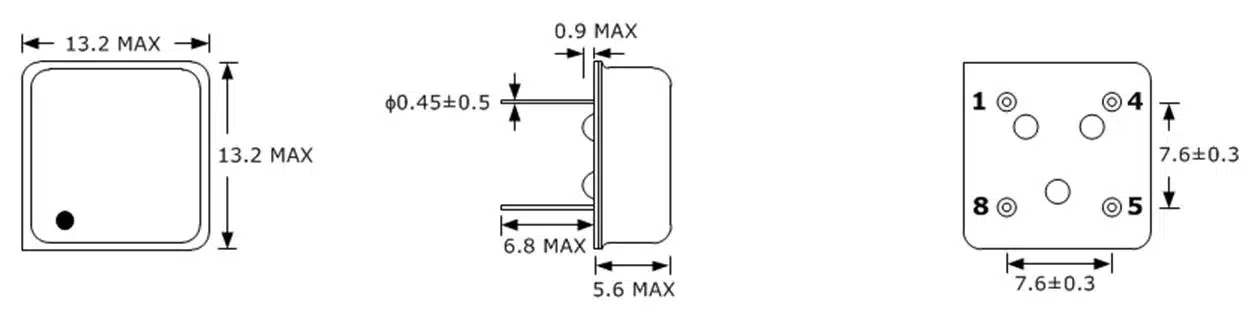

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
