SAX224 Series – 2.5mm x 2.0mm Ceramic SMD 4 Pad Automotive Crystal

3D Product View

3D View

Features

• ±10ppm/±30ppm (Tolerance/Stability) Available
• Ultra-Miniature Package
• High Reliability for Automotive
• Wide Temperature Range Available
• AEC-Q200 Compliant

Applications

• Automotive Electronics
• Infotainment System
• ADAS
• TPMS
• Ethernet

3D Product View

3D View

Features

• ±10ppm/±30ppm (Tolerance/Stability) Available
• Ultra-Miniature Package
• High Reliability for Automotive
• Wide Temperature Range Available
• AEC-Q200 Compliant

Applications

• Automotive Electronics
• Infotainment System
• ADAS
• TPMS
• Ethernet

Part Number Builder

Please choose your parameters to build a part number:

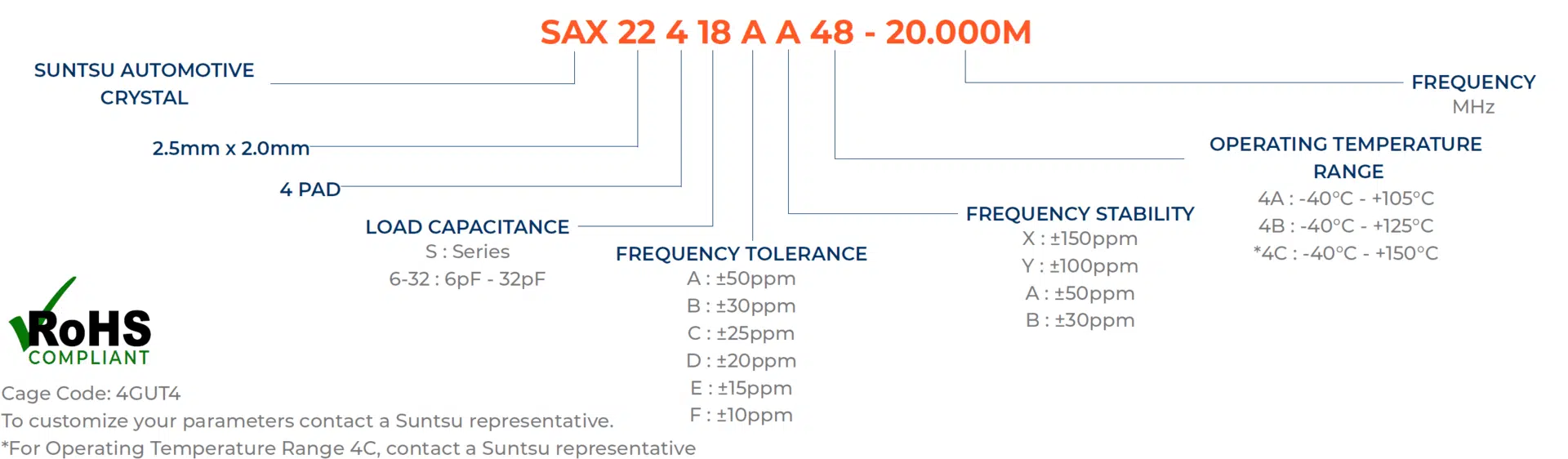

Part Numbering Guide

SAX224-Part-Numbering-Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1254AT-Cut Fundamental.
Frequency Tolerance at +25ºCppm-1010See part numbering guide for options.
Frequency Stability vs. Op Tempppm-3030See part numbering guide for options.
Frequency Stability vs. Agingppm-33First year @ +25ºC.
Operating Temperature°C-40150See part numbering guide for options.
Storage Temperature°C-40150
Load CapacitancepF632See part numbering guide for options.
Shunt CapacitancepF3
Drive LevelμW50100
Insulation Resistance500@ 100VDC ± 15V.
         12.000MHz ~ 15.999MHzΩ150
ESR - 16.000MHz ~ 23.999MHzΩ100
         24.000MHz ~ 31.999MHzΩ80
         32.000MHz ~ 54.000MHzΩ60

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SAX224-outline-drawing
