Suntsu Electronics Foot Switches SSWFS-S01-AC05

Foot Switches

Suntsu Foot Switches are available in through-hole or surface-mount packaging with many sizes to choose from. Pick out a standard part number from the data sheets below or contact our sales team to request any custom parameters that you desire and we will design to your specific needs.

Part No.ImagePackage (mm)Mechanical LifeElectrical LifeSwitch FunctionConnection TypeData Sheet
SSWFS-S01-AA05-HWHSSWFS-S01-AA0525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)SolderDatasheet Download
SSWFS-S01-AA09-HWHSSWFS-S01-AA0925.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)PC MountingDatasheet Download

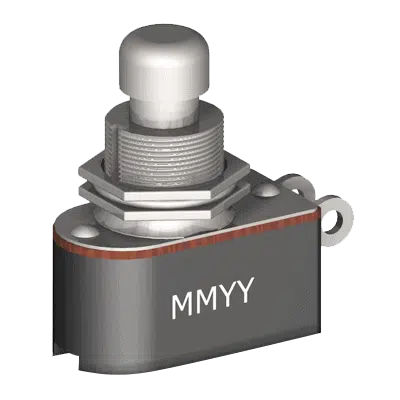

SSWFS-S01-AC05-HWHSSWFS-S01-AC0525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)SolderDatasheet Download
SSWFS-S01-AC11-HWH-C25SSWFS-S01-AC1125.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)Connector Pitch 2.5mmDatasheet Download
SSWFS-S01-AE05-HWHSSWFS-S01-AE0525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)SolderDatasheet Download
SSWFS-S01-AE11-(HWH)-C20SSWFS-S01-AE11-0HWH0-C2025.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)Connector Pitch 2.0mmDatasheet Download
SSWFS-S01-AE11-HWH-C20SSWFS-S01-AE11-HWH-C2025.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)Connector Pitch 2.0mmDatasheet Download
SSWFS-S01-AE11-HWH-C25SSWFS-S01-AE11-HWH-C2525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)Connector Pitch 2.5mmDatasheet Download
SSWFS-S01-BA05-HHSSWFS-S01-BA0525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)SolderDatasheet Download
SSWFS-S01-BB05-HWHSSWFS-S01-B0525.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)SolderDatasheet Download
SSWFS-S01-AC09-HWHSSWFS-S01-AC0925.5 x 13100,000 cycles20,000 cyclesSPST OFF-(ON)PC MountingDatasheet Download
