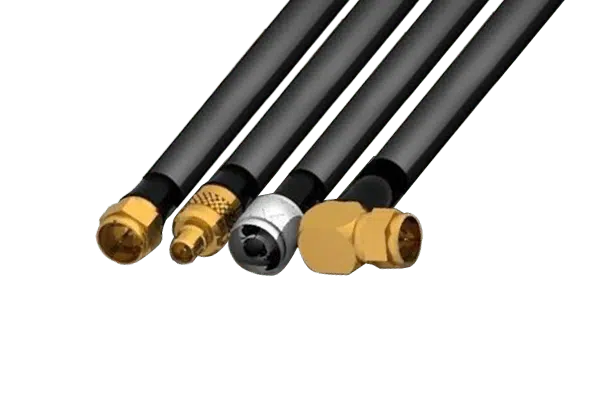

Suntsu RF Cable Assemblies are engineered to excel in challenging communications applications. Whether you’re facing design challenges or unsure of what you need, Suntsu can develop a high-quality and high-performance solution tailored to your WiFi, GPS, LTE, Bluetooth, or other wireless communications application. Choose from several standard cable assembly configurations in the table below, or construct your own from popular end connector and cable types, including RG braided, micro coax, and low loss types.
Suntsu RF Cables
| Part Number | Cable Jacket Material | Connector Type "A" | Connector Type "B" | Impedance | Cable Type | Datasheet |
|---|---|---|---|---|---|---|

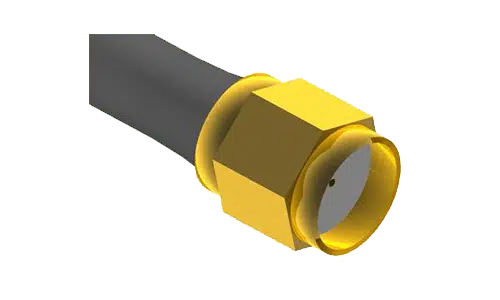

| SCBRF-X6ARAAP-RAMS-NYMS | PVC |  RP-SMA - Male - Straight |  N-TYPE - Male - Straight | 50 | RG-58 |  |

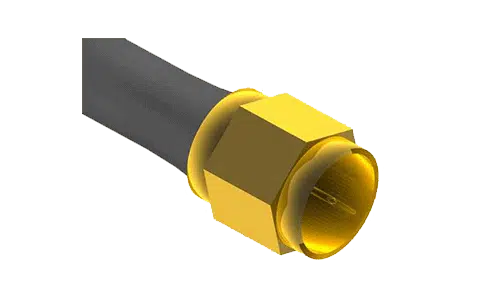

| SCBRF-X6ARGAP-SAMS-SAMS | PVC |  SMA - Male - Straight | SMA - Male - Straight | 50 | RG-178 | |

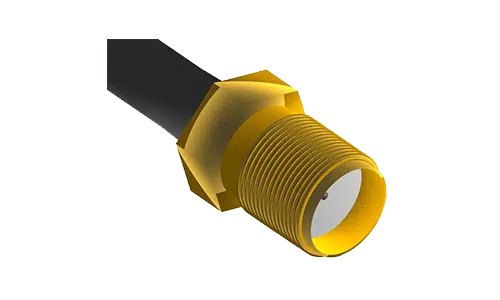

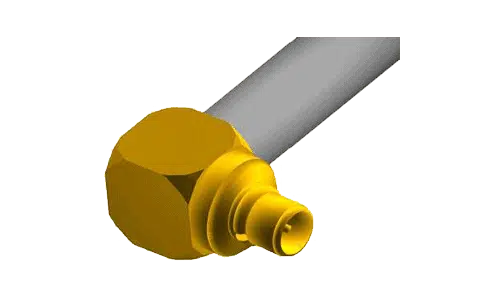

| SCBRF-X6ARGAP-SAFS-MMMR | PVC |  SMA - Female - Straight |  MMCX - Male - Right Angle | 50 | RG-178 | |
| SCBRF-X6ARGAP-NYFS-MMMR | PVC |  N-TYPE - Female - Straight | MMCX - Male - Right Angle | 50 | RG-178 | |
| SCBRF-X6ARGAP-MMMR | PVC | MMCX - Male - Right Angle | Open | 50 | RG-178 | |
| SCBRF-X6ARMAP-SAMS-SAMS | PVC | SMA - Male - Straight | SMA - Male - Straight | 50 | RG-316 | |
| SCBRF-X6ARMAP-SAMS-SAFS | PVC | SMA - Male - Straight | SMA - Female - Straight | 50 | RG-316 | |
| SCBRF-X6ARMAP-SAMR-SAMR | PVC | SMA - Male - Right Angle | SMA - Male - Right Angle | 50 | RG-316 | |

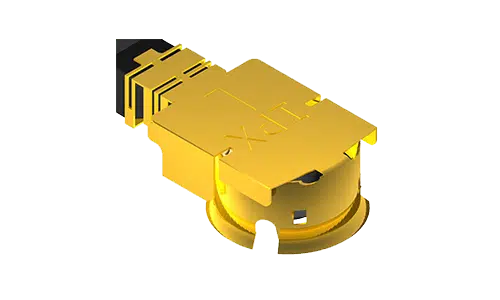

| SCBRF-X6AS1AP-MMMR-P1MR | PVC | MMCX - Male - Right Angle |  IPEX - Male Right Angle | 50 | 1.37 | |

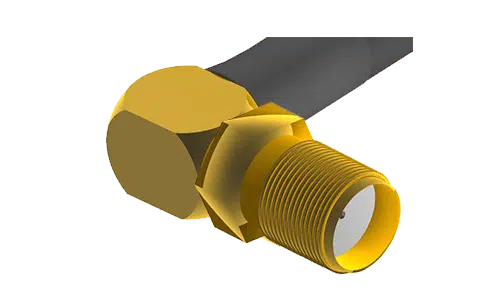

| SCBRF-X6AS1AP-RAFR-P1MR | PVC |  RP-SMA - Female - Right Angle | IPEX - Male Right Angle | 50 | 1.37 | |
| SCBRF-X6AS1AP-SAFS-P1MR | PVC | SMA - Female - Straight | - Male Right Angle | 50 | 1.32 | |

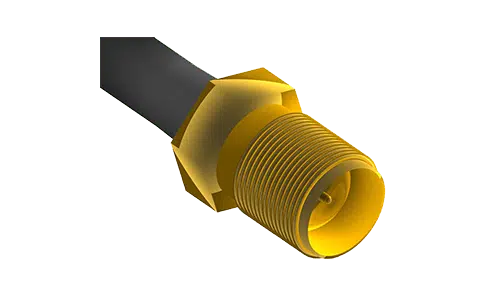

| SCBRF-X6AS2AF-RAFS-P1MR | FEP | RP-SMA - Female - Straight | IPEX - Male Right Angle | 50 | 1.32 | |
| SCBRF-X6AS3AF-SAFS-P1MR | FEP | SMA - Female - Straight | IPEX - Male Right Angle | 50 | 1.13 | |
| SCBRF-X6AS3AF-RAFS | FEP | RP-SMA - Female - Straight | Open | 50 | 1.13 | |
| SCBRF-X6AC2AF-SAMS-NYMS | FEP | SMA - Male - Straight | N-TYPE - Male - Straight | 50 | CFD-200 | |
