SAX324 Series – 3.2mm x 2.5mm Ceramic SMD 4 Pad Automotive Crystal

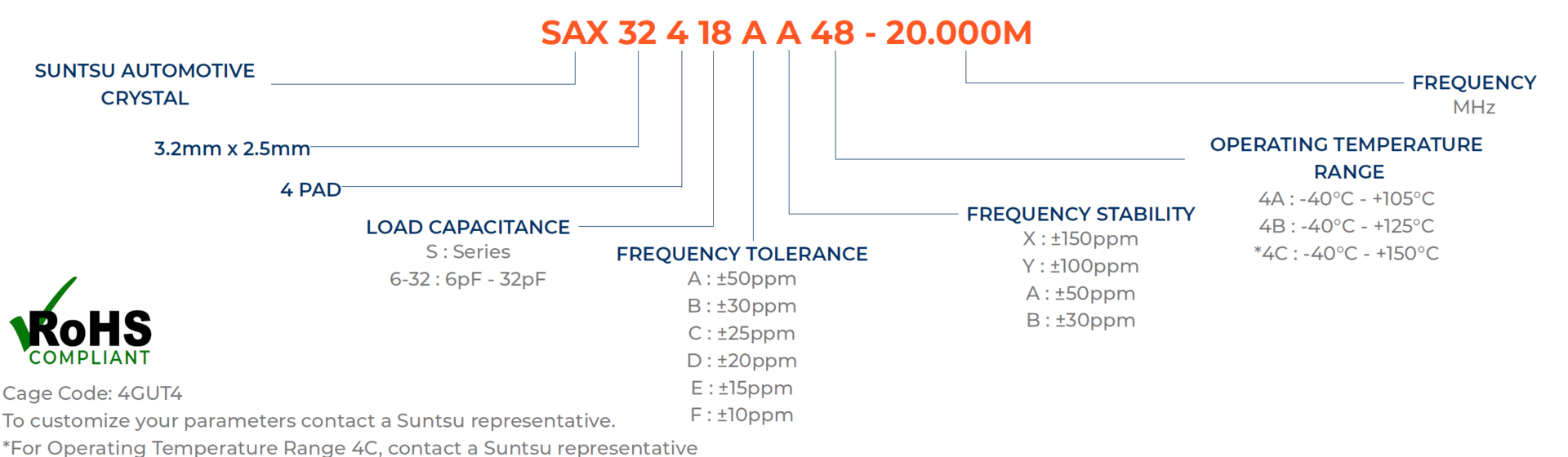

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 8 | 54 | AT-Cut Fundamental. | |
| Frequency Tolerance at +25ºC | ppm | -10 | 10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -30 | 30 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -3 | 3 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | 150 | See part numbering guide for options. | |
| Storage Temperature | °C | -40 | 150 | ||
| Load Capacitance | pF | 6 | 32 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 3 | |||
| Drive Level | μW | 50 | 100 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| Equivalent Series Resistance | |||||
| 8.000MHz ~ 11.999MHz | Ω | 400 | |||
| 12.000MHz ~ 19.999MHz | Ω | 150 | |||
| 20.000MHz ~ 29.999MHz | Ω | 80 | |||
| 30.000MHz ~ 54.000MHz | Ω | 60 |
Outline Drawing & Recommended Landed Pattern
