SXT114 Series – 1.6MM X 1.2MM Ceramic SMD 4 Pad Crystal

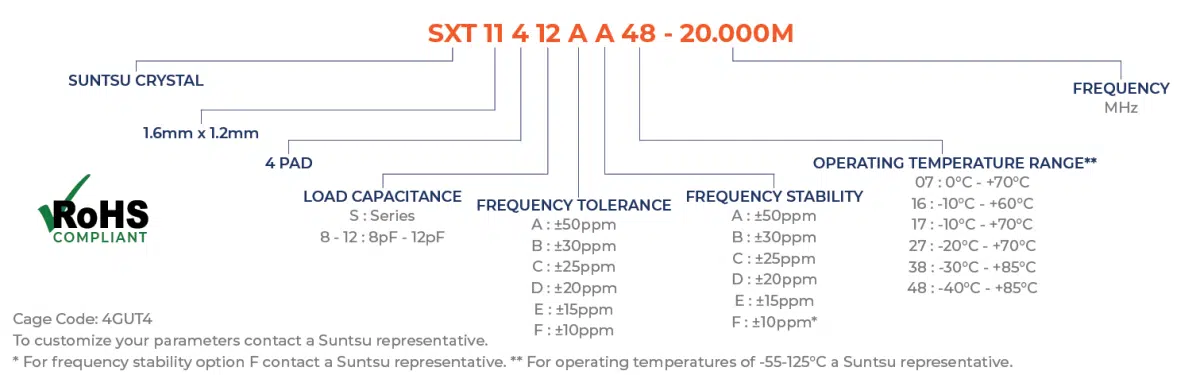

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 24 | 54 | AT-Cut Fundamental. | |
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -2 | +2 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -40 | +95 | ||
| Load Capacitance | pF | 8 | 12 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 3 | |||
| Drive Level | μW | 10 | 100 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| ESR - 24.000MHz ~ 29.999MHz | Ω | 150 | AT-Cut Fundamental | ||
| ESR - 30.000MHz ~ 54.000MHz | Ω | 100 | AT-Cut Fundamental |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
