SXT6G2 Series – 6.0MM X 3.5MM Glass Sealed SMD 2 Pad Crystal

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• Glass Sealed
• AT-Cut Fundamental
• Tape and Reel

Applications

• Microprocessors
• PCMCIA
• Communication
• Test Equipment

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• Glass Sealed
• AT-Cut Fundamental
• Tape and Reel

Applications

• Microprocessors
• PCMCIA
• Communication
• Test Equipment

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

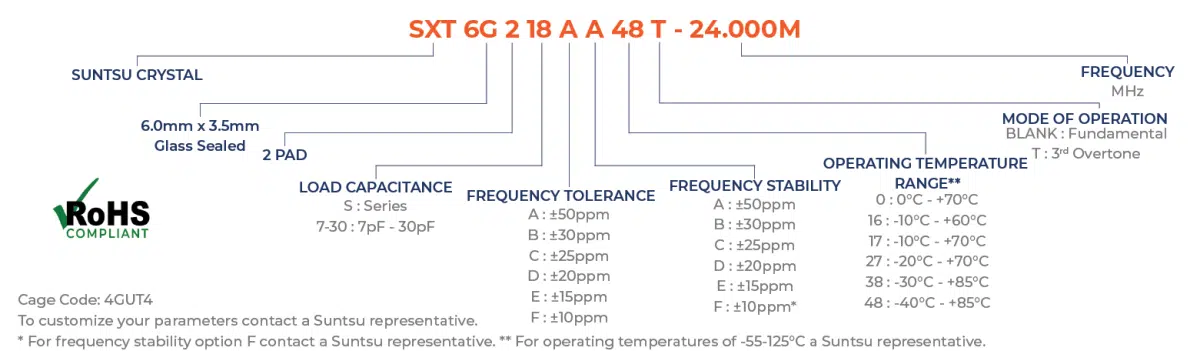

Part Numbering Guide - SXT6G2

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz850AT-Cut Fundamental.
Frequency RangeMHz40803rd Overtone
Frequency Tolerance at +25ºCppm-10+10See part numbering guide for options.
Frequency Stability vs. Op Tempppm-10+10See part numbering guide for options.
Frequency Stability vs. Agingppm-3+3First year @ +25ºC.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Load CapacitancepF730See part numbering guide for options.
Shunt CapacitancepF7
Drive LevelμW100500
Insulation Resistance500@ 100VDC ± 15V.
Equivalent Series Resistance
      8.000MHz ~ 9.999MHzΩ100AT-Cut Fundamental
      10.000MHz ~ 15.999MHzΩ60AT-Cut Fundamental
      16.000MHz ~ 50.000MHzΩ40AT-Cut Fundamental
      40.000MHz ~ 80.000MHzΩ703rd Overtone

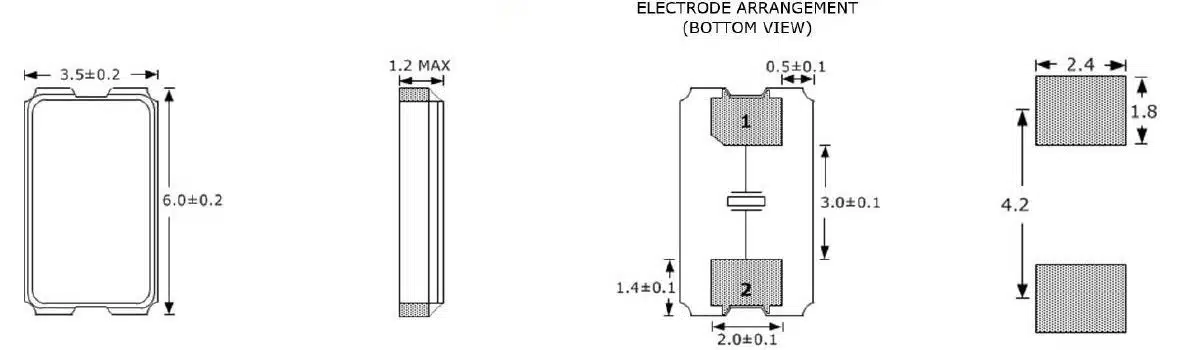

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SXT6G2 2D
