SXT834 Series – 8.0MM X 3.8MM Plastic SMD 4 Pad Crystal

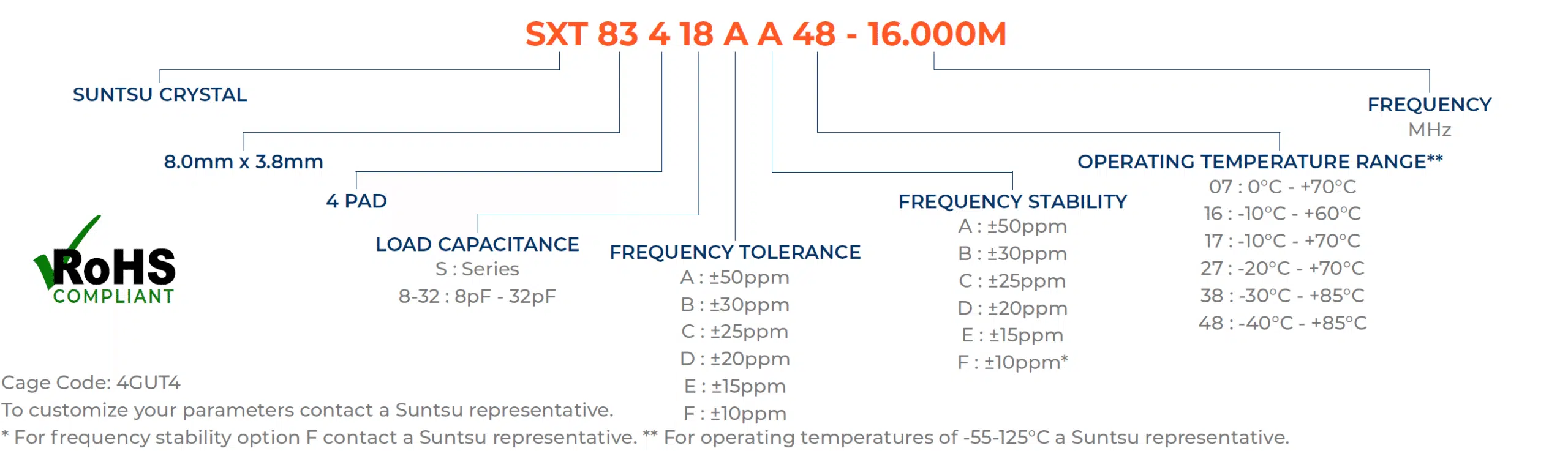

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 8.000 | 54.000 | ||
| Frequency Tolerance at +25ºC | ppm | -10 | 10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -10 | 10 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -5 | 5 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | 85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Load Capacitance | pF | 8 | 32 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 5 | |||
| Drive Level | μW | 100 | 200 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| Equivalent Series Resistance | |||||
| 8.000MHz ~ 9.999MHz | Ω | 200 | AT-Cut Fundamental | ||
| 10.000MHz ~ 11.999MHz | Ω | 150 | AT-Cut Fundamental | ||
| 12.000MHz ~ 15.999MHz | Ω | 100 | AT-Cut Fundamental | ||
| 16.000MHz ~ 19.999MHz | Ω | 80 | AT-Cut Fundamental | ||
| 20.000MHz ~ 29.999MHz | Ω | 60 | AT-Cut Fundamental | ||
| 30.000MHz ~ 54.000MHz | Ω | 40 | AT-Cut Fundamental |
Outline Drawing & Recommended Landed Pattern
