SXTHS2 Series – HC-49/US Crystal

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• RESISTANCE WELD
• AT-Cut or BT-Cut
• Bulk Packing

Applications

• Microprocessors
• Computers
• Modems
• Wireless Applications

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• RESISTANCE WELD
• AT-Cut or BT-Cut
• Bulk Packing

Applications

• Microprocessors
• Computers
• Modems
• Wireless Applications

Part Number Builder

Please choose your parameters to build a part number:

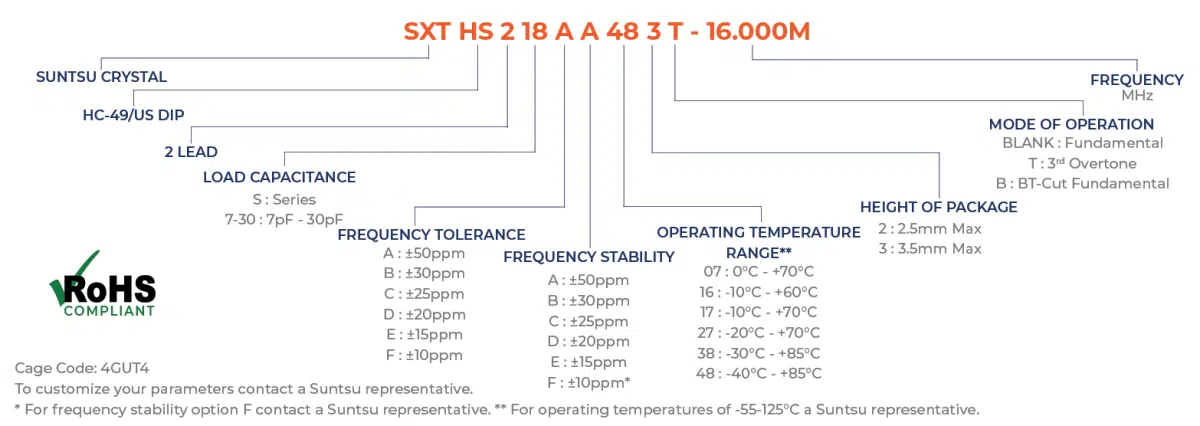

Part Numbering Guide

Suntsu Frequency Control SXTHS2

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz340AT-Cut Fundamental.
Frequency RangeMHz2050BT-Cut Fundamental
Frequency RangeMHz24903rd Overtone
Frequency Tolerance at +25ºCppm-10+10See part numbering guide for options.
Frequency Stability vs. Op Tempppm-10+10See part numbering guide for options.
Frequency Stability vs. Agingppm-3+3First year @ +25ºC.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-40+125
Load CapacitancepF730See part numbering guide for options.
Shunt CapacitancepF7
Drive LevelμW100500
Insulation Resistance500@ 100VDC ± 15V.
Equivalent Series Resistance
      3.000MHz ~ 4.999MHzΩ180AT-Cut Fundamental
      5.000MHz ~ 5.999MHzΩ120AT-Cut Fundamental
      6.000MHz ~ 7.999MHzΩ100AT-Cut Fundamental
      8.000MHz ~ 8.999MHzΩ80AT-Cut Fundamental
      9.000MHz ~ 19.999MHzΩ60AT-Cut Fundamental
      20.000MHz ~ 40.000MHzΩ30AT-Cut Fundamental
      20.000MHz ~ 50.000MHzΩ40BT-Cut Fundamental
      24.000MHz ~ 39.999MHzΩ1003rd Overtone
      40.000MHz ~ 90.000MHzΩ803rd Overtone

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SXTHS2 2D
