SOC09C Series – 9.7MM X 7.4MM FR4 PCB SMD 6 Pad CMOS (VC)OCXO

3D Product View

3D View

Features

• ±20ppb (Frequency Stability) Available
• CMOS
• (VC)OCXO
• Small Package

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

3D Product View

3D View

Features

• ±20ppb (Frequency Stability) Available
• CMOS
• (VC)OCXO
• Small Package

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

Part Number Builder

Please choose your parameters to build a part number:

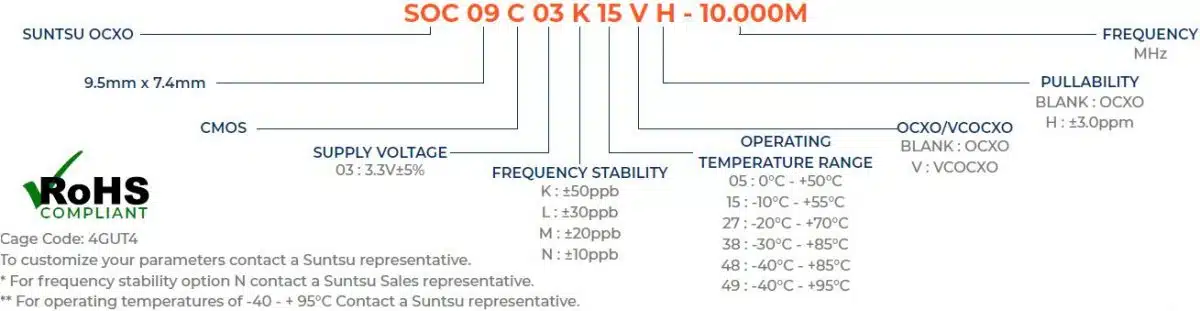

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1040
Frequency Tolerance at +25ºCppm-0.5+0.5
Freq. Stability vs. Op Temp.ppb-10+10See part numbering guide for options.
Freq. Stability vs. Supply Voltageppb-10+10VDD±5% Change
Freq. Stability vs. Loadppb-1+1±5% Change
Freq. Stability vs. Aging/Yearppm-1+1
Operating Temperature°C-40+95See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD)V3.1353.33.465
Power Consumption At Turn OnW2.0
Power Consumption At 25°CW0.5
Current Voltage (VC)V03.3
Control Middle VoltageV1.65
Pullabilityppm±3.0
Linearity%10
VC Input Impedance50
Deviation SlopePositive
Output Logic (CMOS)pF15
Output Logic Level - High (VOH)V0.9*VDD
Output Logic Level - Low (VOL)V0.1*VDD
Rise Time (TR) And Fall Time (TF)nS5
Symmetry (Duty Cycle)%455055
Start-Up Timems3
Warm-Up TimeMins3
Phase Noise (Typical) 1Hz OffsetdBc/Hz-60
Phase Noise (Typical) 100Hz OffsetdBc/Hz-120
Phase Noise (Typical) 1KHz OffsetdBc/Hz-150

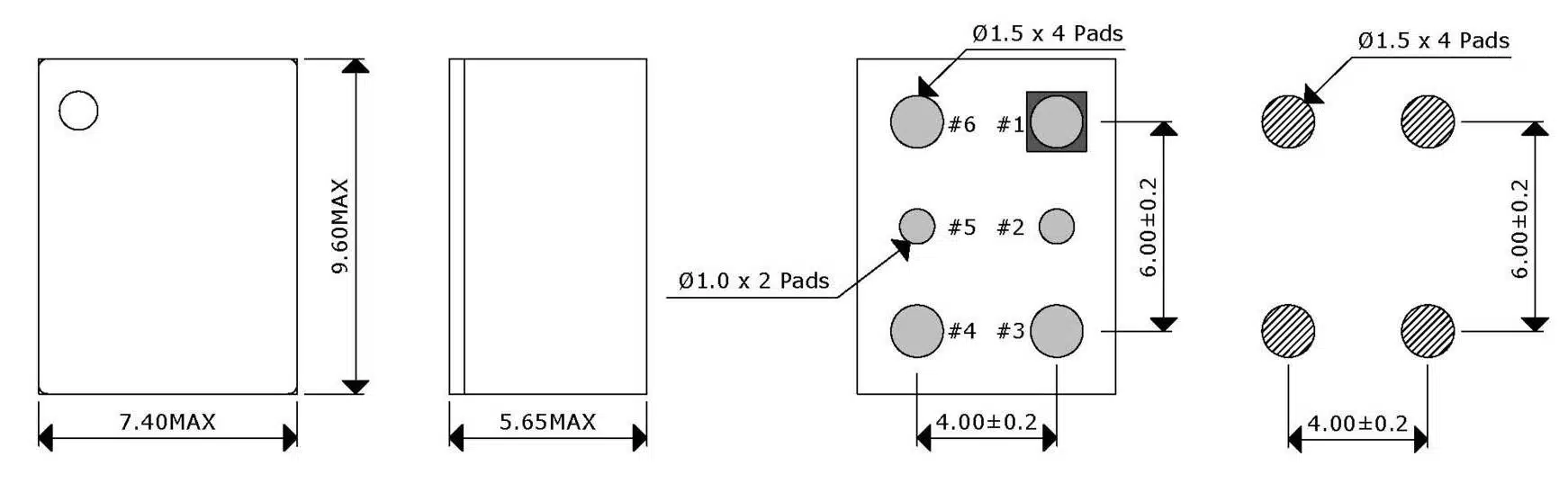

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
