SOC15C Series – 15.4MM X 10.6MM FR4 PCB SMD 6 Pad CMOS OCXO

3D Product View

3D View

Features

• ±5ppb (Frequency Stability) Available
• CMOS
• OCXO
• Small Package

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

3D Product View

3D View

Features

• ±5ppb (Frequency Stability) Available
• CMOS
• OCXO
• Small Package

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

Part Number Builder

Please choose your parameters to build a part number:

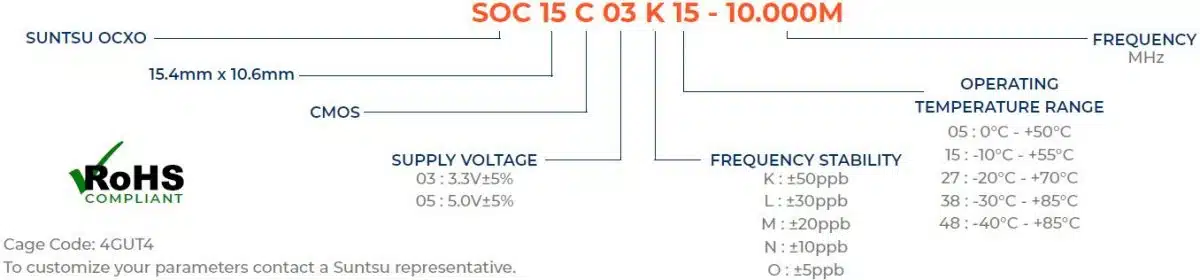

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1020
Frequency Tolerance at +25ºCppm-0.2+0.2
Freq. Stability vs. Op Temp.ppb-5+5See part numbering guide for options.
Freq. Stability vs. Supply Voltageppb-2+2VDD±5% Change
Freq. Stability vs. Loadppb-2+2±5% Change
Freq. Stability vs. Aging/Dayppm-1+1
Freq. Stability vs. Aging/Yearppm-0.1+0.1
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+105
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Supply Voltage (VDD) - 5.0V OptionV4.755.05.25
Power Consumption At Turn OnmA700
Power Consumption At 25°CmA300
Output Logic (CMOS)pF15
Output Logic Level - High (VOH)V2.4
Output Logic Level - Low (VOL)V0.4
Rise Time (TR) And Fall Time (TF)nS10
Symmetry (Duty Cycle)%455055
Start-Up Timems3
Warm-Up TimeMins3
Phase Noise (Typical) 10Hz OffsetdBc/Hz-105-95
Phase Noise (Typical) 100Hz OffsetdBc/Hz-130-120
Phase Noise (Typical) 11kHz OffsetdBc/Hz-150-140
Phase Noise (Typical) 10kHz OffsetdBc/Hz-150-145
Phase Noise (Typical) 100kHz OffsetdBc/Hz-155-150
Phase Noise (Typical) 1MHz OffsetdBc/Hz-155-150

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
