SOC36C Series – 36.1MM X 27.2MM Metal DIP CMOS OCXO

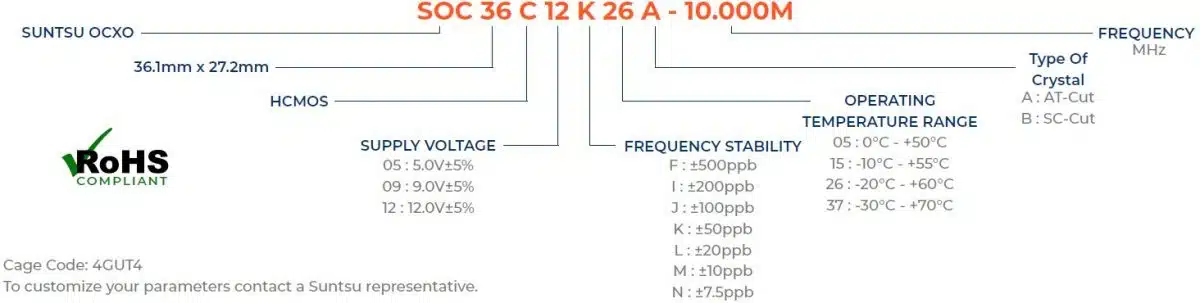

Part Numbering Guide
![](https://suntsu.com/wp-content/uploads/2020/10/SOC36C-PARTN-1200x303.jpg)
Electrical Parameters
Parameters | Units | Min | Typical | Max | Remarks |
---|---|---|---|---|---|
Frequency Range | MHz | 5 | 100 | ||
Frequency Tolerance at +25ºC | ppb | -100 | +100 | ||
Freq. Stability vs. Op Temp. | ppb | -10 | +10 | See part numbering guide for options. | |
Freq. Stability vs. Supply Voltage | ppb | -2 | +2 | VDD±5% Change | |
Freq. Stability vs. Load | ppb | -2 | +2 | ±10% Change | |
Freq. Stability vs. Aging/Year | ppb | -50 | +50 | See part numbering guide for options. | |
Operating Temperature | °C | -30 | +70 | See part numbering guide for options. | |
Storage Temperature | °C | -45 | +85 | ||
Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
Supply Voltage (VDD) - 9.0V Option | V | 8.550 | 9.0 | 9.450 | |
Supply Voltage (VDD) - 12.0V Option | V | 11.400 | 12.0 | 12.600 | |
Power Consumption At Turn On | W | 4.5 | |||
Power Consumption At 25°C | W | 1.5 | |||
Control Voltage (VC) | V | 0.0 | 5.0 | ||
Control Middle Voltage | V | 2.5 | |||
Pullability (AT-Cut) | ppm | ±3.0 | ±5.0 | ±8.0 | AT-Cut |
Pullability (SC-Cut) | ppm | ±0.5 | ±2.0 | SC-Cut | |
Linearity | % | 10 | |||
VC Input Impedance | KΩ | 50 | |||
Deviation Slope | Positive | ||||
Output Logic (HCMOS) | pF | 15 | |||
Output Logic Level - High (VOH) | V | 0.9*VDD | |||
Output Logic Level - Low (VOL) | V | 0.1*VDD | |||
Reference Voltage Output (Vref) | V | 4.1 | 53 | 4.1V at VDD 5.0V, 5V at VDD 12V | |
Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
Warm-Up Time | ppb | -100 | +100 | At 25°C After 5Mins. |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
![](https://suntsu.com/wp-content/uploads/2020/10/SOC36C-2d.jpg)
![](https://suntsu.com/wp-content/uploads/2020/10/SOC36C-Table.jpg)
