SOC38C Series – 38.1MM X 38.1MM Metal DIP CMOS OCXO

3D Product View

3D View

Features

• ±10ppb (Frequency Stability) Available
• HCMOS/TTL
• OCXO

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

3D Product View

3D View

Features

• ±10ppb (Frequency Stability) Available
• HCMOS/TTL
• OCXO

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

Part Number Builder

Please choose your parameters to build a part number:

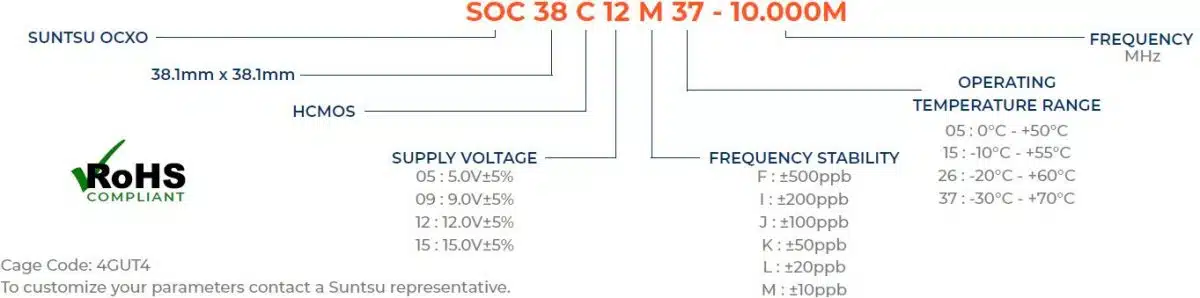

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz5100
Frequency Tolerance at +25ºCppb-100+100
Freq. Stability vs. Op Temp.ppb-10+10See part numbering guide for options.
Freq. Stability vs. Supply Voltageppb-2+2VDD±5% Change
Freq. Stability vs. Loadppb-2+2±10% Change
Freq. Stability vs. Aging/Yearppb-50+50See part numbering guide for options.
Operating Temperature°C-30+70See part numbering guide for options.
Storage Temperature°C-45+85
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250
Supply Voltage (VDD) - 9.0V OptionV8.5509.09.450
Supply Voltage (VDD) - 12.0V OptionV11.40012.012.600
Supply Voltage (VDD) - 15.0V OptionV14.25015.015.750
Power Consumption At Turn OnW4.5
Power Consumption At 25°CW1.8
Control Voltage (VC)V0.05.0
Control Middle VoltageV2.5
Pullabilityppm±0.7
Linearity%10
VC Input Impedance50
Deviation SlopePositive
Output Logic (HCMOS)pF15
Output Logic Level - High (VOH)V0.9*VDD
Output Logic Level - Low (VOL)V0.1*VDD
Rise Time (TR) And Fall Time (TF)NS5
Symmetry (Duty Cycle)%455055
Warm-Up Timeppb-10+10At 25°C After 5Mins.

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
