SOCFSS Series – 20.7MM X 13.1MM Metal Full Size DIP Sinewave OCXO

3D Product View

3D View

Features

• ±50ppb (Frequency Stability) Available
• Sinewave
• OCXO

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

3D Product View

3D View

Features

• ±50ppb (Frequency Stability) Available
• Sinewave
• OCXO

Applications

• Military Communication Equipment
• Base Stations
• Test Equipment
• Synthesizers
• Digital Switching

Part Number Builder

Please choose your parameters to build a part number:

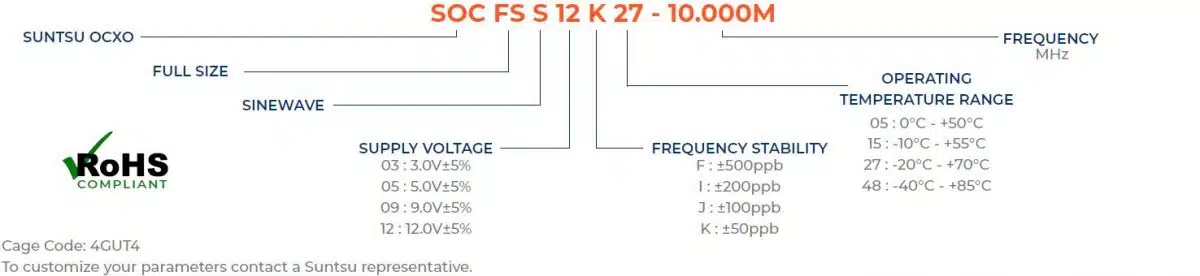

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1080
Frequency Tolerance at +25ºCppb-100+100
Freq. Stability vs. Op Temp.ppb-50+50See part numbering guide for options.
Freq. Stability vs. Supply Voltageppb-20+20VDD±5% Change
Freq. Stability vs. Loadppb-20+20±10% Change
Freq. Stability vs. Aging/Yearppm-4.6+4.6
Operating Temperature°C-20+60See part numbering guide for options.
Storage Temperature°C-45+85
Supply Voltage (VDD)VVDD-5%VDDVDD+5%
Power Consumption At Turn OnW2.5
Power Consumption At 25°CW1.0
Control Voltage (VC)V0.54.5
Control Middle VoltageV2.5
Pullabilityppm±3.0±5.0±8.0
Linearity%10
VC Input Impedance50
Deviation SlopePositive
Output Logic (SINEWAVE) LoadΩ50
Output Logic WaveformdBm7
Output Logic Spurious (Harmonic)dBc-30
Output Logic Spurious (Non-Harmonic)dBc-70
Reference Voltage Output (Vref)V4.55
Symmetry (Duty Cycle)%455055
Start-Up Timems3At 25°C After 5Mins.
Warm-Up Timeppb-100+100

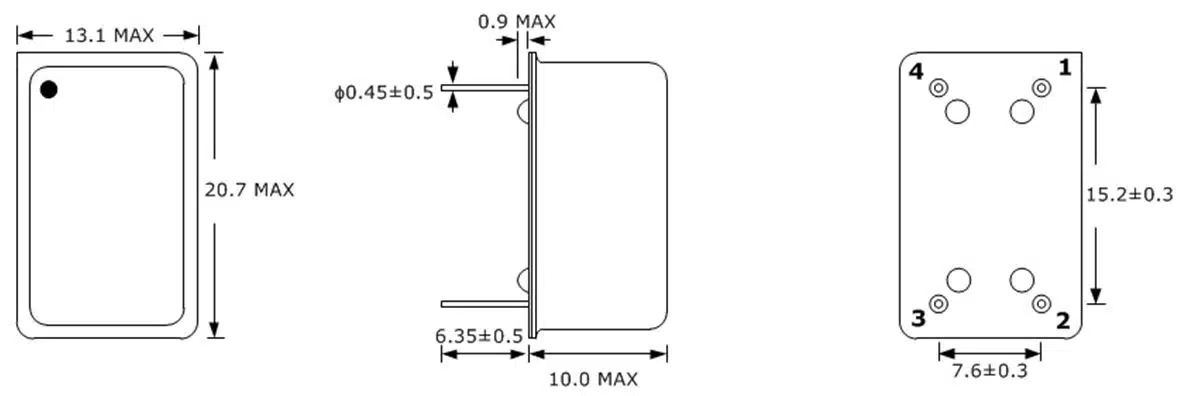

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
