SSTFSK Series – 18.3MM X 11.7MM Metal Full Size Dip Stratum 3 Clipped Sinewave (VC)TCXO

3D Product View

3D View

Features

• Stratum 3 (Overall ±4.6ppm)
• Clipped Sinewave
• (VC)TCXO

Applications

• Base Stations
• Stratum 3

3D Product View

3D View

Features

• Stratum 3 (Overall ±4.6ppm)
• Clipped Sinewave
• (VC)TCXO

Applications

• Base Stations
• Stratum 3

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

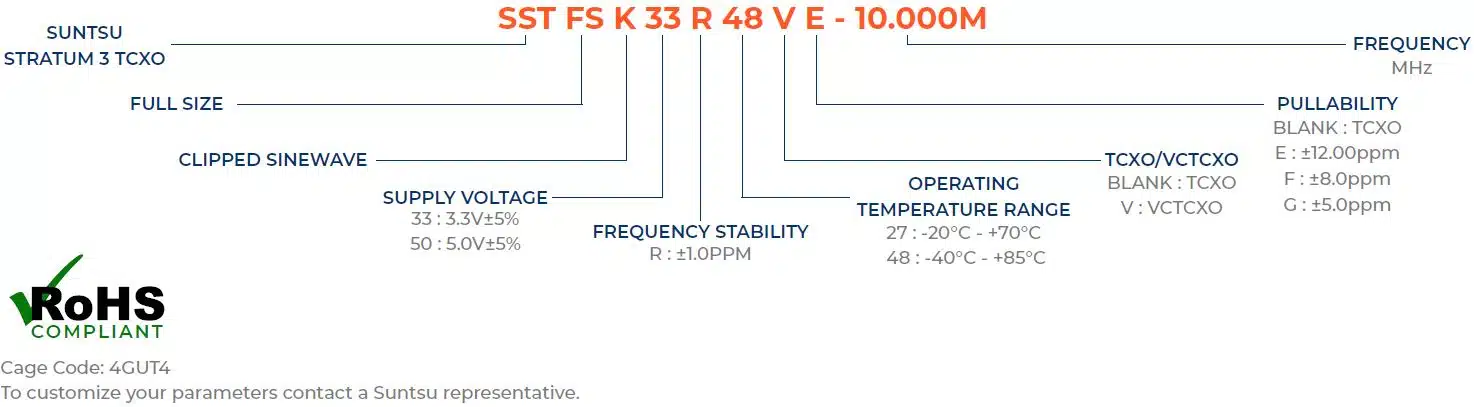

Part Numbering Guide - SSTFSK

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz240
Frequency Tolerance at +25ºCppm-0.3+0.3
Freq. Stability vs. Op Temp.ppm-1.0+1.0
Freq. Stability vs. Supply Voltageppm-0.1+0.1VDD ±5% Change
Freq. Stability vs. Loadppm-0.1+0.1±5% Change
Freq. Stability vs. Aging/Yearppm-1.0+1.01 year, ±2.6ppm for 10years
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250
Current (IDD)mA20
Current Voltage (VC, VCTCXO) - 3.3V OptionV0.33.0
Current Voltage (VC, VCTCXO) 5.0V OptionV0.54.5
Pullability (VCTCXO)ppm±5.0±12.0See part numbering guide for options.
Linearity (VCTCXO)%20
Output Load (Clipped Sinewave)kΩ//pF10//10
Output Logic Levels VP-P0.8
Rise (TR) and Fall (TF) Timens10
Symmetry (Duty Cycle)%405060
Start-Up Timems10
Frequency Adjustmentppm3
Phase Noise (Typical) 10Hz OffsetdBc/Hz-80
Phase Noise (Typical) 100Hz OffsetdBc/Hz-120
Phase Noise (Typical) 1KHz OffsetdBc/Hz-135
Phase Noise (Typical) 10KHz OffsetdBc/Hz-140
Phase Noise (Typical) 100KHz OffsetdBc/Hz-145

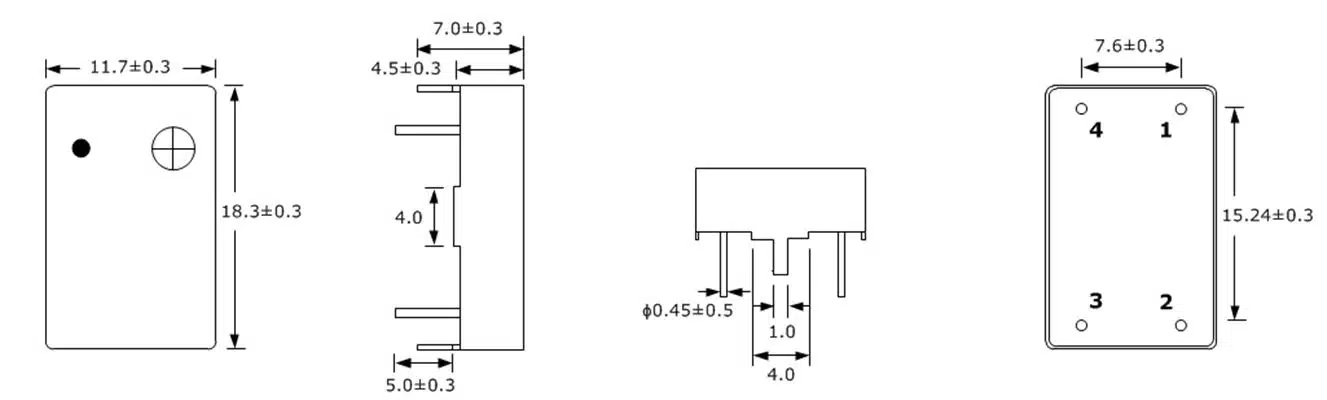

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SSTFSK 2d
SSTFSK Table
