STC53K Series – 5.0MM X 3.2MM Ceramic SMD 4 Pad Clipped Sinewave (VC)TCXO

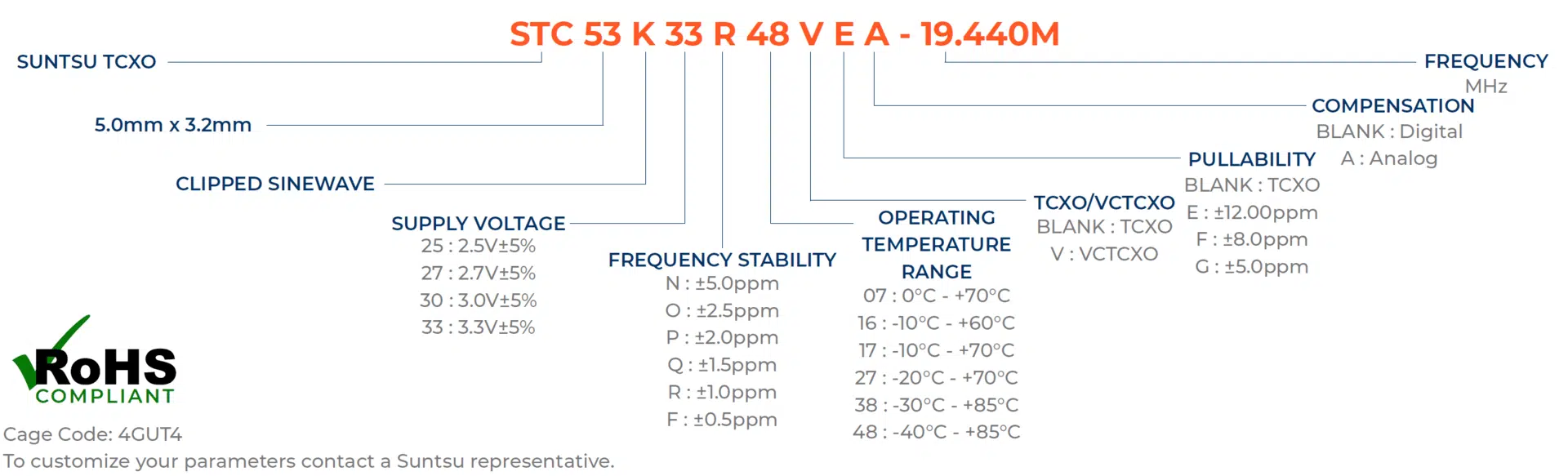

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 6 | 40 | ||
| Frequency Tolerance at +25ºC | ppm | -1.5 | +1.5 | 1 hour after reflow | |
| Freq. Stability vs. Op Temp. | ppm | -0.5 | +0.5 | See part numbering guide for options. | |
| Freq. Stability vs. Supply Voltage | ppm | -0.3 | +0.3 | VDD±5% Change | |
| Freq. Stability vs. Load | ppm | -0.2 | +0.2 | ±5% Change | |
| Freq. Stability vs. Aging/Year | ppm | -1.0 | +1.0 | 1 Year, ±3.1ppm for 10 Years | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) | V | 3.135 | 3.3 | 3.465 | See part numbering guide for options. |
| Current (IDD) | mA | 2 | |||
| Current Voltage (VC, VCTCXO) | V | 0 | VDD | Center Voltage : VDD*50% | |
| Pullability (VCTCXO) | ppm | ±5.0 | ±12.0 | See part numbering guide for options. | |
| Linearity (VCTCXO) | % | 10 | |||
| Output Load (Clipped Sinewave) | kΩ//pF | 10//10 | |||
| Output Logic Levels | VP-P | 0.8 | |||
| Symmetry (Duty Cycle) | % | 40 | 50 | 60 | |
| Start-Up Time | ms | 3 | |||
| VC Input Impedance (VCTCXO) | kΩ | 100 | |||
| Phase Noise (Typical) 10Hz Offset | dBc/Hz | -85 | |||
| Phase Noise (Typical) 100Hz Offset | dBc/Hz | -115 | |||
| Phase Noise (Typical) 1KHz Offset | dBc/Hz | -135 | |||
| Phase Noise (Typical) 10KHz Offset | dBc/Hz | -145 | |||
| Phase Noise (Typical) 100KHz Offset | dBc/Hz | -150 |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
