SQV53C Series – 5.0MM X 3.2MM Ceramic SMD Quick Turn 6 Pad CMOS VCXO

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Programmed VCXO
• Tape and Reel

Applications

• Micro Processors
• FPGA
• Storage Area/Networking
• Digital Video
• Portable Computers

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Programmed VCXO
• Tape and Reel

Applications

• Micro Processors
• FPGA
• Storage Area/Networking
• Digital Video
• Portable Computers

Part Number Builder

Please choose your parameters to build a part number:

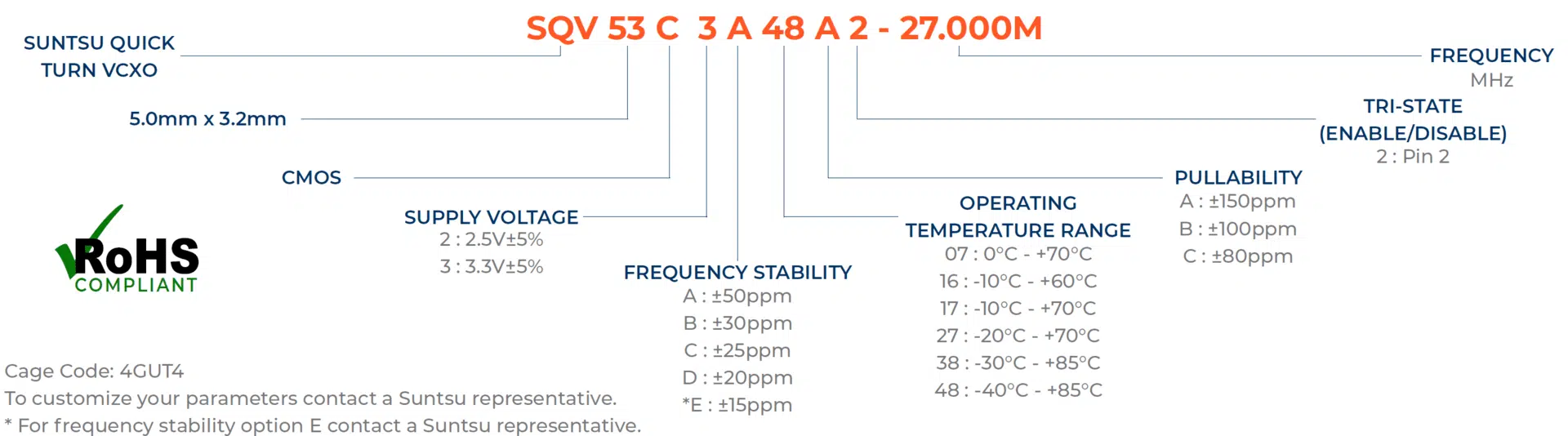

Part Numbering Guide

sqv53c-part-numbering-guide2022

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz81500
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Current (IDD) - 2.5V OptionmA35
Current (IDD) - 3.3V OptionmA45
Current Voltage (VC) 2.5V OptionV02.5
Current Voltage (VC) 3.3V OptionV03.3
Pullabilityppm±50±100±150See part numbering guide for options.
Linearity%10
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Timens3
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage(3.3V) - EnableV0.7*VDDNo Connection
Tri-State Input Voltage(3.3V) - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps0.71.5

Outline Drawing & Recommended Landed Pattern

sqv53c-outline-drawing2022
