SVC32C Series – 3.2MM X 2.5MM Ceramic SMD 4 Pad CMOS VCXO

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Miniature Package
• CMOS
• Fundamental
• Tape and Reel

Applications

• Digital TV
• DVD, STB
• PCMIA, XDSL
• Broadband Access
• Base Stations

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Miniature Package
• CMOS
• Fundamental
• Tape and Reel

Applications

• Digital TV
• DVD, STB
• PCMIA, XDSL
• Broadband Access
• Base Stations

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

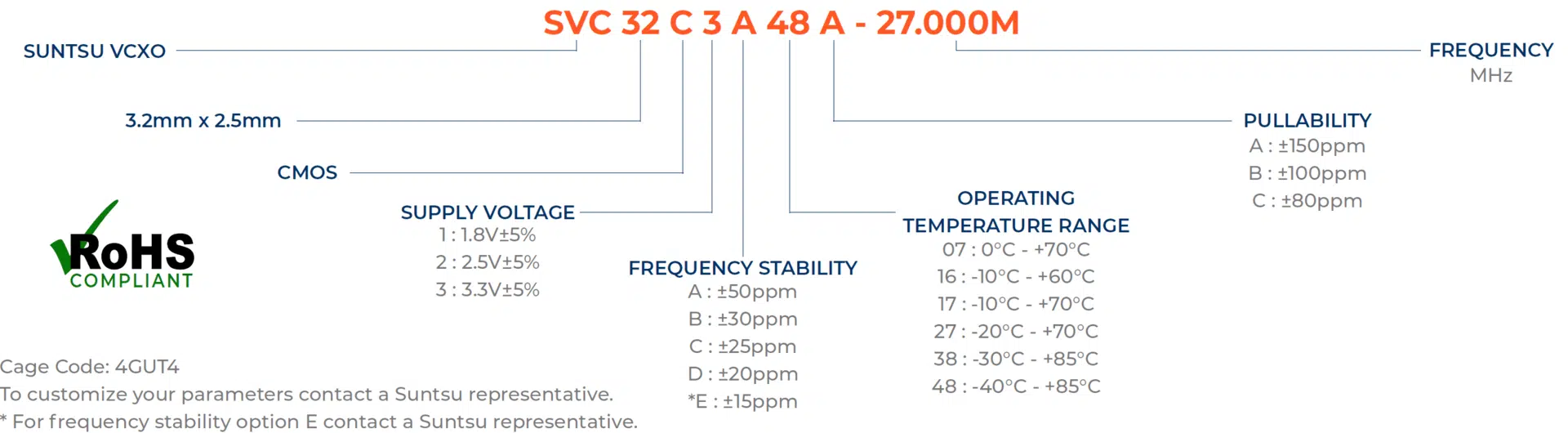

svc32c part-numbering-guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz155
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.7101.871.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Current (IDD) - 1.8V OptionmA10
Current (IDD) - 2.5V OptionmA15
Current (IDD) - 3.3V OptionmA25
Current Voltage (VC) 1.8V OptionV0.151.65
Current Voltage (VC) 2.5V OptionV0.22.3
Current Voltage (VC) 3.3V OptionV0.33.0
Pullabilityppm±50±100±150See part numbering guide for options.
Linearity%10
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Timens5
Symmetry (Duty Cycle)%455055
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SVC32C 2D
SVC32C Table
