SVCF4C Series – 14.3MM X 8.7MM FR4 PCB 4 Pad CMOS VCXO

3D Product View

3D View

Features

• ±25ppm (Frequency Stability) Available
• Ultra-Low Phase Noise and Jitter
• High-Q Crystal and 3rd Overtone
• Tape and Reel

Applications

• High Definition TV
• Avionics
• Low Phase Signal Sources
• Test and Measurement Equipment

3D Product View

3D View

Features

• ±25ppm (Frequency Stability) Available
• Ultra-Low Phase Noise and Jitter
• High-Q Crystal and 3rd Overtone
• Tape and Reel

Applications

• High Definition TV
• Avionics
• Low Phase Signal Sources
• Test and Measurement Equipment

Part Number Builder

Please choose your parameters to build a part number:

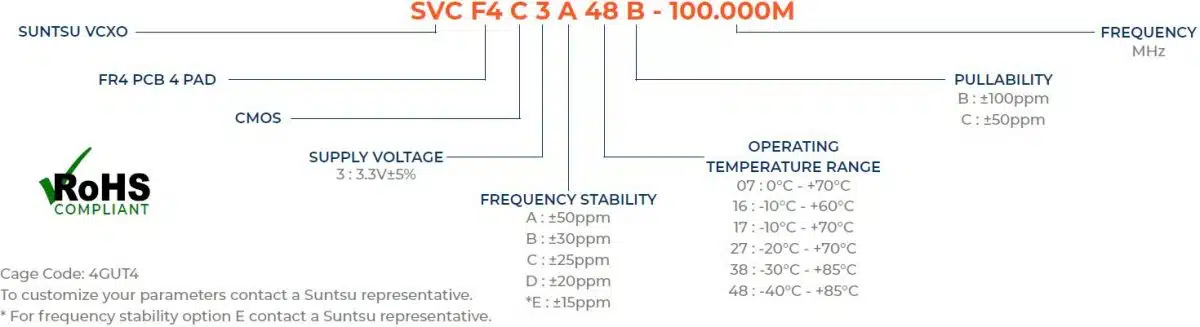

Part Numbering Guide

Part Numbering Guide - SVCF4C

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz10130
Frequency Stability (Overall)ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-45+90
Supply Voltage (VDD)V3.1353.33.465Available with AT-Cut Fundamental and PLL.
Current (IDD)mA2530
Current Voltage (VC)V0.03.3
Input Impedance51
Modulation BandwidthKHz10@-3dB
Pullabilityppm±50±100See part numbering guide for options.
Linearity%10
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Timens3
Symmetry (Duty Cycle)%455055
Start-Up Timems10
Agingppm-3.0+3.0First year @ +25ºC.
Phase Jitter (12kHz ~ 20MHz)ps0.11.5

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.

SVCF4C 2D
SVCF4C Table
