SVCF6L Series – 14.0MM X 8.7MM FR4 PCB 6 Pad LVDS VCXO

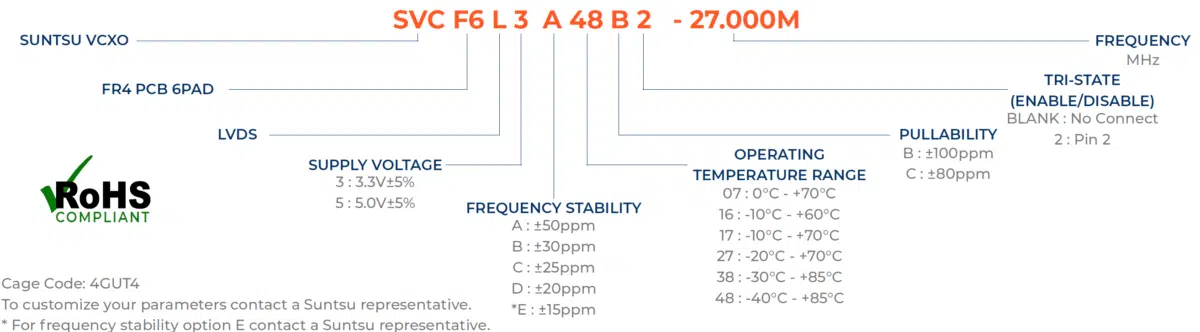

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 10 | 800 | ||
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -45 | +90 | ||
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
| Current (IDD) - 3.3V Option | mA | 70 | |||
| Current (IDD) - 5.0V Option | mA | 100 | |||
| Current Voltage (VC) 3.3V Option | V | 0.15 | 3.15 | ||
| Current Voltage (VC) 5.0V Option | V | 0 | 5.0 | ||
| Pullability | ppm | ±50 | ±100 | See part numbering guide for options. | |
| Input Impedance | kΩ | 51 | |||
| Modulation Bandwidth | kHz | 10 | @-3dB | ||
| Linearity | % | 10 | |||
| Output Load (LVDS) | Ω | 100 | |||
| Output Logic Levels High (VOH) | V | 1.43 | 1.6 | ||
| Output Logic Levels Low (VOL) | V | 0.9 | 1.1 | ||
| Differential Output Voltage (VOD) | mV | 247 | 330 | 454 | |
| Differential Output Voltage (DVOD) | mV | 50 | |||
| Offset Voltage (VOS) | V | 1.125 | 1.250 | 1.375 | |
| Offset Error (DVOS) | mV | 50 | |||
| Rise (TR) and Fall (TF) Time | ns | 1 | Measure at 20% to 80% of Waveform. | ||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage(3.3V) - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage(3.3V) - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 10 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 1 |

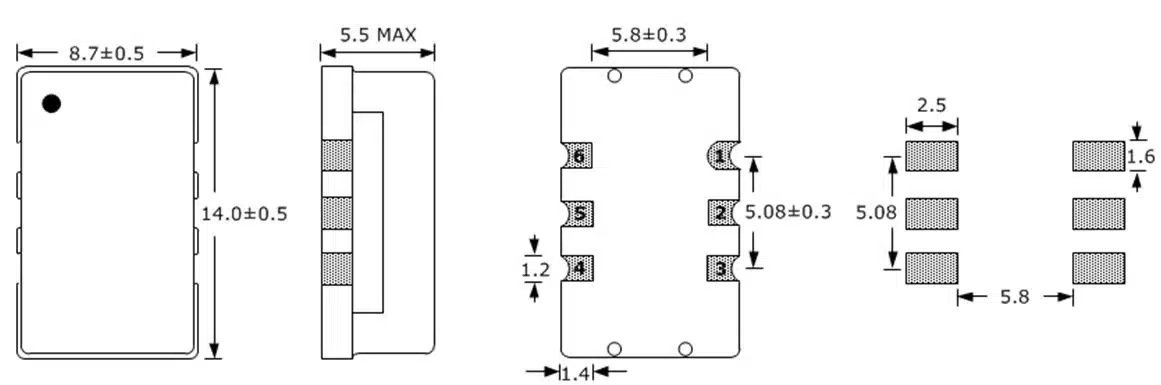

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
