Epson MC-406 and MA-406 crystals will be obsolete by the end of 2020 [3]. The EOL status of Epson’s MC-406 and MA-406 crystals will leave current users searching for substitutes. Fortunately, Suntsu is offering a drop-in replacement with our newest crystals: SWS144 and SXT144.
Below is a comparison of SWS144 and SXT144 vs MC-406 and MA-406 crystals.
• The SWS144 has identical dimensions and electrical parameters as the MC-406.
• The SXT144 is a bit larger than the MA-406, but the pad size and layout remain the same.
Some of their key features are listed below.

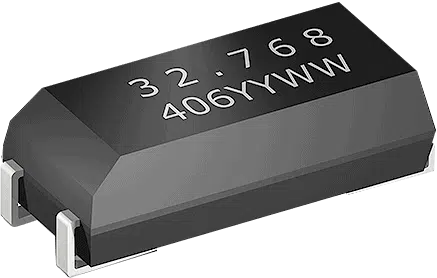

SUNTSU SWS144
• Frequency of 32.768kHz
• Package size of 10.41×4.06mm
• Frequency tolerance of ±10ppm or ±20ppm
• Equivalent series resistance of 50kΩ
• Operating temperature range from -40°C to 85°C
• Click on the button below to access our datasheets.
SUNTSU SXT144
• Frequency range of 3.579MHz ~ 27MHz
• Package size of 12.5×4.6mm
• Frequency tolerance of ±15ppm ~ ±50ppm
• Operating temperature range from -40°C to 85°C
• Click on the button below to access our datasheets.
.
Our Director of Engineering, KH Mun, explains – “these products were designed so our customers will be able to use them without changing their PCB.”
For more information, contact a Suntsu sales representative.
Epson’s EOL Notice
Update: The MC-406 and MA-406 completed their Epson end-of-life transitions years ago. The SWS144 and SXT144 remain available as replacements; contact us for current availability and equivalents.
References
[1] Epson. “FY2020 EOL products notice” Available at: https://media.digikey.com/pdf/PCNs/Epson/20-012E_24-Jun-2020.pdf
[2] Epson. “EOL Notice of Mold-type/Cylinder-type MHz range Crystal Unit” Available at: https://media.digikey.com/pdf/PCNs/Epson/19-029E_EOL_Notice_23-Mar-2020.pdf
[3] Epson. “Epson Timing Devices Product Configuration Guide” Available at: https://www.epsondevice.com/crystal/en/support/product-no/pdf/pcs.pdf
