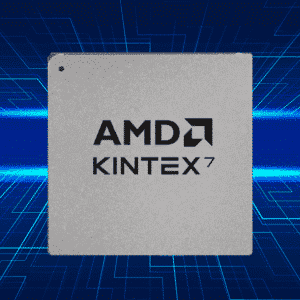

AMD Kintex-7 FPGAs

Xilinx’s Kintex-7 FPGAs are designed to offer the best price-performance ratio, achieving a twofold improvement over the previous generation. This makes them a compelling alternative to ASICs and ASSPs, combining high performance with power efficiency. The Kintex-7 family supports a wide range of applications, from high-speed data processing to advanced signal processing tasks, making them versatile for many industries. In this post, we will examine the key features, capabilities, applications, and benefits of Kintex-7 FPGAs, emphasizing the Kintex-7Q variant. We will also delve into real-world cases showcasing how these FPGAs can enhance performance while reducing costs, enabling developers to innovate more effectively.

Key Features and Capabilities

Kintex-7 FPGAs utilize advanced, high-performance, low-power (HPL), 28nm high-k metal gate (HKMG) process technology. This cutting-edge technology allows these FPGAs to deliver remarkable system performance while consuming 50% less power compared to earlier generations.

High Logic Capacity

The Kintex-7 series of Field Programmable Gate Arrays (FPGAs) features up to 1.9 million logic cells, enabling the handling of complex designs for applications ranging from digital signal processing to system-on-chip configurations.

Fast Processing

Built with advanced logic technology, Kintex-7 FPGAs incorporate 6-input Look-Up Tables (LUTs) that significantly enhance processing speed. The architecture includes Digital Signal Processing (DSP) slices with 25x18 multipliers and 48-bit accumulators, excelling in high-performance filtering and signal processing tasks.

High Memory Bandwidth

Kintex-7 FPGAs provide 36Kb dual-port block RAM integrated with FIFO logic, facilitating efficient data buffering. This high memory bandwidth minimizes bottleneck issues in data-intensive operations.

High-Speed Connectivity

These FPGAs support high-speed serial communications through multi-gigabit transceivers, achieving data rates of 600 Mb/s to 28.05 Gb/s. Additionally, the integrated PCI Express block allows efficient high-speed interfacing with other systems.

Analog Interface

Equipped with a user-configurable analog interface (XADC), Kintex-7 FPGAs feature dual 12-bit analog-to-digital converters operating at 1 megasample per second (MSPS) for precise analog signal processing. They also have on-chip thermal and supply sensors for enhanced reliability.

Clock Management

Kintex-7 FPGAs feature advanced clock management tiles (CMTs) with phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks, achieving precise clocking with minimal jitter for synchronized operations.

Power Efficiency

Designed for performance and energy conservation, Kintex-7 FPGAs utilize a 1.0V core voltage process technology, with an optional 0.9V setting for even lower power consumption, making them ideal for portable applications where energy savings are crucial.

Kintex-7Q FPGAs

The Kintex-7Q FPGAs are advanced, defense-grade variants of the renowned Kintex-7 family, meticulously crafted to meet the rigorous demands of military and defense applications. These FPGAs not only retain the exceptional price-performance ratio for which the Kintex-7 series is known but also come equipped with specialized features designed to endure harsh environmental conditions and ensure high reliability in critical systems. This combination makes them ideal for applications that require both performance and durability in challenging scenarios.

Comparison Between Kintex-7 and Kintex-7Q FPGAs

While both Kintex-7 and Kintex-7Q FPGAs share the same underlying architecture, offering a balance of price and performance, they differ in their target applications and additional features.

Reliability and Ruggedization: Kintex-7Q FPGAs are designed for high-reliability applications, ideal for the demanding environments of defense and aerospace. Their ruggedized packages ensure effective operation under harsh conditions, promoting longevity and performance despite physical stressors.
Temperature Range: A key feature of the Kintex-7Q FPGAs is their operation across a wide range of extended temperatures. This capability ensures reliable functionality in extreme heat or cold, addressing the needs of applications exposed to unpredictable environments.
Long-Term Availability: Designed with stability in mind, Kintex-7Q FPGAs prioritize long-term availability, a crucial requirement for defense programs that necessitate consistent parts throughout their lifespan, thereby reducing risks associated with component obsolescence.
Security Features: In mission-critical applications, security is vital. Kintex-7Q FPGAs feature advanced security measures that safeguard against counterfeiting and tampering, ensuring sensitive information and intellectual property remain secure, making them suitable for secure deployments.

4k+

FPGAs
Available

Source AMD Parts

FPGAs Ready Now

SHOP AMD FPGAS

Applications

Wireless Communications

Kintex-7 FPGAs are crucial for baseband processing in various wireless standards, enabling effective data transmission and reception. They play a vital role in software-defined radio (SDR) systems, enabling adaptable performance across various communication protocols and enhancing the reliability and capacity of wireless networks.

Wired Communications

In wired networking, Kintex-7 FPGAs optimize high-speed data transfer, thereby enhancing the performance of switches and routers. They are essential in data centers for low-latency and high-throughput connections, accelerating networks by offloading processing from CPUs.

Broadcast and Professional Audio/Video

In the broadcast industry, Kintex-7 FPGAs are vital for real-time video processing and image analysis. They support applications such as video encoding and decoding, as well as live broadcasting, and are widely used in professional audio equipment for their low latency and high fidelity.

Medical Imaging

Kintex-7 FPGAs enable advanced image processing in medical devices, which is critical for accurate diagnostics in ultrasound machines, MRI systems, and CT scanners. Their flexibility enables the development of customized algorithms that enhance device functionality.

Defense

The Kintex-7Q variant is specifically designed for defense applications, such as radar and signal processing, ensuring secure data transfer in military communications while supporting advanced technologies, including electronic warfare systems.

High Performance Computing

In high-performance computing (HPC), Kintex-7 FPGAs accelerate computationally intensive tasks, such as data analysis and machine learning. Offloading functions from CPUs to FPGAs reduces processing time and energy consumption, facilitating the handling of larger datasets.

Benefits

Best Price/Performance Ratio

Kintex-7 FPGAs offer an excellent balance between high performance and affordability, making them an attractive choice for developers seeking to maximize their budget while leveraging powerful processing capabilities.

High Performance/Watt

These FPGAs deliver outstanding processing power with high energy efficiency, enabling significant computational throughput without incurring high power costs. This makes them ideal for applications where energy consumption is critical.

Design Flexibility

A key advantage of Kintex-7 FPGAs is their programmable architecture, which enables developers to tailor hardware to fit their applications precisely. This flexibility supports rapid prototyping and adaptation to changing project needs or technological advancements.

Rich Feature Set

Kintex-7 FPGAs include high-speed transceivers, PCIe connectivity, and advanced digital signal processing (DSP) capabilities. This feature set allows designers to create sophisticated applications across various industries, from telecommunications to automotive systems.

Conclusion

Kintex-7 FPGAs provide an exceptional balance of cost-effectiveness, high performance, and power efficiency, making them suitable for a wide range of applications. With rapid development capabilities, they excel in both embedded systems and high-speed data processing. The Kintex-7Q variant enhances their suitability for defense systems, with resilience against harsh conditions and strong security features. These attributes make Kintex-7 FPGAs a preferred choice for commercial and military projects that require high performance and reliability.

Other AMD Product Series

AMD Artix 7 FPGAs

AMD Spartan-7 FPGAs

AMD Virtex-7 FPGAs

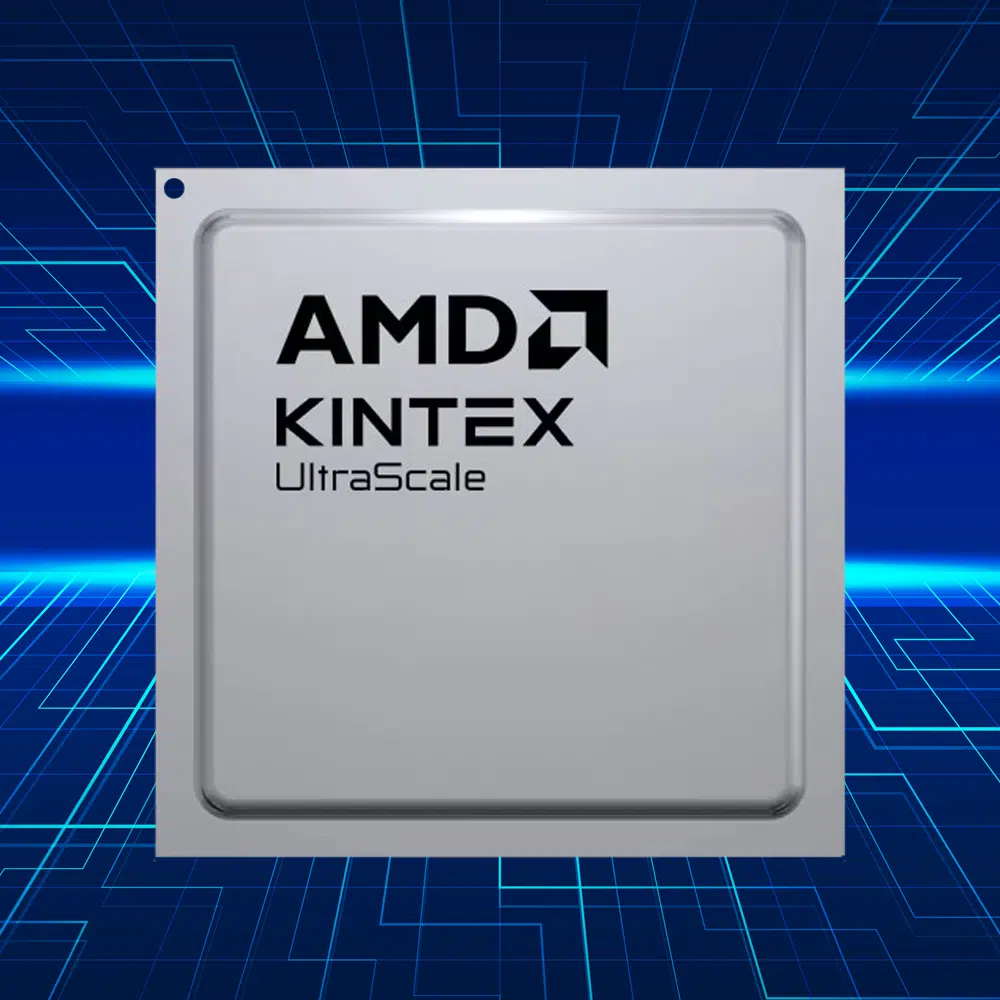

AMD Kintex Ultrascale FPGAs

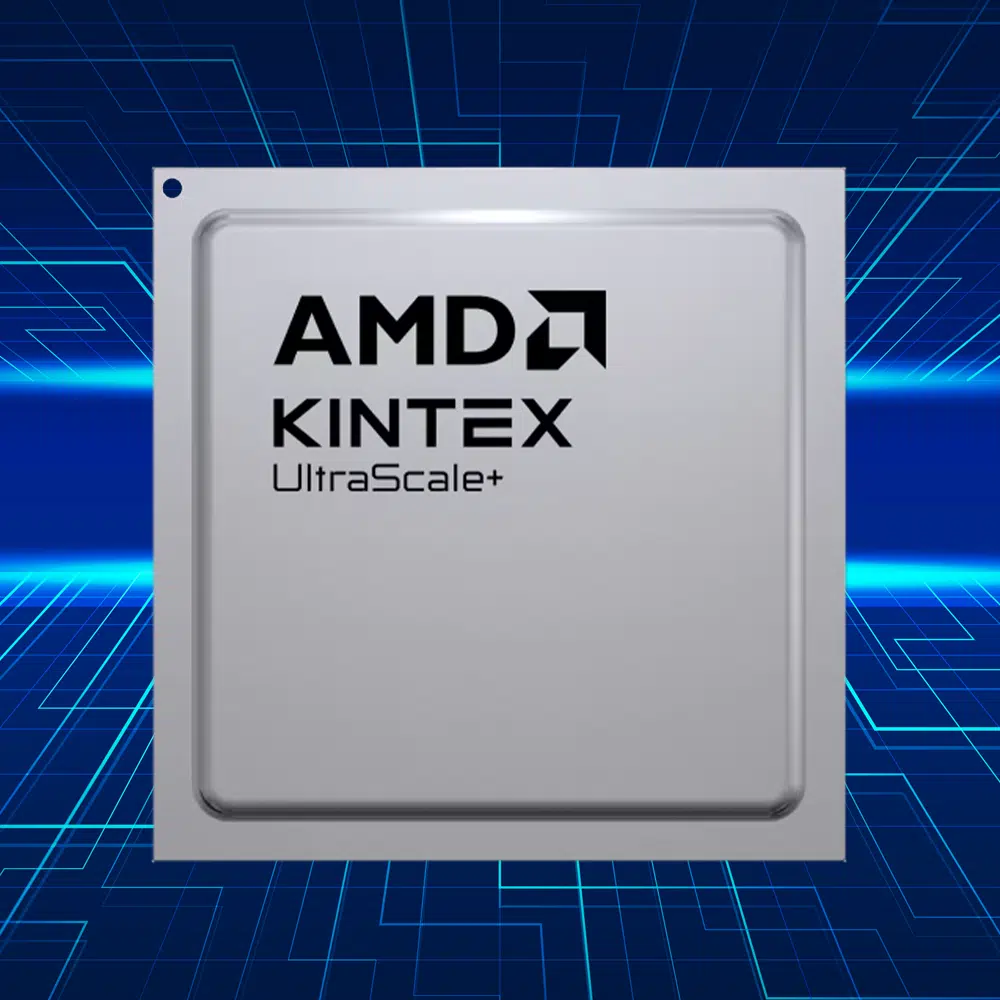

AMD Kintex Ultrascale+ FPGAs
