Total Products: 185
ImageData
Sheet		Part NumberManufacturerDescriptionCategoryDevice PackageVoltageOperating
Temp		Additional SpecificationsQtyGet A
Quote
HEF4052BT/AUJ
HEF4052BT/AUJNXP SemiconductorsIC SWITCH SP4T X 2 155OHM 16SOAnalog Switches, Multiplexers, Demultiplexers16-SON/A-40°C ~ 125°C (TA)
Switch Circuit:
SP4T
Multiplexer/Demultiplexer Circuit:
4:1
Number of Circuits:
2
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
70MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-SOIC (0.154″”, 3.90mm Width)
Supplier Device Package:
16-SO
624
GET A
QUOTE
HEF4053BP,652
HEF4053BP,652NXP SemiconductorsIC SWITCH SPDT X 3 155OHM 16DIPAnalog Switches, Multiplexers, Demultiplexers16-DIPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
70MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Through Hole
Package / Case:
16-DIP (0.300″”, 7.62mm)
Supplier Device Package:
16-DIP
350
GET A
QUOTE
HEF4053BT/AUJ
HEF4053BT/AUJNXP SemiconductorsIC SWITCH SPDT X 3 155OHM 16SOAnalog Switches, Multiplexers, Demultiplexers16-SON/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
70MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-SOIC (0.154″”, 3.90mm Width)
Supplier Device Package:
16-SO
78
GET A
QUOTE
HEF4066BP,652
HEF4066BP,652NXP SemiconductorsIC SWITCH SPST-NOX4 155OHM 14DIPAnalog Switches, Multiplexers, Demultiplexers14-DIPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
4
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
90MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Through Hole
Package / Case:
14-DIP (0.300″”, 7.62mm)
Supplier Device Package:
14-DIP
558
GET A
QUOTE
HEF4067BP,652
HEF4067BP,652NXP SemiconductorsIC MUX 16:1 155OHM 24DIPAnalog Switches, Multiplexers, Demultiplexers24-DIPN/A-40°C ~ 85°C (TA)
Multiplexer/Demultiplexer Circuit:
16:1
Number of Circuits:
1
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
70MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Through Hole
Package / Case:
24-DIP (0.600″”, 15.24mm)
Supplier Device Package:
24-DIP
570
GET A
QUOTE
HEF4067BT,652
HEF4067BT,652NXP SemiconductorsNOW NEXPERIA HEF4067BT - SINGLE-Analog Switches, Multiplexers, Demultiplexers24-SON/A-40°C ~ 85°C (TA)
Multiplexer/Demultiplexer Circuit:
16:1
Number of Circuits:
1
On-State Resistance (Max):
155Ohm
Channel-to-Channel Matching (ΔRon):
5Ohm
Voltage – Supply, Single (V+):
3V ~ 15V
-3db Bandwidth:
70MHz
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Crosstalk:
-50dB @ 1MHz
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Surface Mount
Package / Case:
24-SOIC (0.295″”, 7.50mm Width)
Supplier Device Package:
24-SO
652
GET A
QUOTE
HEF4952BT,112
HEF4952BT,112NXP SemiconductorsIC MUX 8:2 360OHM 16SOAnalog Switches, Multiplexers, Demultiplexers16-SON/A-40°C ~ 85°C (TA)
Multiplexer/Demultiplexer Circuit:
8:2
Number of Circuits:
1
On-State Resistance (Max):
360Ohm
Channel-to-Channel Matching (ΔRon):
10Ohm
Voltage – Supply, Single (V+):
5V ~ 15V
Voltage – Supply, Dual (V±):
±15V
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-SOIC (0.154″”, 3.90mm Width)
Supplier Device Package:
16-SO
731
GET A
QUOTE
HEF4952BT,118
HEF4952BT,118NXP SemiconductorsIC MUX 8:2 360OHM 16SOAnalog Switches, Multiplexers, Demultiplexers16-SON/A-40°C ~ 85°C (TA)
Multiplexer/Demultiplexer Circuit:
8:2
Number of Circuits:
1
On-State Resistance (Max):
360Ohm
Channel-to-Channel Matching (ΔRon):
10Ohm
Voltage – Supply, Single (V+):
5V ~ 15V
Voltage – Supply, Dual (V±):
±15V
Channel Capacitance (CS(off), CD(off)):
7.5pF
Current – Leakage (IS(off)) (Max):
200nA
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-SOIC (0.154″”, 3.90mm Width)
Supplier Device Package:
16-SO
944
GET A
QUOTE
NX3DV3899GU,115
NX3DV3899GU,115NXP SemiconductorsIC SWITCH DPDT X 2 3.3OHM 16XQFNAnalog Switches, Multiplexers, Demultiplexers16-XQFN (1.8x2.6)N/A-40°C ~ 125°C (TA)
Switch Circuit:
DPDT
Multiplexer/Demultiplexer Circuit:
2:2
Number of Circuits:
2
On-State Resistance (Max):
3.3Ohm
Channel-to-Channel Matching (ΔRon):
700mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
200MHz
Charge Injection:
4pC
Channel Capacitance (CS(off), CD(off)):
8pF
Current – Leakage (IS(off)) (Max):
5nA
Crosstalk:
-90dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN
Supplier Device Package:
16-XQFN (1.8×2.6)
113
GET A
QUOTE

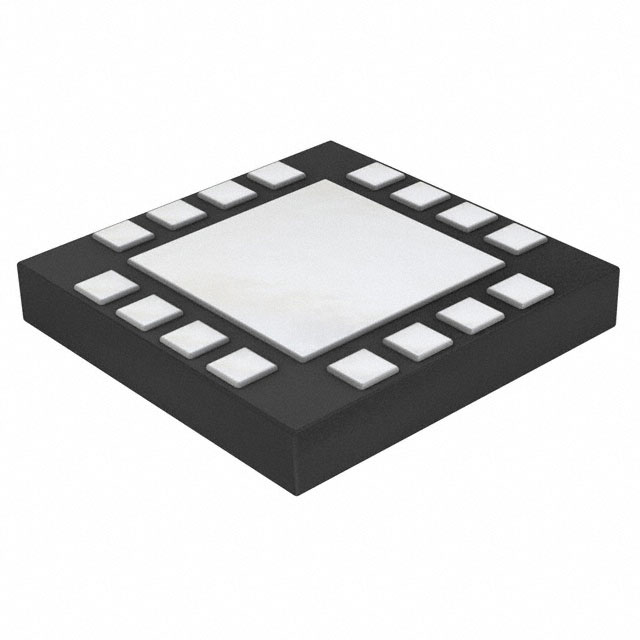

NX3DV3899HR,115
NX3DV3899HR,115NXP SemiconductorsIC SWITCH DPDTX2 3.3OHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
DPDT
Multiplexer/Demultiplexer Circuit:
2:2
Number of Circuits:
2
On-State Resistance (Max):
3.3Ohm
Channel-to-Channel Matching (ΔRon):
700mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
200MHz
Charge Injection:
4pC
Channel Capacitance (CS(off), CD(off)):
8pF
Current – Leakage (IS(off)) (Max):
5nA
Crosstalk:
-90dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
1,544
GET A
QUOTE
N/A
NX3DV3899HRZNXP SemiconductorsIC SWITCH DPDTX2 3.3OHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
DPDT
Multiplexer/Demultiplexer Circuit:
2:2
Number of Circuits:
2
On-State Resistance (Max):
3.3Ohm
Channel-to-Channel Matching (ΔRon):
700mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
200MHz
Charge Injection:
4pC
Channel Capacitance (CS(off), CD(off)):
8pF
Current – Leakage (IS(off)) (Max):
5nA
Crosstalk:
-90dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
662
GET A
QUOTE
NX3L1G3157GM-Q100XN/ANX3L1G3157GM-Q100XNXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
25ns, 10ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
739
GET A
QUOTE
NX3L1G3157GM,115
NX3L1G3157GM,115NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
25ns, 10ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
858
GET A
QUOTE
NX3L1G3157GM,132
NX3L1G3157GM,132NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
25ns, 10ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
216
GET A
QUOTE
NX3L1G3157GMZ
NX3L1G3157GMZNXP SemiconductorsIC SWITCH SPDT X 1 900MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
900mOhm
Channel-to-Channel Matching (ΔRon):
100mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
25ns, 10ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
493
GET A
QUOTE
NX3L1G384GM,115
NX3L1G384GM,115NXP SemiconductorsIC SW SPST-NCX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 7ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,384
GET A
QUOTE
NX3L1G384GM,132
NX3L1G384GM,132NXP SemiconductorsIC SW SPST-NCX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 7ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
325
GET A
QUOTE
NX3L1G384GW,125
NX3L1G384GW,125NXP SemiconductorsIC SW SPST-NCX1 750MOHM 5TSSOPAnalog Switches, Multiplexers, Demultiplexers5-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 7ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:
5-TSSOP
1,538
GET A
QUOTE

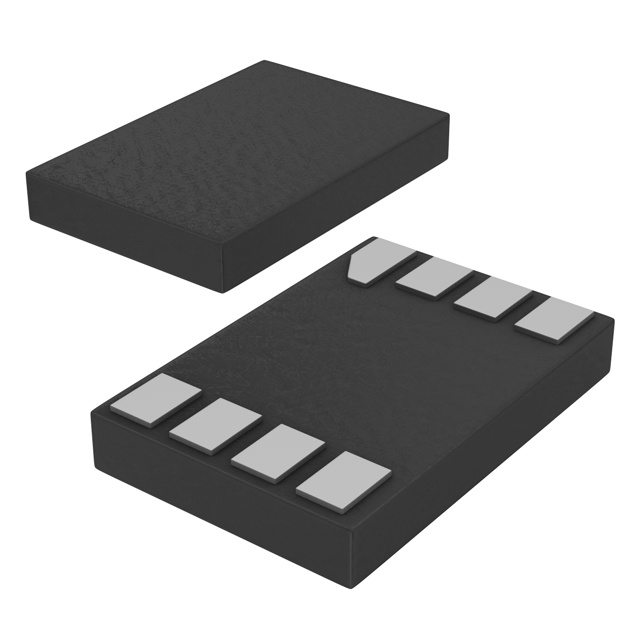

NX3L1G53GD,125
NX3L1G53GD,125NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 8XSONAnalog Switches, Multiplexers, Demultiplexers8-XSON, SOT996-2 (2x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFDFN
Supplier Device Package:
8-XSON, SOT996-2 (2×3)
314
GET A
QUOTE
NX3L1G53GM,125
NX3L1G53GM,125NXP SemiconductorsIC SWITCH SPDTX1 750MOHM 8XQFNUAnalog Switches, Multiplexers, Demultiplexers8-XQFNU (1.6x1.6)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFQFN Exposed Pad
Supplier Device Package:
8-XQFNU (1.6×1.6)
1,009
GET A
QUOTE

We’ve Got You Covered!

If you can’t find the parts you’re looking for in our database, don’t worry! We’re here to help. Simply fill out the form below with the part number you need and your contact information, and we’ll locate it for you. If you prefer to speak to someone directly, our sales team is available at 949.783.7300.

























    I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


    Global Sourcing Capabilities

    Tap into our global network of suppliers to find the components you need. We simplify procurement, even for hard-to-find parts, saving you time and ensuring smooth production.

    Second Sourcing  Second Sourcing Solutions

    Don’t let supply chain disruptions delay your project. We’ll help you identify alternative components and secure reliable secondary sources to keep your production on track.

    Obsolescence Management  Obsolescence Management

    Outsmart obsolescence and ensure your designs stay in production. We’ll help you navigate component lifecycles, secure long-term supply, and find smart alternatives when parts are discontinued.

    Shortage Mitigation  Shortage Mitigation

    Forget supply chain worries. Our team specializes in navigating the unpredictable component market, leveraging our global network and deep expertise to help you find the necessary components when you need them.

























      I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


      keyboard_arrow_up
