Electronic Parts Search

Suntsu Electronics is your reliable source for hard-to-find and obsolete electronic components. Our advanced part search tool makes it easy to quickly find the products you need. You can search by part number, manufacturer, or specifications to instantly access a comprehensive database of electronic components.

Featured Brands

Part Search

CLEAR SEARCH
Total Products: 185
ImageData
Sheet		Part NumberManufacturerDescriptionCategoryDevice PackageVoltageOperating
Temp		Additional SpecificationsQtyGet A
Quote
NX3L1G53GT,115
NX3L1G53GT,115NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 8XSONAnalog Switches, Multiplexers, Demultiplexers8-XSON, SOT833-1 (1.95x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFDFN
Supplier Device Package:
8-XSON, SOT833-1 (1.95×1)
814
GET A
QUOTE
NX3L1G66GM,115
NX3L1G66GM,115NXP SemiconductorsIC SW SPST-NOX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
23ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,070
GET A
QUOTE
NX3L1G66GM,132
NX3L1G66GM,132NXP SemiconductorsIC SW SPST-NOX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
23ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,410
GET A
QUOTE
NX3L1G66GW-Q100H
NX3L1G66GW-Q100HNXP SemiconductorsIC SW SPST-NOX1 750MOHM 5TSSOPAnalog Switches, Multiplexers, Demultiplexers5-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
23ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:
5-TSSOP
1,347
GET A
QUOTE
NX3L1G66GW,125
NX3L1G66GW,125NXP SemiconductorsIC SW SPST-NOX1 750MOHM 5TSSOPAnalog Switches, Multiplexers, Demultiplexers5-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
23ns, 8ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:
5-TSSOP
593
GET A
QUOTE
NX3L1T3157GM,115
NX3L1T3157GM,115NXP SemiconductorsIC SWITCH SPDT X 1 500MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
500mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
805
GET A
QUOTE
NX3L1T3157GM,132
NX3L1T3157GM,132NXP SemiconductorsIC SWITCH SPDT X 1 500MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
500mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,385
GET A
QUOTE

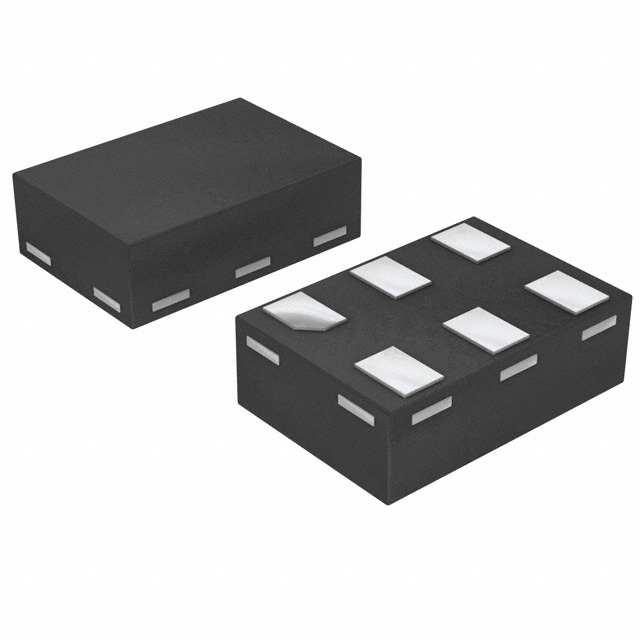

NX3L1T3157GMZ
NX3L1T3157GMZNXP SemiconductorsIC SWITCH SPDT X 1 900MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
900mOhm
Channel-to-Channel Matching (ΔRon):
100mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,165
GET A
QUOTE
NX3L1T3157GW,125
NX3L1T3157GW,125NXP SemiconductorsIC SWITCH SPDTX1 500MOHM 6TSSOPAnalog Switches, Multiplexers, Demultiplexers6-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
500mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-TSSOP, SC-88, SOT-363
Supplier Device Package:
6-TSSOP
974
GET A
QUOTE
NX3L1T384GM,115
NX3L1T384GM,115NXP SemiconductorsIC SW SPST-NCX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 15ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
663
GET A
QUOTE
NX3L1T5157GM,115
NX3L1T5157GM,115NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,300
GET A
QUOTE
NX3L1T5157GM,132
NX3L1T5157GM,132NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
821
GET A
QUOTE
NX3L1T5157GMAZ
NX3L1T5157GMAZNXP SemiconductorsIC SWITCH SPDT X 1 900MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
900mOhm
Channel-to-Channel Matching (ΔRon):
100mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
321
GET A
QUOTE
NX3L1T5157GMZ
NX3L1T5157GMZNXP SemiconductorsIC SWITCH SPDT X 1 900MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
900mOhm
Channel-to-Channel Matching (ΔRon):
100mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,065
GET A
QUOTE

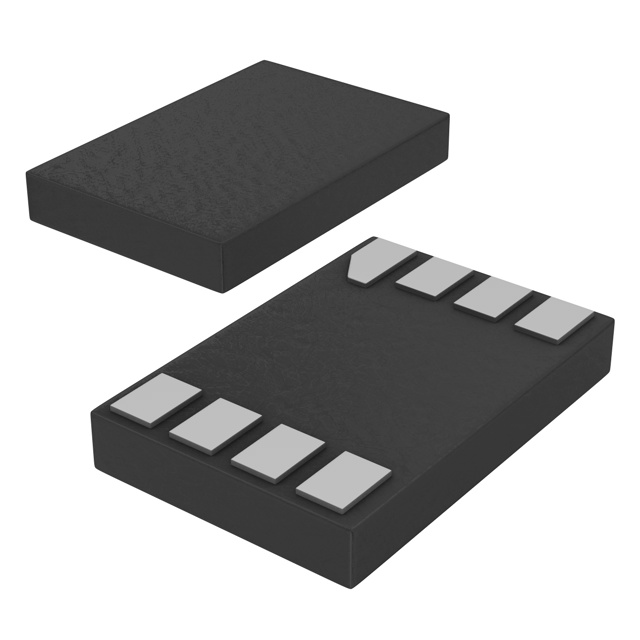

NX3L1T53GD,125
NX3L1T53GD,125NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 8XSONAnalog Switches, Multiplexers, Demultiplexers8-XSON, SOT996-2 (2x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFDFN
Supplier Device Package:
8-XSON, SOT996-2 (2×3)
1,372
GET A
QUOTE

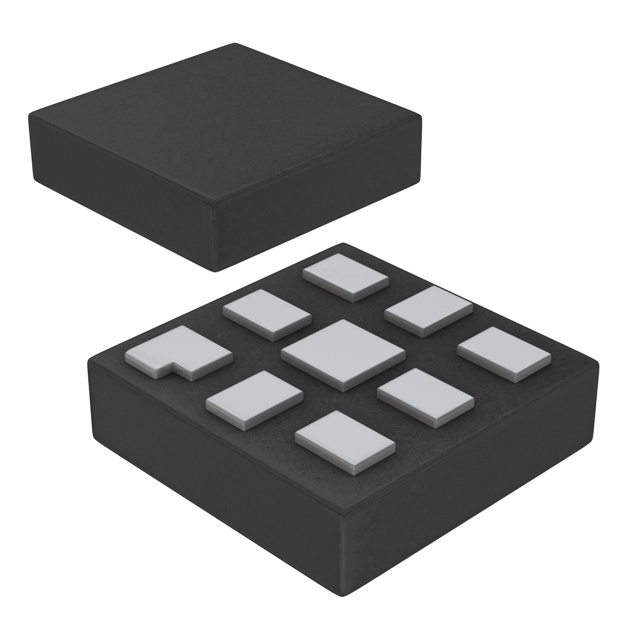

NX3L1T53GM,125
NX3L1T53GM,125NXP SemiconductorsIC SWITCH SPDTX1 750MOHM 8XQFNUAnalog Switches, Multiplexers, Demultiplexers8-XQFNU (1.6x1.6)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFQFN Exposed Pad
Supplier Device Package:
8-XQFNU (1.6×1.6)
343
GET A
QUOTE
NX3L1T53GT,115
NX3L1T53GT,115NXP SemiconductorsIC SWITCH SPDT X 1 750MOHM 8XSONAnalog Switches, Multiplexers, Demultiplexers8-XSON, SOT833-1 (1.95x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
20mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
8-XFDFN
Supplier Device Package:
8-XSON, SOT833-1 (1.95×1)
1,719
GET A
QUOTE
NX3L1T66GM,115
NX3L1T66GM,115NXP SemiconductorsIC SW SPST-NOX1 750MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
28ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
6pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
620
GET A
QUOTE
NX3L2267GM-Q100X
NX3L2267GM-Q100XNXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
90mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
37pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
328
GET A
QUOTE
NX3L2267GM,115
NX3L2267GM,115NXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
90mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
37pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
910
GET A
QUOTE

We’ve Got You Covered!

If you can’t find the parts you’re looking for in our database, don’t worry! We’re here to help. Simply fill out the form below with the part number you need and your contact information, and we’ll locate it for you. If you prefer to speak to someone directly, our sales team is available at 949.783.7300.

























    I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


    Global Sourcing Capabilities

    Tap into our global network of suppliers to find the components you need. We simplify procurement, even for hard-to-find parts, saving you time and ensuring smooth production.

    Second Sourcing  Second Sourcing Solutions

    Don’t let supply chain disruptions delay your project. We’ll help you identify alternative components and secure reliable secondary sources to keep your production on track.

    Obsolescence Management  Obsolescence Management

    Outsmart obsolescence and ensure your designs stay in production. We’ll help you navigate component lifecycles, secure long-term supply, and find smart alternatives when parts are discontinued.

    Shortage Mitigation  Shortage Mitigation

    Forget supply chain worries. Our team specializes in navigating the unpredictable component market, leveraging our global network and deep expertise to help you find the necessary components when you need them.

























      I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


      keyboard_arrow_up
