Total Products: 185
ImageData
Sheet		Part NumberManufacturerDescriptionCategoryDevice PackageVoltageOperating
Temp		Additional SpecificationsQtyGet A
Quote
NX3L4051HR,115
NX3L4051HR,115NXP SemiconductorsIC MUX 8:1 750MOHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Multiplexer/Demultiplexer Circuit:
8:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
70mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 25ns
-3db Bandwidth:
15MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
604
GET A
QUOTE
NX3L4051HRZN/ANX3L4051HRZNXP SemiconductorsIC MUX 8:1 900MOHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Multiplexer/Demultiplexer Circuit:
8:1
Number of Circuits:
1
On-State Resistance (Max):
900mOhm
Channel-to-Channel Matching (ΔRon):
70mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 25ns
-3db Bandwidth:
15MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
548
GET A
QUOTE

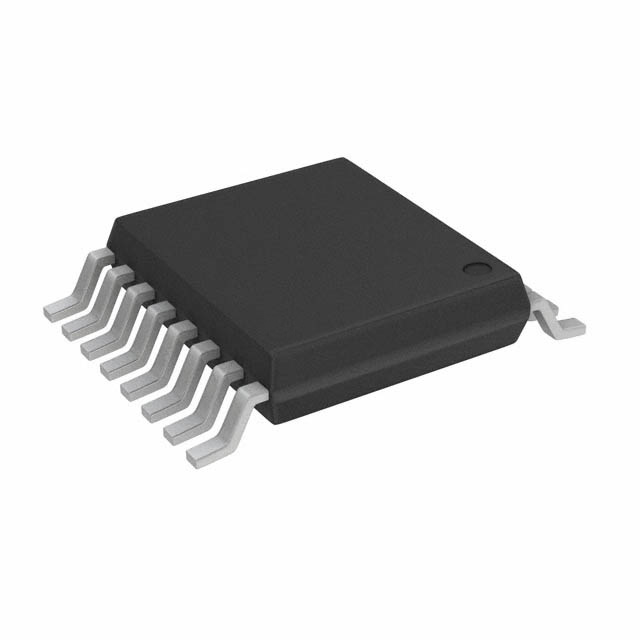

NX3L4051PW-Q100J
NX3L4051PW-Q100JNXP SemiconductorsIC MUX 8:1 750MOHM 16TSSOPAnalog Switches, Multiplexers, Demultiplexers16-TSSOPN/A-40°C ~ 125°C (TA)
Multiplexer/Demultiplexer Circuit:
8:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
70mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 25ns
-3db Bandwidth:
15MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
16-TSSOP (0.173″”, 4.40mm Width)
Supplier Device Package:
16-TSSOP
274
GET A
QUOTE
NX3L4051PW,118
NX3L4051PW,118NXP SemiconductorsIC MUX 8:1 750MOHM 16TSSOPAnalog Switches, Multiplexers, Demultiplexers16-TSSOPN/A-40°C ~ 125°C (TA)
Multiplexer/Demultiplexer Circuit:
8:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
70mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 25ns
-3db Bandwidth:
15MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-TSSOP (0.173″”, 4.40mm Width)
Supplier Device Package:
16-TSSOP
200
GET A
QUOTE
NX3L4053HR-Q100X
NX3L4053HR-Q100XNXP SemiconductorsIC SWITCH SPDTX3 800MOHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
800mOhm
Channel-to-Channel Matching (ΔRon):
120mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
929
GET A
QUOTE

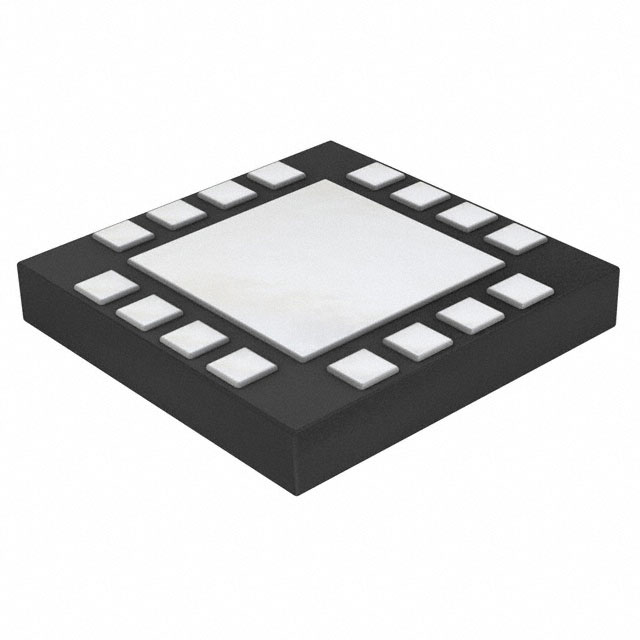

NX3L4053HR,115
NX3L4053HR,115NXP SemiconductorsIC SWITCH SPDTX3 800MOHM 16HXQFNAnalog Switches, Multiplexers, Demultiplexers16-HXQFN (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
800mOhm
Channel-to-Channel Matching (ΔRon):
120mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-XFQFN Exposed Pad
Supplier Device Package:
16-HXQFN (3×3)
1,379
GET A
QUOTE
NX3L4053PW-Q100J
NX3L4053PW-Q100JNXP SemiconductorsIC SWITCH SPDTX3 800MOHM 16TSSOPAnalog Switches, Multiplexers, Demultiplexers16-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
800mOhm
Channel-to-Channel Matching (ΔRon):
120mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Grade:
Automotive
Qualification:
AEC-Q100
Mounting Type:
Surface Mount
Package / Case:
16-TSSOP (0.173″”, 4.40mm Width)
Supplier Device Package:
16-TSSOP
644
GET A
QUOTE
NX3L4053PW,118
NX3L4053PW,118NXP SemiconductorsIC SWITCH SPDTX3 800MOHM 16TSSOPAnalog Switches, Multiplexers, Demultiplexers16-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
3
On-State Resistance (Max):
800mOhm
Channel-to-Channel Matching (ΔRon):
120mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
16-TSSOP (0.173″”, 4.40mm Width)
Supplier Device Package:
16-TSSOP
292
GET A
QUOTE
NX3L4357GM,115
NX3L4357GM,115NXP SemiconductorsIC SWITCH SP3TX1 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SP3T
Multiplexer/Demultiplexer Circuit:
3:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
90mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
40ns, 20ns
-3db Bandwidth:
60MHz
Charge Injection:
15pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
539
GET A
QUOTE
NX3L4357GM,132
NX3L4357GM,132NXP SemiconductorsIC SWITCH SP3TX1 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SP3T
Multiplexer/Demultiplexer Circuit:
3:1
Number of Circuits:
1
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
90mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 25ns
-3db Bandwidth:
30MHz
Charge Injection:
50pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
104
GET A
QUOTE
NX3L4684GM,115
NX3L4684GM,115NXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
40mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 20ns
-3db Bandwidth:
20MHz
Charge Injection:
50pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
1,012
GET A
QUOTE

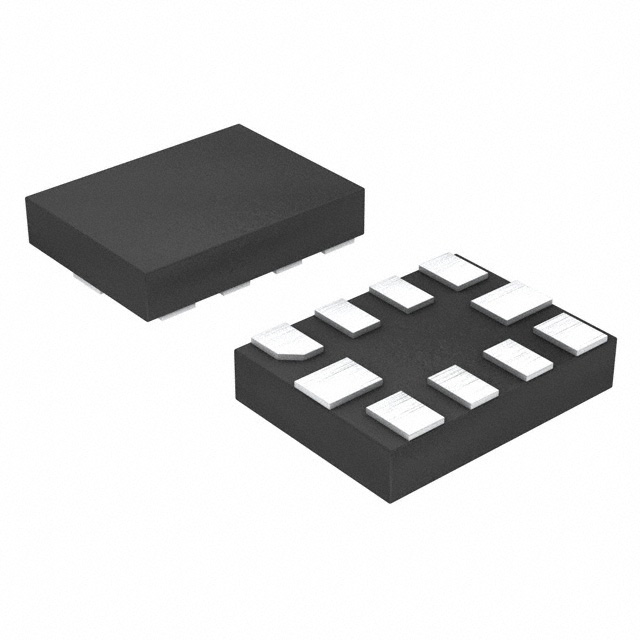

NX3L4684GM,132
NX3L4684GM,132NXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10XQFNAnalog Switches, Multiplexers, Demultiplexers10-XQFN (1.55x2)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
40mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 20ns
-3db Bandwidth:
20MHz
Charge Injection:
50pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55×2)
361
GET A
QUOTE
NX3L4684TK,115
NX3L4684TK,115NXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10HVSONAnalog Switches, Multiplexers, Demultiplexers10-HVSON (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
40mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 20ns
-3db Bandwidth:
20MHz
Charge Injection:
50pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-VFDFN Exposed Pad
Supplier Device Package:
10-HVSON (3×3)
949
GET A
QUOTE

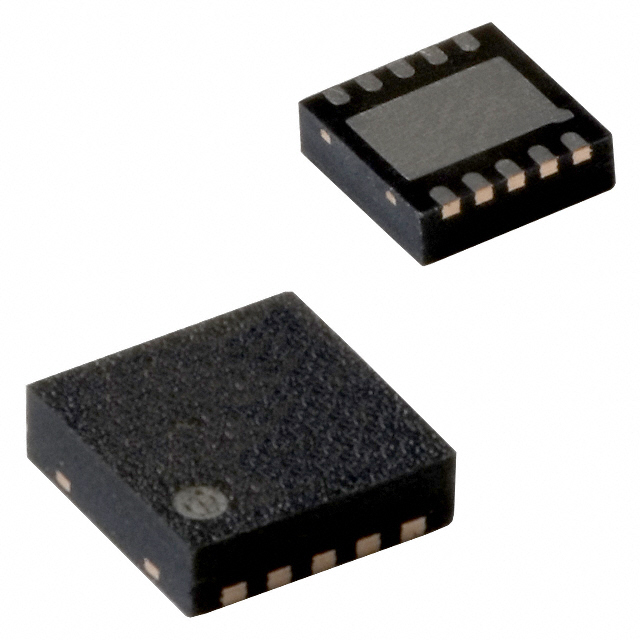

NX3L4684TK,132
NX3L4684TK,132NXP SemiconductorsIC SWITCH SPDTX2 750MOHM 10HVSONAnalog Switches, Multiplexers, Demultiplexers10-HVSON (3x3)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
750mOhm
Channel-to-Channel Matching (ΔRon):
40mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
45ns, 20ns
-3db Bandwidth:
20MHz
Charge Injection:
50pC
Channel Capacitance (CS(off), CD(off)):
35pF
Current – Leakage (IS(off)) (Max):
10nA
Crosstalk:
-90dB @ 100kHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-VFDFN Exposed Pad
Supplier Device Package:
10-HVSON (3×3)
813
GET A
QUOTE
NX3V1G384GM,115
NX3V1G384GM,115NXP SemiconductorsIC SW SPST-NCX1 450MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
26ns, 10ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
1,430
GET A
QUOTE
NX3V1G384GM,132
NX3V1G384GM,132NXP SemiconductorsIC SW SPST-NCX1 450MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
26ns, 10ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
521
GET A
QUOTE
NX3V1G384GW,125
NX3V1G384GW,125NXP SemiconductorsIC SW SPST-NCX1 450MOHM 5TSSOPAnalog Switches, Multiplexers, Demultiplexers5-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NC
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
26ns, 10ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:
5-TSSOP
780
GET A
QUOTE
NX3V1G66GM,115
NX3V1G66GM,115NXP SemiconductorsIC SW SPST-NOX1 450MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 9ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
466
GET A
QUOTE
NX3V1G66GM,132
NX3V1G66GM,132NXP SemiconductorsIC SW SPST-NOX1 450MOHM 6XSONAnalog Switches, Multiplexers, Demultiplexers6-XSON, SOT886 (1.45x1)N/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 9ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
6-XFDFN
Supplier Device Package:
6-XSON, SOT886 (1.45×1)
353
GET A
QUOTE
NX3V1G66GW,125
NX3V1G66GW,125NXP SemiconductorsIC SW SPST-NOX1 450MOHM 5TSSOPAnalog Switches, Multiplexers, Demultiplexers5-TSSOPN/A-40°C ~ 125°C (TA)
Switch Circuit:
SPST – NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
1
On-State Resistance (Max):
450mOhm
Voltage – Supply, Single (V+):
1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max):
24ns, 9ns
-3db Bandwidth:
25MHz
Charge Injection:
12pC
Channel Capacitance (CS(off), CD(off)):
70pF
Current – Leakage (IS(off)) (Max):
10nA
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:
5-TSSOP
423
GET A
QUOTE

We’ve Got You Covered!

If you can’t find the parts you’re looking for in our database, don’t worry! We’re here to help. Simply fill out the form below with the part number you need and your contact information, and we’ll locate it for you. If you prefer to speak to someone directly, our sales team is available at 949.783.7300.

























    I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


    Global Sourcing Capabilities

    Tap into our global network of suppliers to find the components you need. We simplify procurement, even for hard-to-find parts, saving you time and ensuring smooth production.

    Second Sourcing  Second Sourcing Solutions

    Don’t let supply chain disruptions delay your project. We’ll help you identify alternative components and secure reliable secondary sources to keep your production on track.

    Obsolescence Management  Obsolescence Management

    Outsmart obsolescence and ensure your designs stay in production. We’ll help you navigate component lifecycles, secure long-term supply, and find smart alternatives when parts are discontinued.

    Shortage Mitigation  Shortage Mitigation

    Forget supply chain worries. Our team specializes in navigating the unpredictable component market, leveraging our global network and deep expertise to help you find the necessary components when you need them.

























      I agree to receive newsletters and promotional emails. I can unsubscribe at any time.


      keyboard_arrow_up
