SXT104 Series – 1.2MM X 1.0MM Ceramic SMD 4 Pad Crystal

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• Bluetooth
• Wireless LAN
• High Density Applications

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• Bluetooth
• Wireless LAN
• High Density Applications

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

Part Numbering Guide - SXT104

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz3680AT-Cut Fundamental.
Frequency Tolerance at +25ºCppm-10+10See part numbering guide for options.
Frequency Stability vs. Op Tempppm-10+10See part numbering guide for options.
Frequency Stability vs. Agingppm-2+2First year @ +25ºC.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-40+125
Load CapacitancepF510See part numbering guide for options.
Shunt CapacitancepF5
Drive LevelμW10100
Insulation Resistance500@ 100VDC ± 15V.
          36.000MHz ~ 39.999MHzΩ150AT-Cut Fundamental
ESR - 40.000MHz ~ 47.999MHzΩ80AT-Cut Fundamental
          48.000MHz ~ 80.000MHzΩ60AT-Cut Fundamental

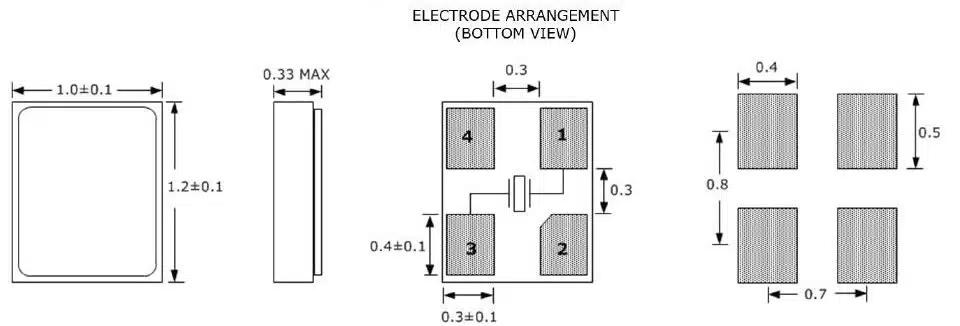

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SXT104 2D
