SXT532 SERIES – 5.0MM X 3.2MM Ceramic SMD 2 Pad Crystal

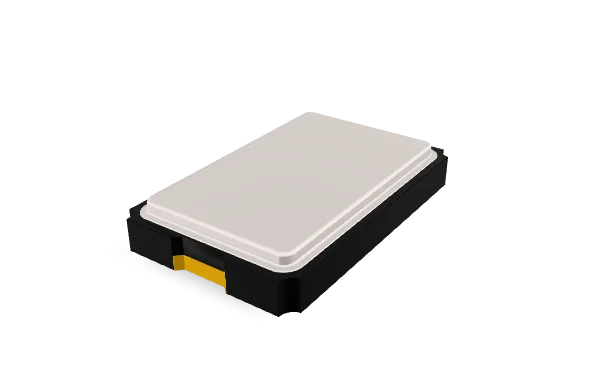

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• Communication and Test Equipment
• PCMCIA
• Wireless Applications
• High Density Applications

3D Product View

3D View

Features

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

Applications

• Communication and Test Equipment
• PCMCIA
• Wireless Applications
• High Density Applications

Part Number Builder

Please choose your parameters to build a part number:

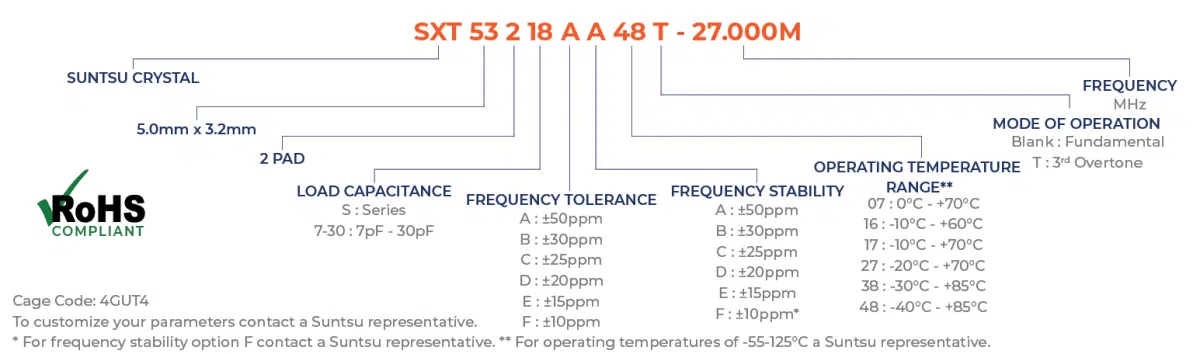

Part Numbering Guide

Part Numbering Guide - SXT532

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz854AT-Cut Fundamental.
Frequency RangeMHz401003rd Overtone
Frequency Tolerance at +25ºCppm-10+10See part numbering guide for options.
Frequency Stability vs. Op Tempppm-10+10See part numbering guide for options.
Frequency Stability vs. Agingppm-3+3First year @ +25ºC.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-40+125
Load CapacitancepF730See part numbering guide for options.
Shunt CapacitancepF7
Drive LevelμW10100
Insulation Resistance500@ 100VDC ± 15V.
Equivalent Series Resistance
      8.000MHz ~ 11.999MHzΩ100AT-Cut Fundamental
      12.000MHz ~ 19.999MHzΩ80AT-Cut Fundamental
      20.000MHz ~ 29.999MHzΩ70AT-Cut Fundamental
      30.000MHz ~ 54.000MHzΩ50AT-Cut Fundamental
      40.000MHz ~ 100.000MHzΩ703rd Ovetone

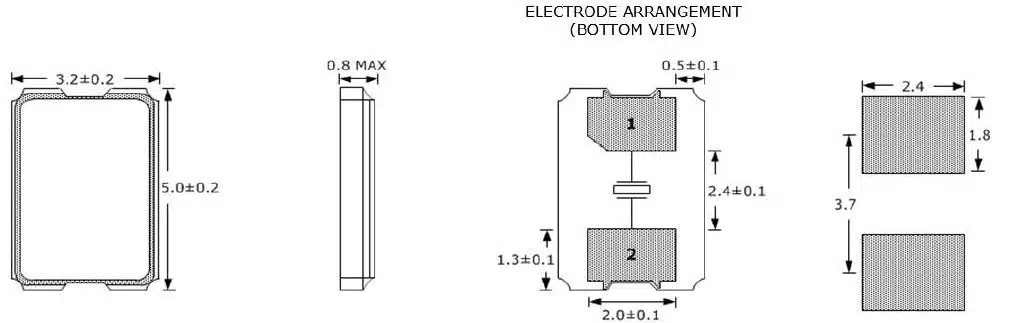

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SXT532 2D
