SXT534 Series – 5.0MM X 3.2MM Ceramic SMD 4 Pad Crystal

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

• Communication and Test Equipment
• PCMCIA
• Wireless Applications
• High Density Applications

• ±10ppm/±10ppm Available
• Ultra-Miniature Package
• AT-Cut Fundamental
• Tape and Reel

• Communication and Test Equipment
• PCMCIA
• Wireless Applications
• High Density Applications

Please choose your parameters to build a part number:

SXT534-Series

View Datasheet

Parameters	Units	Min	Typical	Max	Remarks
Frequency Range	MHz	7.9921		54	AT-Cut Fundamental.
Frequency Range	MHz	40		125	3rd Overtone
Frequency Tolerance at +25ºC	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Op Temp	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Aging	ppm	-3		+3	First year @ +25ºC.
Operating Temperature	°C	-40		+85	See part numbering guide for options.
Storage Temperature	°C	-40		+125
Load Capacitance	pF	7		30	See part numbering guide for options.
Shunt Capacitance	pF			7
Drive Level	μW		10	100
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
Equivalent Series Resistance
8.000MHz ~ 11.999MHz	Ω			100	AT-Cut Fundamental
12.000MHz ~ 19.999MHz	Ω			80	AT-Cut Fundamental
20.000MHz ~ 29.999MHz	Ω			70	AT-Cut Fundamental
30.000MHz ~ 54.000MHz	Ω			50	AT-Cut Fundamental
40.000MHz ~ 125.000MHz	Ω			80	3rd Ovetone

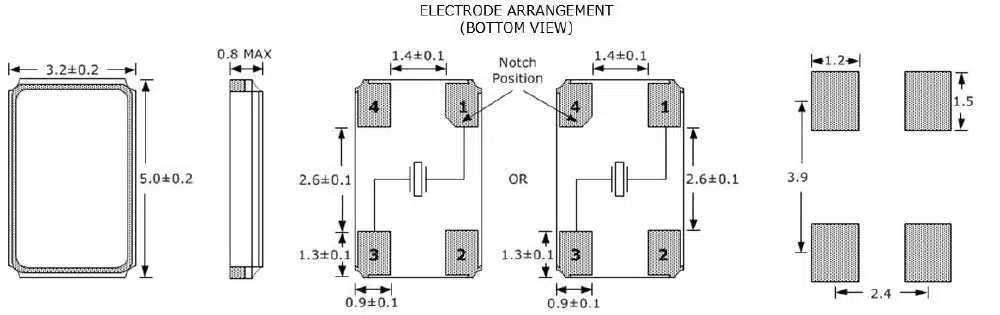

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
