SAO22C Series – 2.5MM X 2.0MM Ceramic SMD 4 Pad CMOS Automotive Oscillator

3D Product View

3D View

Features

• ±30ppm (Frequency Stability) Available
• Ceramic Package
• High Reliability for Automotive
• CMOS
• AEC-Q100 Compliant

Applications

• Automotive Electronics
• Infotainment System
• ADAS
• Car Navigation

3D Product View

3D View

Features

• ±30ppm (Frequency Stability) Available
• Ceramic Package
• High Reliability for Automotive
• CMOS
• AEC-Q100 Compliant

Applications

• Automotive Electronics
• Infotainment System
• ADAS
• Car Navigation

Part Number Builder

Please choose your parameters to build a part number:

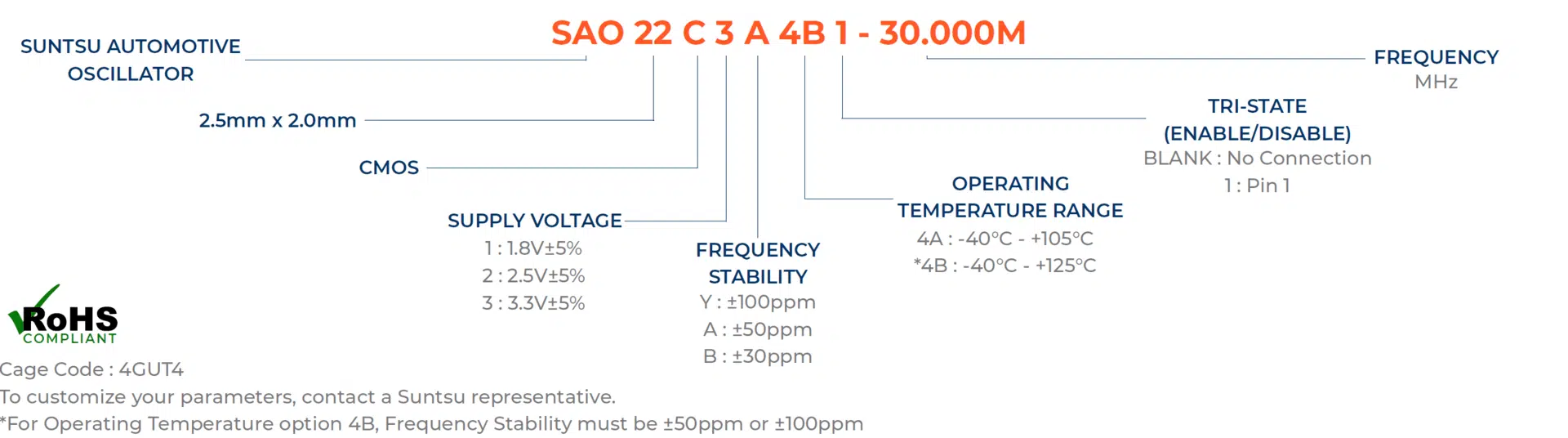

Part Numbering Guide

SAO22C-Part-Number-Builder

Electrical Parameters

2.5VUnitsMinTypicalMaxRemarks
Frequency RangekHz32.768
Frequency RangeMHz0.250125.0
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change)
ppm-2525See part numbering guide for options.
Aging First Yearppm-33
Operating Temperature°C-40125See part numbering guide for options.
Storage Temperature°C-55125
Supply Voltage (VDD) - 1.8V OptionV1.7101.81.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Frequency Range
Current (IDD) - 32.768KHz
Current (IDD) - 0.250MHz - 24.999MHz
Current (IDD) - 25.000MHz - 39.999MHz
Current (IDD) - 40.000MHz - 59.999MHz
Current (IDD) - 60.000MHz - 125.000MHz"

mA
mA
mA
mA
mA
1.8V
.20
4
6
10
25
2.5V
0.25
6
8
12
30
3.3V
0.30
10
15
20
40

Maximum Value
Maximum Value
Maximum Value
Maximum Value
Maximum Value
Output Load (CMOS)pF15See part numbering guide for options
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and 32.768KHz
Fall (TF) Time 0.250MHz - 125.000MHz
ns
ns
30
10
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems5
Phase Jitter (12kHz ~ 20MHz)ps1
Period Jitter (pk-pk)ps25

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SAO22C-Outline-Drawing
