SLO32L Series – 3.2MM X 2.5MM Ceramic SMD Low Current 6 Pad LVDS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Low Current Consumption
• Fundamental or 3rd Overtone Crystal

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Low Current Consumption
• Fundamental or 3rd Overtone Crystal

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

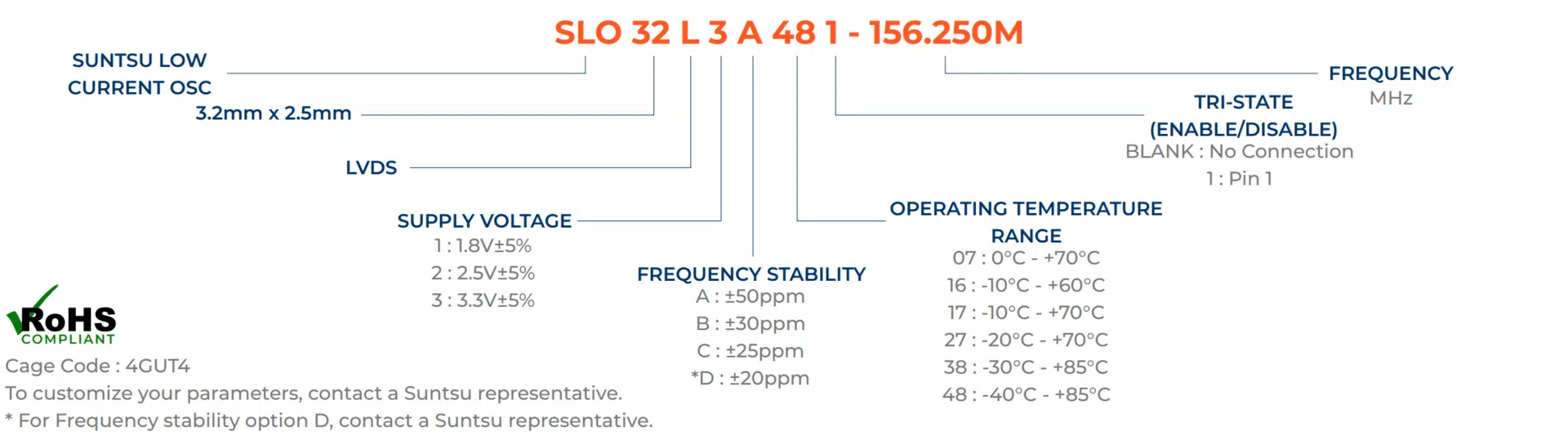

SLO32L-part-numbering-guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz100320135~175MHz(1.8V), 100~320MHz(2.5&3.3V)
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.7101.81.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465
Current (IDD)mA1520
Output Load (LVDS)100
Output Logic Levels High (VOH)V1.431.6
Output Logic Levels Low (VOL)V0.91.1
Differential Output Voltage (VOD)mV247350454
Differential Output Error (DVOD)mV50
Offset Voltage (VOS)V1.1251.2501.375
Offset Error (DVOS)mV50
Rise (TR) and Fall (TF) Timens0.250.5
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems5.0
Phase Jitter (12kHz ~ 20MHz)ps0.120.15
