SQG22P Series – 2.5MM X 2.0MM Ceramic SMD Quick Turn 6 Pad LVPECL Oscillator

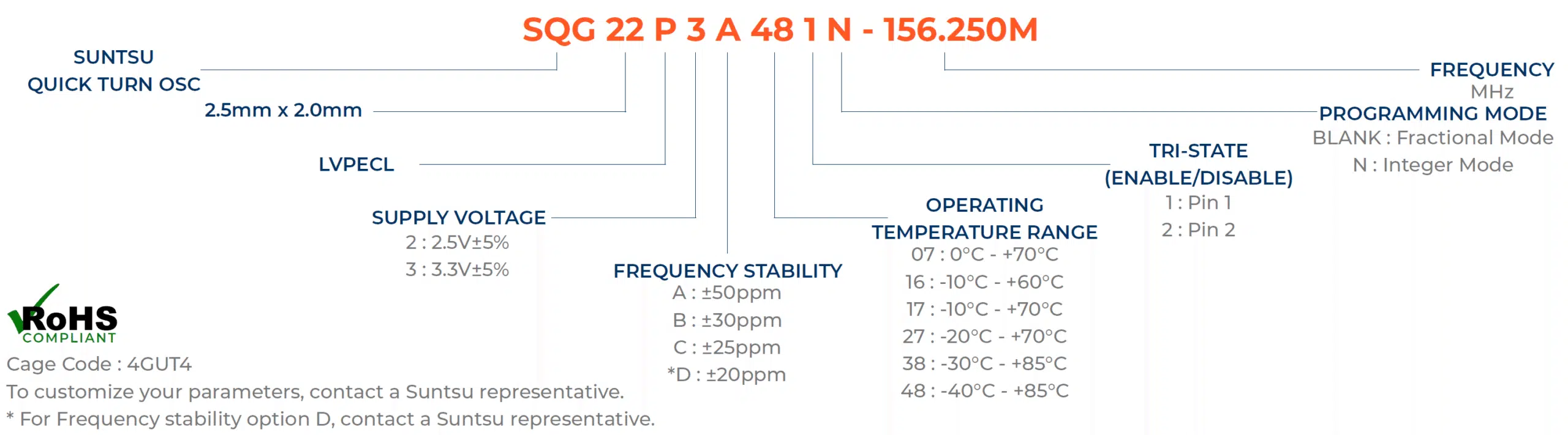

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 8 | 1500 | ||
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 2.5V Option | V | 2.375 | 2.5 | 2.625 | |
| Supply Voltage (VDD) - 3.3V Option | V | 3.125 | 3.3 | 3.465 | |
| Current (IDD) - 2.5V Option | mA | 60 | |||
| Current (IDD) - 3.3V Option | mA | 65 | |||
| Output Load (LVPECL) | Ω | 50 | 50Ω into VDD-2.0VDC | ||
| Output Logic Levels High (VOH) | V | VDD-1.025 | |||
| Output Logic Levels Low (VOL) | V | VDD-1.62 | |||
| Rise (TR) and Fall (TF) Time | ns | 1 | |||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 10 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 0.5 | 1.5 | Fractional Mode | |
| Phase Jitter (12kHz ~ 20MHz) | ps | 0.3 | 0.5 | Integer Mode |

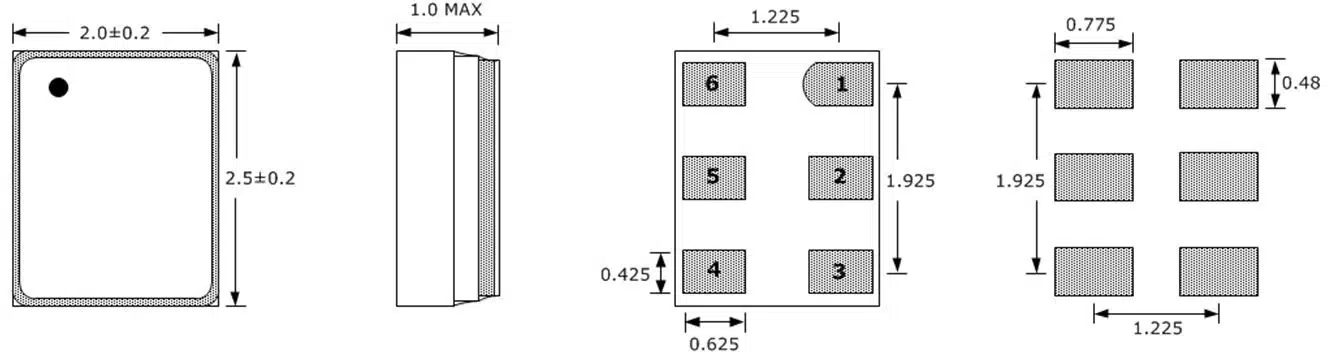

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
