SQG32C Series – 3.2MM X 2.5MM Ceramic SMD Quick Turn 6 Pad CMOS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Wide Frequency Range
• CMOS
• Programmed Oscillator
• Tape and Reel

Applications

• Ethernet (10G/40G/100G)
• Base Stations
• Wi-Fi
• DSL/ADSL
• Communications

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Wide Frequency Range
• CMOS
• Programmed Oscillator
• Tape and Reel

Applications

• Ethernet (10G/40G/100G)
• Base Stations
• Wi-Fi
• DSL/ADSL
• Communications

Part Number Builder

Please choose your parameters to build a part number:

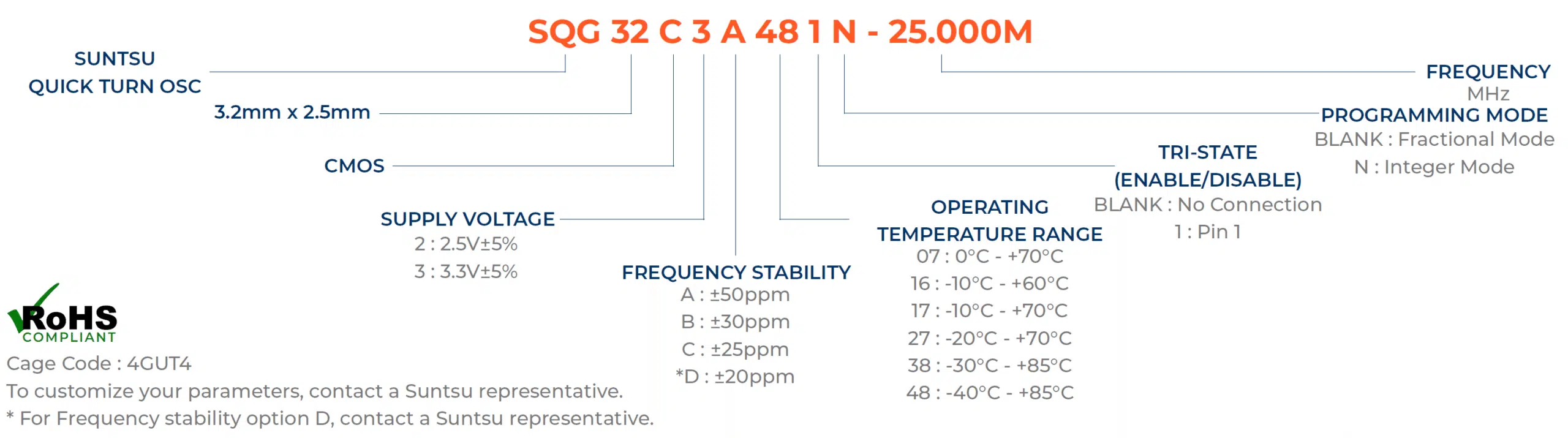

Part Numbering Guide

SQG32C-part-number-guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz8250
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 2.5V OptionmA35
Current (IDD) - 3.3V OptionmA40
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*V
Rise (TR) and Fall (TF) Timens3
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps0.51.5Fractional Mode
Phase Jitter (12kHz ~ 20MHz)ps0.30.5Integer Mode

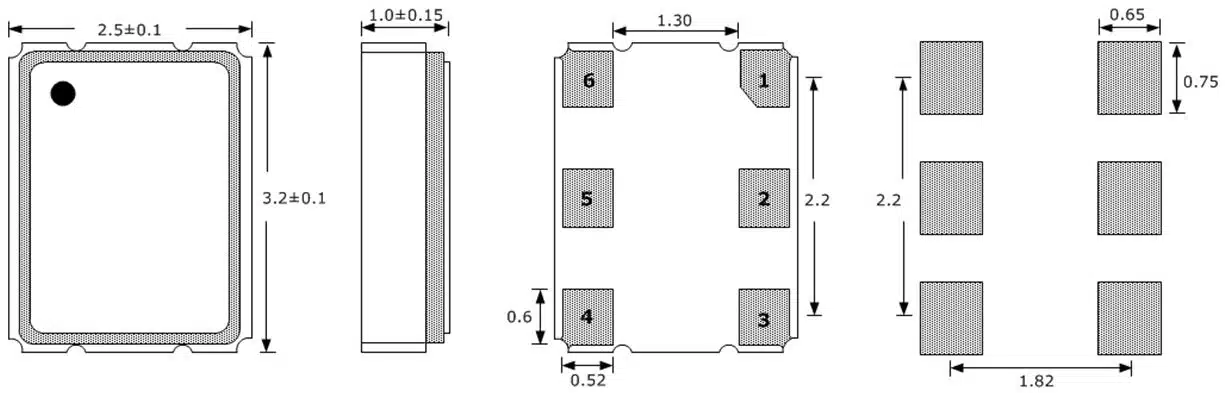

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SQG32C 2d
SQG32C Table
