SQG32L Series – 3.2MM X 2.5MM Ceramic SMD Quick Turn 6 Pad LVDS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Wide Frequency Range
• LVDS
• Programmed Oscillator
• Tape and Reel

Applications

• Ethernet (10G/40G/100G)
• Base Stations
• Wi-Fi
• DSL/ADSL
• Communications

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Wide Frequency Range
• LVDS
• Programmed Oscillator
• Tape and Reel

Applications

• Ethernet (10G/40G/100G)
• Base Stations
• Wi-Fi
• DSL/ADSL
• Communications

Part Number Builder

Please choose your parameters to build a part number:

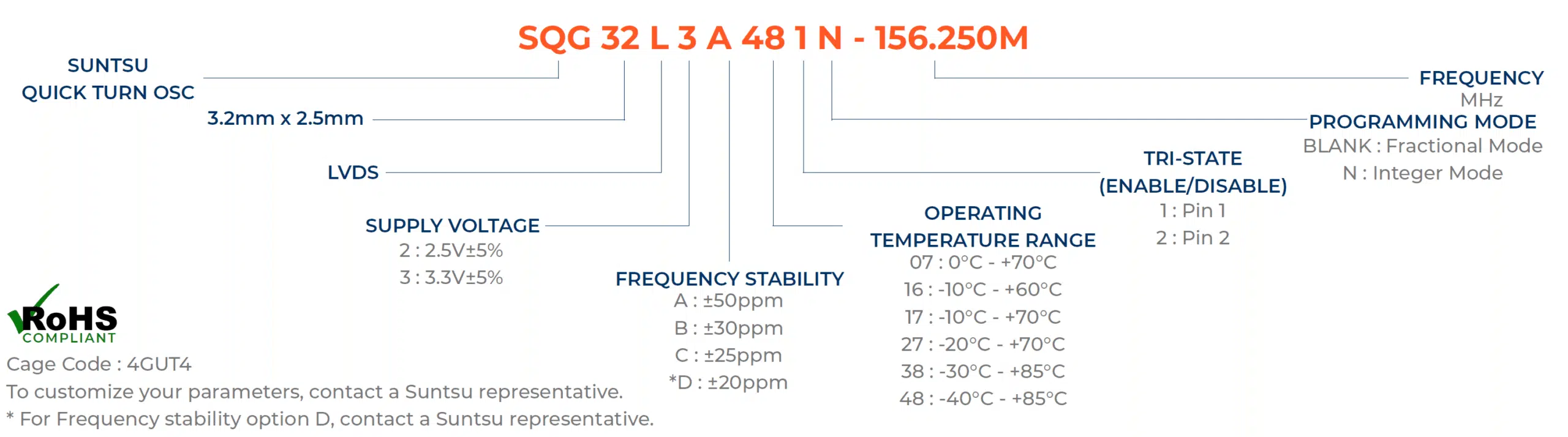

Part Numbering Guide

SQG32L-part-number-guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz81500
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 2.5V OptionmA35
Current (IDD) - 3.3V OptionmA40
Output Load (LVDS)Ω100
Output Logic Levels High (VOH) V1.431.6
Output Logic Levels Low (VOL) V0.91.1
Differential Output Voltage (VOD)mV247330545
Differential Output Error (DVOD)mV50
Offset Voltage(VOS)V1.1251.2501.375
Offset Error (DVOS)mV50
Rise (TR) and Fall (TF) Timens1
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps0.51.5Fractional Mode
Phase Jitter (12kHz ~ 20MHz)ps0.30.5Integer Mode

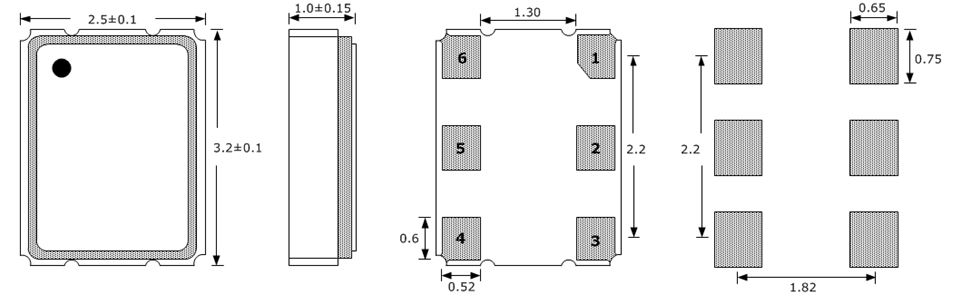

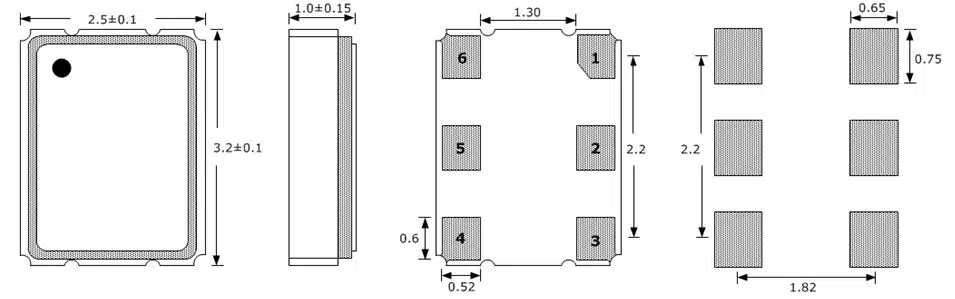

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
