SQG75P Series – 7.0MM X 5.0MM Ceramic SMD Quick Turn 6 Pad LVPECL Oscillator

3D Product View

3D View


• ±20ppm (Frequency Stability) Available
• Ceramic Package
• Programmed Oscillator
• Tape and Reel


• Micro Processors
• Storage Area/Networking
• Digital Video

Part Number Builder

Please choose your parameters to build a part number:

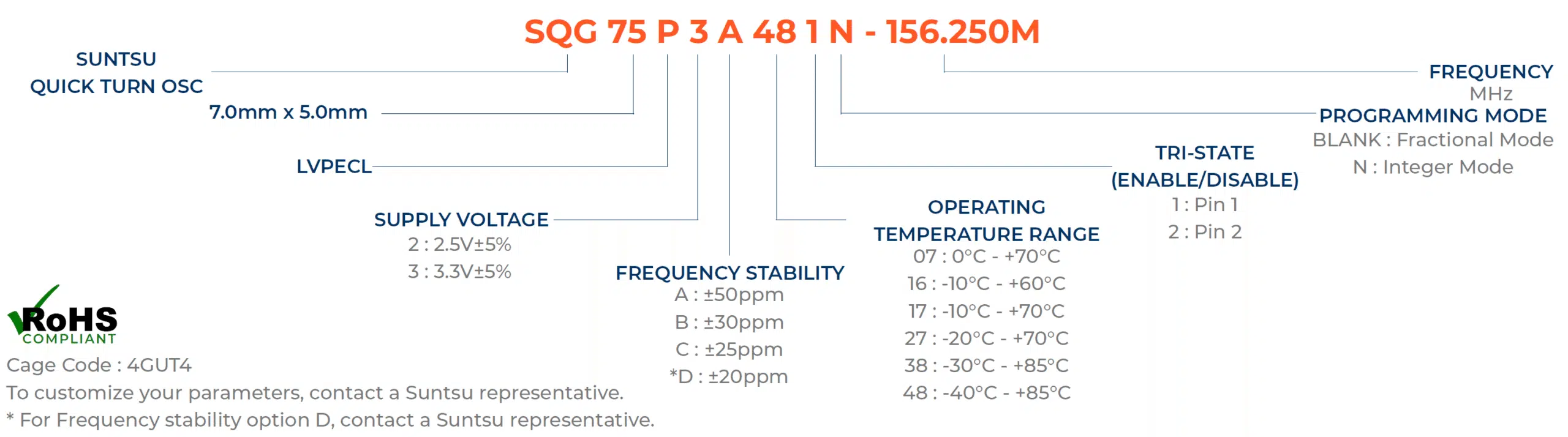

Part Numbering Guide


Electrical Parameters

Frequency RangeMHz81500
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 2.5V OptionmA65
Current (IDD) - 3.3V OptionmA70
Output Load (LVPECL)Ω5050Ω into VDD-2.0VDC
Output Logic Levels High (VOH) VVDD-1.025
Output Logic Levels Low (VOL) VVDD-1.62
Rise (TR) and Fall (TF) Timens1
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps0.71.5Fractional Mode
SQG75P-part-number-guideps0.30.5Integer Mode

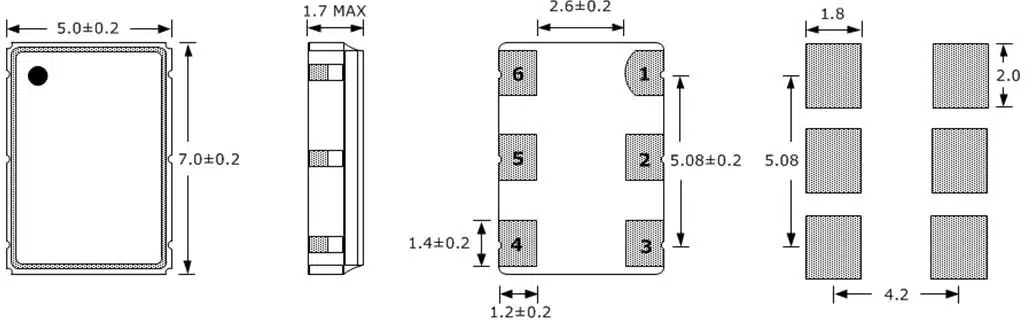

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
