SUO22P Series – 2.5MM X 2.0MM Ceramic SMD Ultra Low Jitter 6 Pad LVPECL Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVPECL
• Tape and Reel
• Ultra Low Phase Jitter

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVPECL
• Tape and Reel
• Ultra Low Phase Jitter

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

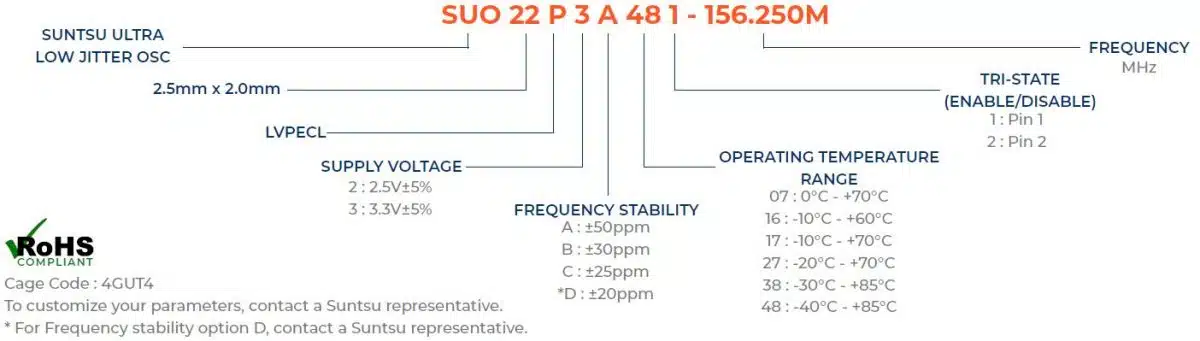

Part Numbering Guide - SUO22P

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz13.5156.25
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 2.5V OptionmA50
Current (IDD) - 3.3V OptionmA50
Output Load (LVPECL)Ω5050Ω into VDD-2.0VDC
Output Logic Levels High (VOH) VVDD-1.025
Output Logic Levels Low (VOL) VVDD-1.62
Rise (TR) and Fall (TF) Timens1
Symmetry (Duty Cycle)%45505520%-80% Output Swing level
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 5MHz)ps0.61.0Freq. <40.000MHz
Phase Jitter (12kHz ~ 20MHz)ps0.40.8Freq. 40.000MHz - 124.999MHz
Phase Jitter (12kHz ~ 20MHz)ps0.10.2Freq. 125.000MHz - 156.250MHz

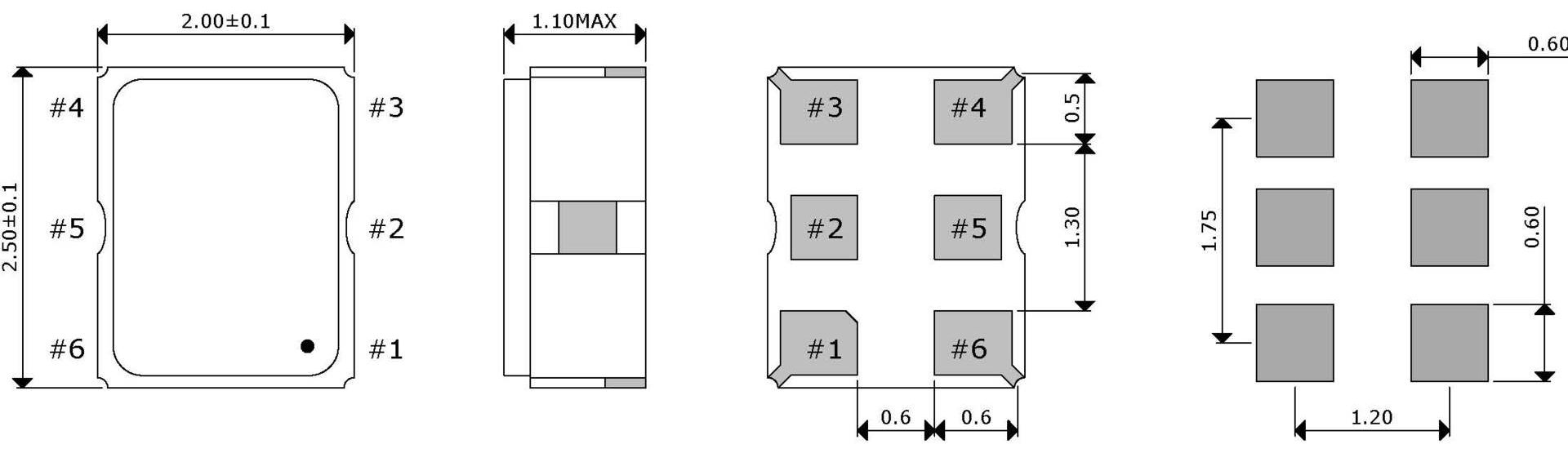

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SUO22P
SUO22P
