SUO32C Series – 3.2mm X 2.5mm Ceramic SMD Ultra Low Jitter 4 Pad CMOS Oscillator

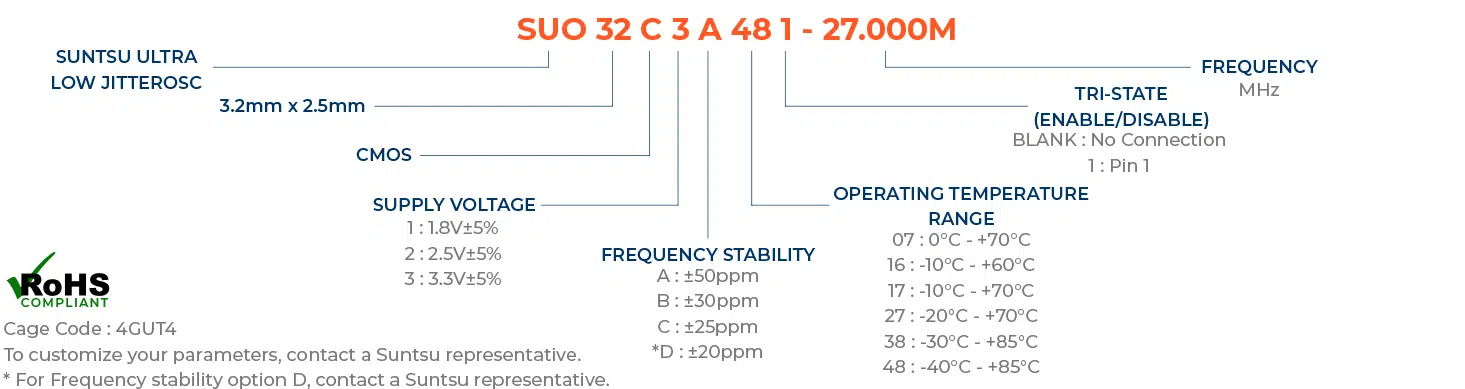

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 20 | 50 | See part numbering guide for options. | |
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) | V | 1.8 | 3.3 | ||
| Current (IDD) | mA | 15 | |||
| Output Load (CMOS) | pF | 15 | |||
| Output Logic Levels High (VOH) | V | 0.9*VDD | |||
| Output Logic Levels Low (VOL) | V | 0.1*VDD | |||
| Rise (TR) and Fall (TF) Time | |||||
| Symmetry (Duty Cycle) | % | 40 | 50 | 60 | |
| Tri-State Input Voltage - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 4 | |||
| Phase Noise @ 10Hz | dBc/Hz | -101 | |||
| Phase Noise @ 100Hz | dBc/Hz | -134 | |||
| Phase Noise @ 1KHz | dBc/Hz | -161 | |||
| Phase Noise @ 10KHz | dBc/Hz | -167 | |||
| Phase Noise @ 100KHz | dBc/Hz | -173 | |||
| Phase Noise @ 1MHz | dBc/Hz | -173 | |||
| Phase Noise @ 5MHz | dBc/Hz | -173 | |||
| Phase Jitter (12kHz ~ 5MHz) | fs | 43 | At 24.576MHz |

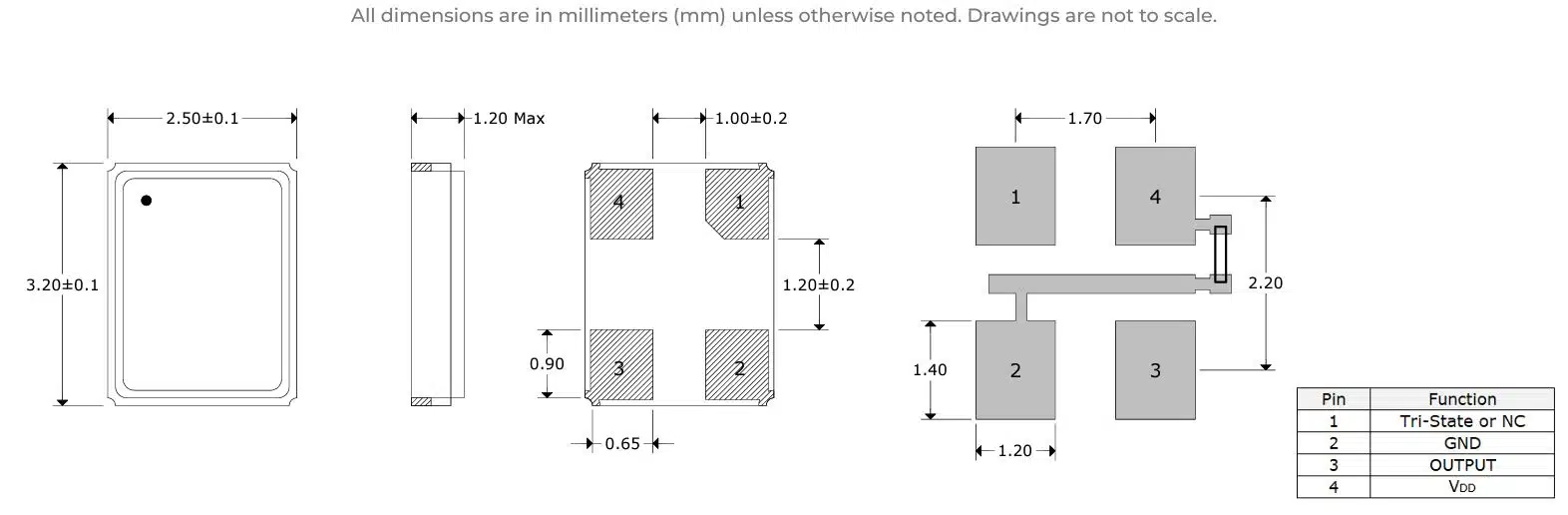

Outline Drawing & Recommended Landed Pattern
