SUO32P Series – 3.2MM X 2.5MM Ceramic SMD Ultra Low Jitter 6 Pad LVPECL Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVPECL
• Ultra Low Phase Jitter
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVPECL
• Ultra Low Phase Jitter
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

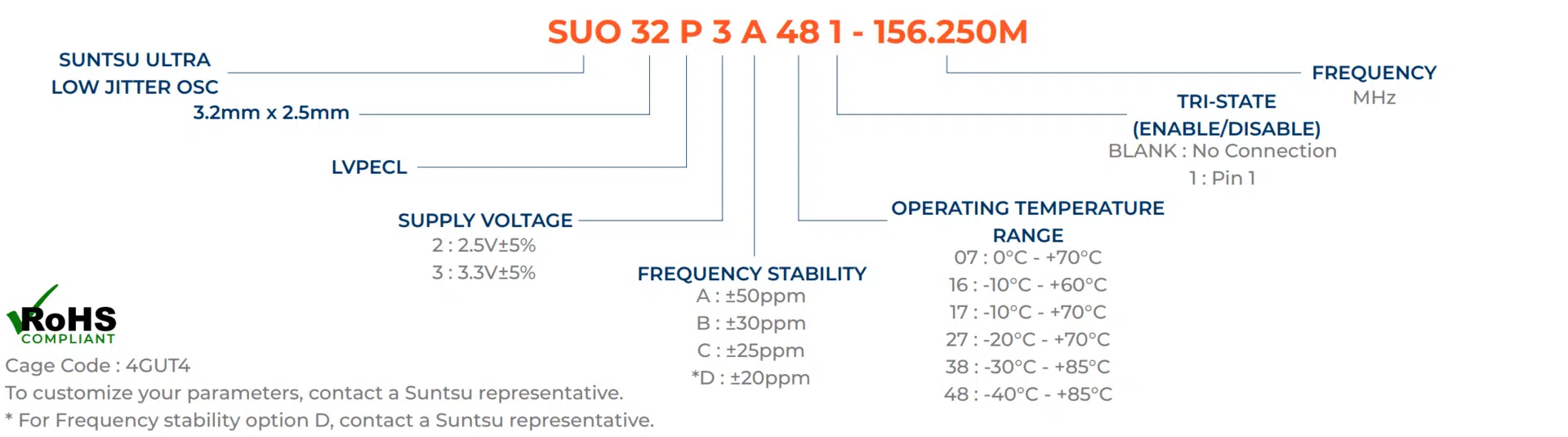

SUO32P-part-numbering-guide-updated

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz80170
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 3.3V OptionmA70
Output Load (LVPECL)Ω5050Ω into VDD-2.0VDC
Output Logic Levels High (VOH) V2.2152.420
Output Logic Levels Low (VOL) V1.47801.745
Rise (TR) and Fall (TF) Timens0.40.6
Symmetry (Duty Cycle)%45505520%-80% Output Swing level
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems5
Phase Jitter (12kHz ~ 20MHz)ps0.0470.1
