SUO53L Series – 5.0MM X 3.2MM Ceramic SMD Ultra Low Jitter 6 Pad LVDS Oscillator

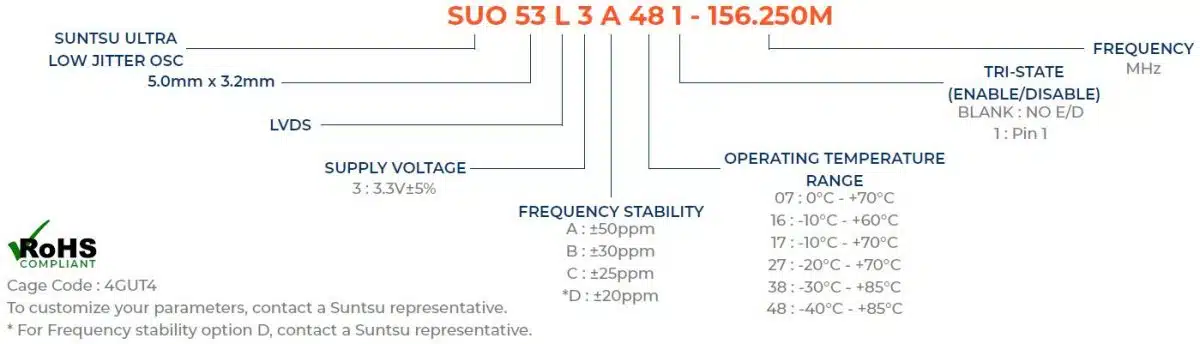

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 100 | 320 | ||
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 1.8V Option | V | 1.1710 | 1.8 | 1.890 | |
| Supply Voltage (VDD) - 2.5V Option | V | 2.375 | 2.5 | 2.625 | |
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Current (IDD) | mA | 35 | |||
| Output Load (LVDS) | Ω | 100 | |||
| Output Logic Levels High (VOH) | V | 1.43 | 1.6 | ||
| Output Logic Levels Low (VOL) | V | 0.9 | 1.1 | ||
| Differential Output Voltage (VOD) | mV | 247 | 330 | 454 | |
| Differential Output Error (DVOD) | mV | 50 | |||
| Offset Voltage(VOS) | V | 1.125 | 1.250 | 1.375 | |
| Offset Error (DVOS) | mV | -50 | 50 | ||
| Rise (TR) and Fall (TF) Time | ns | 0.25 | 0.5 | ||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 5.0 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 0.067 | 0.1 |

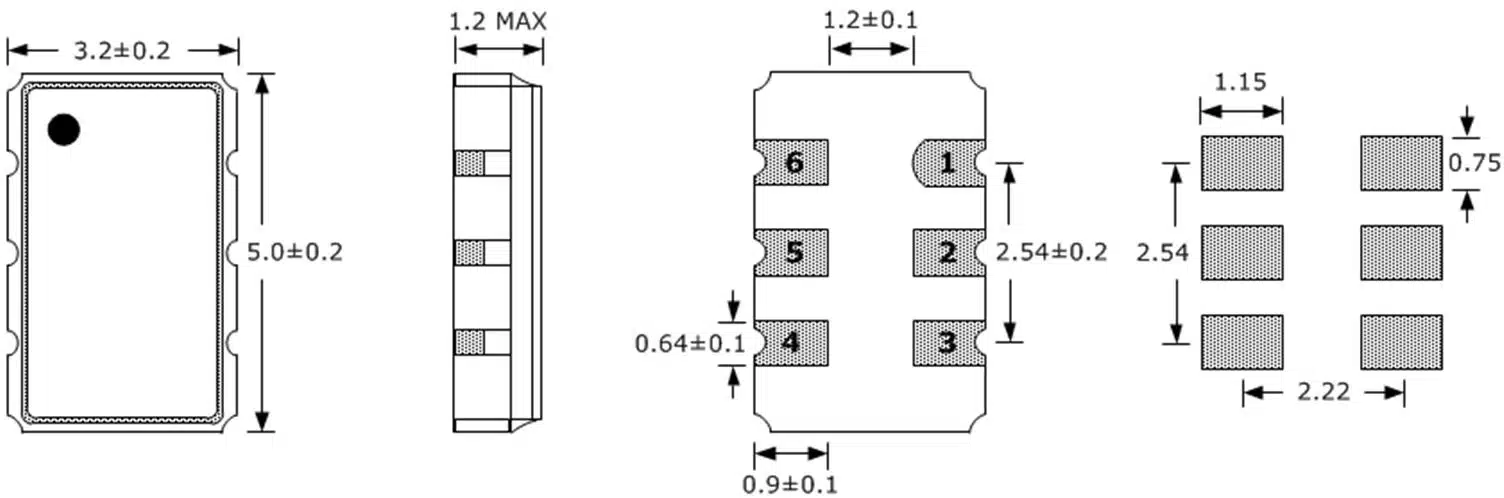

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
