SXO11C Series – 1.6MM X 1.2MM Ceramic SMD 4 Pad CMOS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Mobile Communication
• Portable Electronics
• PDA

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Mobile Communication
• Portable Electronics
• PDA

Part Number Builder

Please choose your parameters to build a part number:

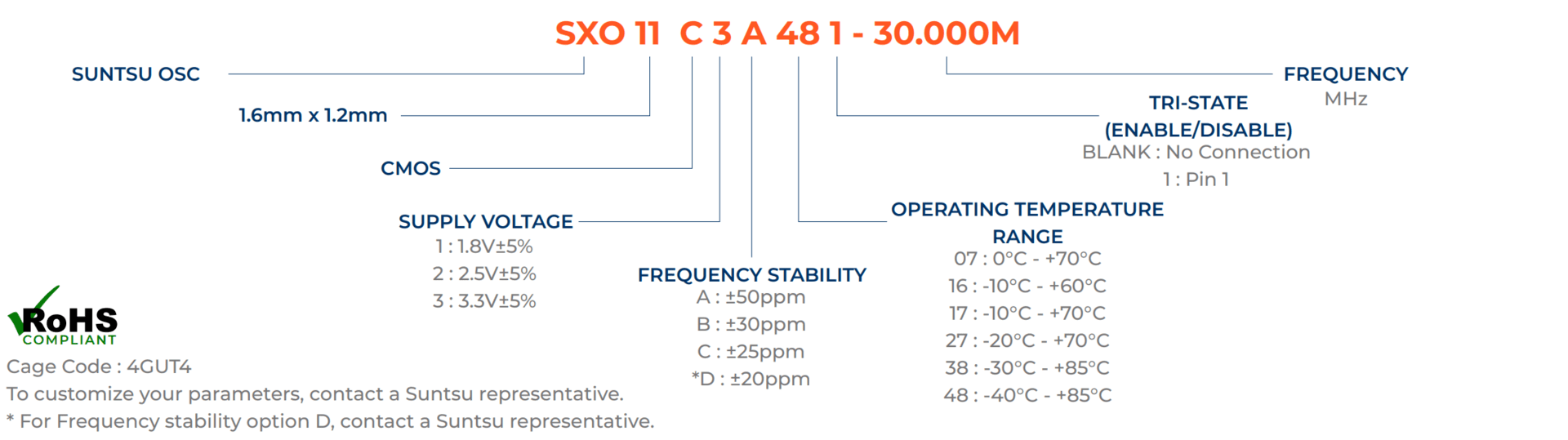

Part Numbering Guide

SXO11C-part-numbering-guide-updated

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1133
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.7101.81.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD)mA10
Output Load (CMOS)pF15
Output Logic Levels High (VOH) VVDD-0.4
Output Logic Levels Low (VOL) VVDD+0.4
Rise (TR) and Fall (TF) Timens4.5
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems5
Phase Jitter (12kHz ~ 20MHz)ps1

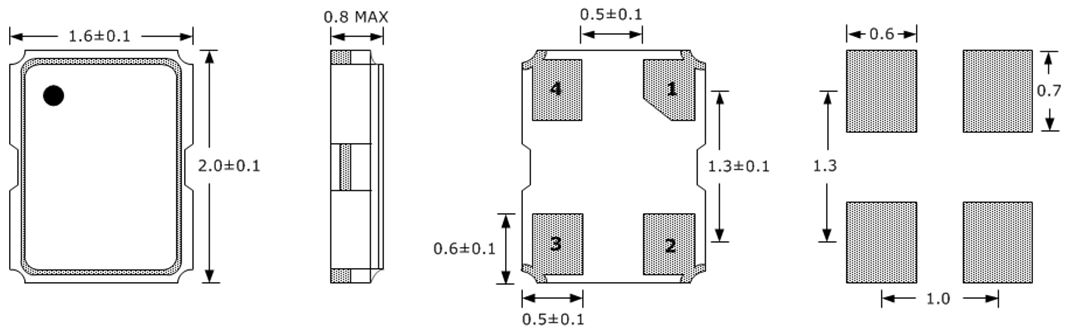

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
