SXO22C Series – 2.5MM X 2.0MM Ceramic SMD 4 Pad CMOS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• SONET/SDH/DWDM
• Storage Area/Networking
• Digital Video
• Base Stations

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• SONET/SDH/DWDM
• Storage Area/Networking
• Digital Video
• Base Stations

Part Number Builder

Please choose your parameters to build a part number:

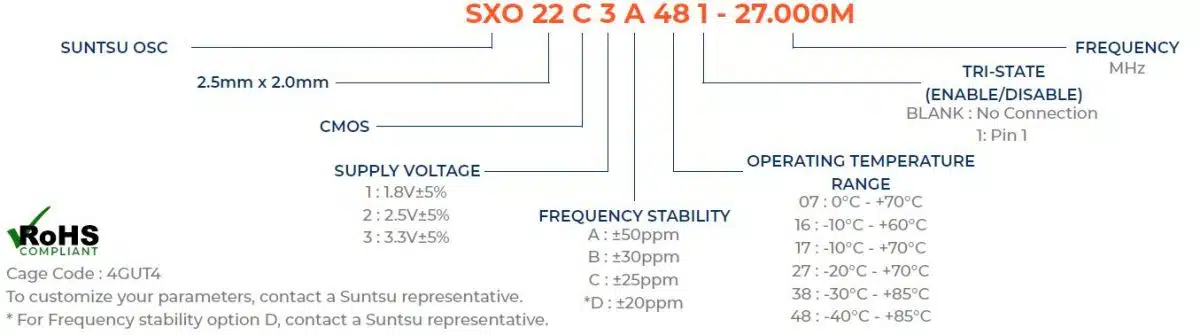

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangekHz32.768
Frequency RangeMHz1110
Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.)ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.7101.81.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) By Frequency Range1.8V2.5V3.3V
         32.768KHzmA345Maximum Value
         1.0000MHz - 15.999MHzmA357Maximum Value
         16.000MHz - 39.999MHzmA5710Maximum Value
         40.000MHz - 59.999MHzmA101315Maximum Value
         60.000MHz - 110.000MHzmA152035Maximum Value
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Time By Frequency Range :-
         32.768KHzns200
         1.0000MHz - 15.999MHzns10
         16.000MHz - 39.999MHzns8
         40.000MHz - 59.999MHzns6
         60.000MHz - 110.000MHzns4
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

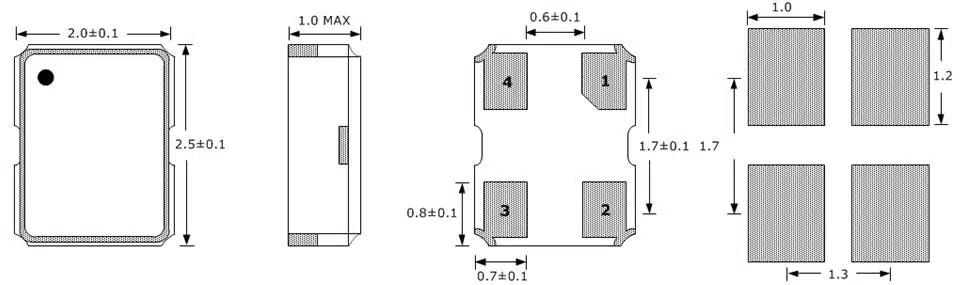

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
