SXO32C Series – 3.2MM X 2.5MM Ceramic SMD 4 Pad CMOS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• SNOET/SDH/DWDM
• Storage Area/Networking
• Digital Video
• Base Stations

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• SNOET/SDH/DWDM
• Storage Area/Networking
• Digital Video
• Base Stations

Part Number Builder

Please choose your parameters to build a part number:

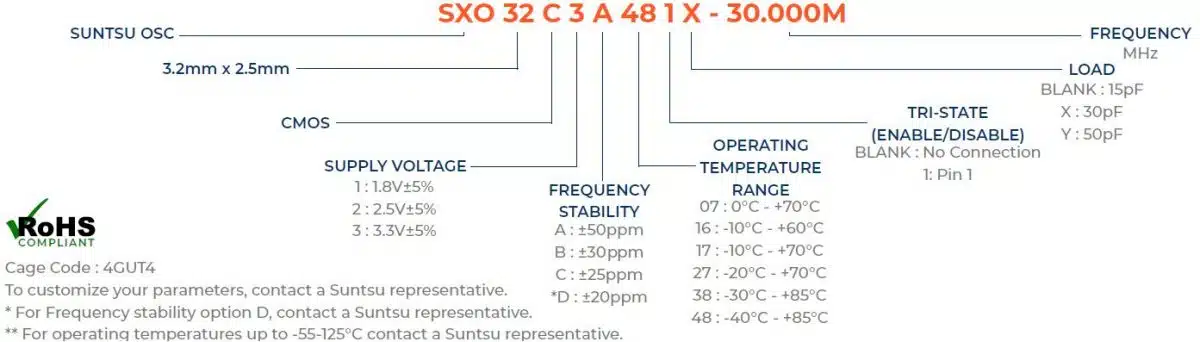

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangekHz32.768
Frequency RangeMHz1133
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.7101.81.890
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) By Frequency Range1.8V2.5V3.3V
         32.768KHzmA355Maximum Value
         1.0000MHz - 29.999MHzmA4810Maximum Value
         30.000MHz - 74.999MHzmA61517Maximum Value
         75.000MHz - 133.000MHzmA122025Maximum Value
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Time By Frequency Range :-
         32.768KHzns200
         1.0000MHz - 29.999MHzns10
         30.000MHz - 74.999MHzns8
         75.000MHz - 133.000MHzns5
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

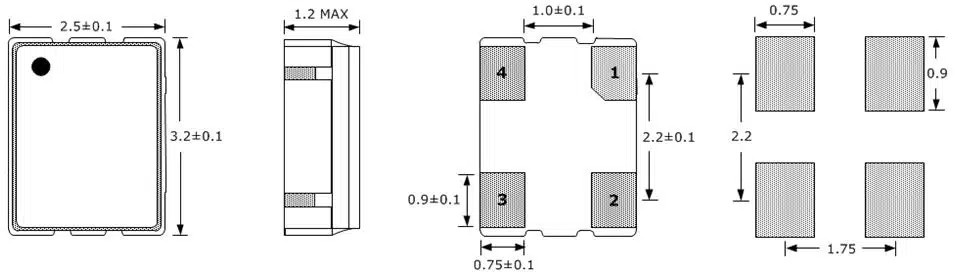

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
