SXO75L Series – 7.0MM X 5.0MM Ceramic SMD 6 Pad LVDS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

Part Number Builder

Please choose your parameters to build a part number:

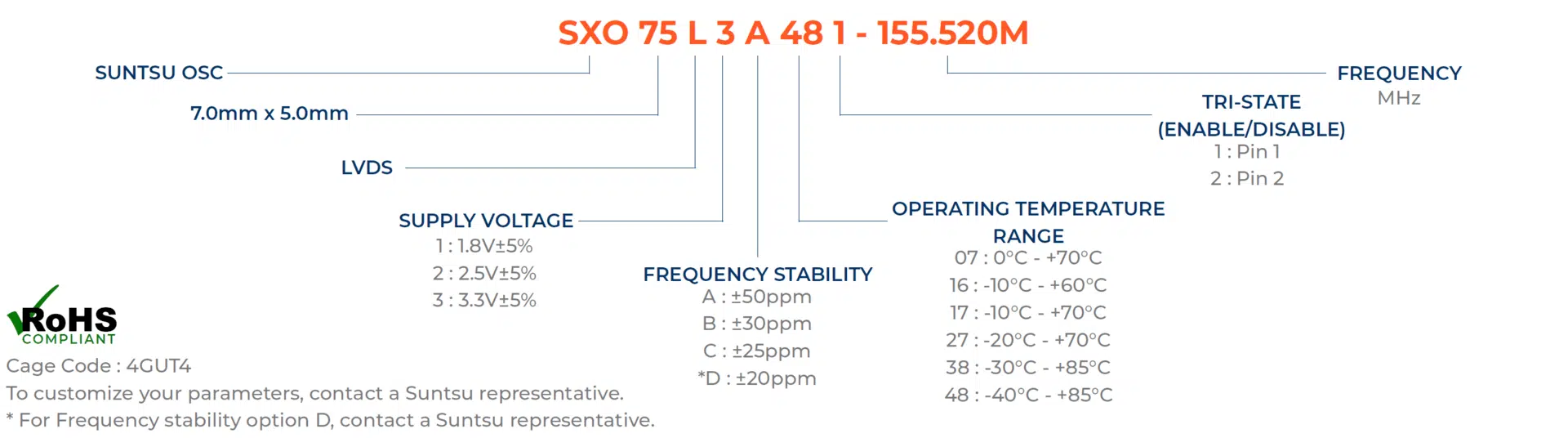

Part Numbering Guide

sxo75l-part-numbering-guide-03132023

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz80260
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.711.81.89
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Current (IDD) - 1.8V OptionmA40
Current (IDD) - 2.5V OptionmA50
Current (IDD) - 3.3V OptionmA60
Output Load (LVDS)Ω100
Output Logic Levels High (VOH) V1.431.6
Output Logic Levels Low (VOL) V0.91.1
Differential Output Voltage (VOD)mV247330545
Differential Output Error (DVOD)mV50
Offset Voltage(VOS)V1.1251.2501.375
Offset Error (DVOS)mV50
Rise (TR) and Fall (TF) Timens0.40.8
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps041

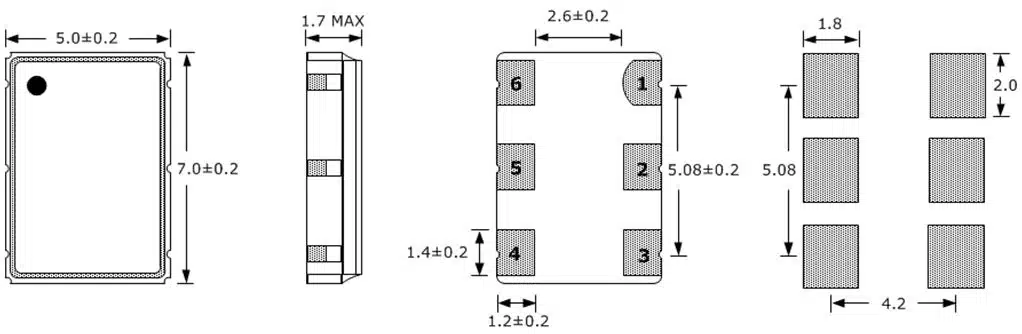

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
