SXOPJC Series – 14.0MM X 9.8MM Plastic SMD 4 Pad CMOS Oscillator

3D Product View

3D View

Features

• ±25ppm (Frequency Stability) Available
• Plastic J-Lead Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• FPGA
• Storage Area/Networking
• Digital Video
• Portable Computers

3D Product View

3D View

Features

• ±25ppm (Frequency Stability) Available
• Plastic J-Lead Package
• CMOS
• Tape and Reel

Applications

• Micro Processors
• FPGA
• Storage Area/Networking
• Digital Video
• Portable Computers

Part Number Builder

Please choose your parameters to build a part number:

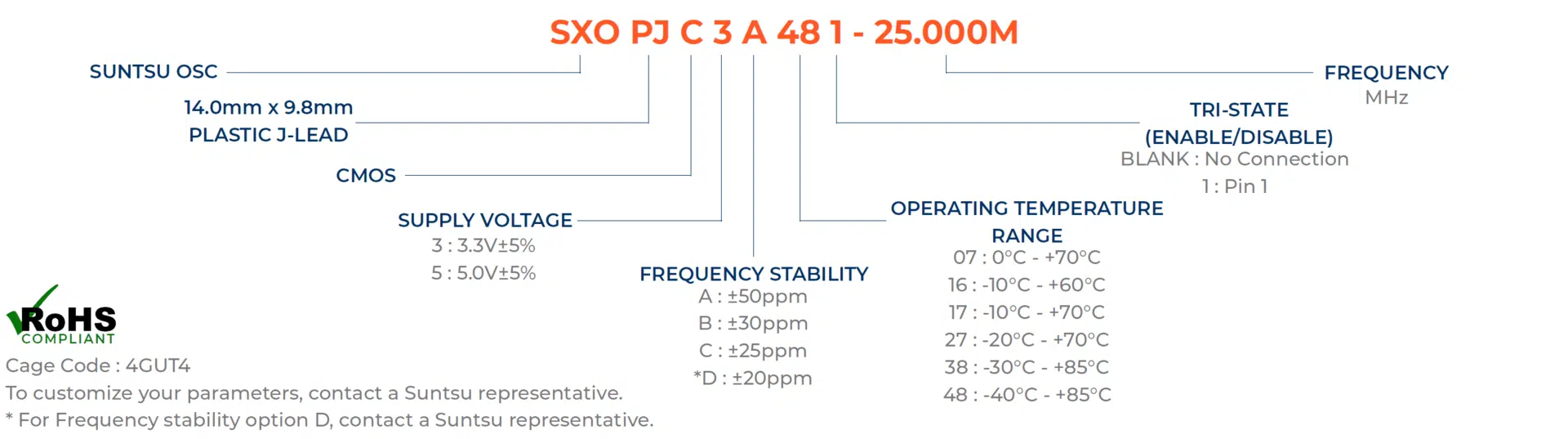

Part Numbering Guide

SXOPJC-part-numbering-guide-updated

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1125
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250
Current (IDD) - 3.3V OptionmA35
Current (IDD) - 5.0V OptionmA45
Output Load (CMOS)pF15
Output Logic Levels High (VOH) V0.9*VDD
Output Logic Levels Low (VOL) V0.1*VDD
Rise (TR) and Fall (TF) Time By Frequency Range :-
         1.0000MHz - 29.999MHzns7
         30.000MHz - 69.999MHzns5
         70.000MHz - 125.000MHzns4
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

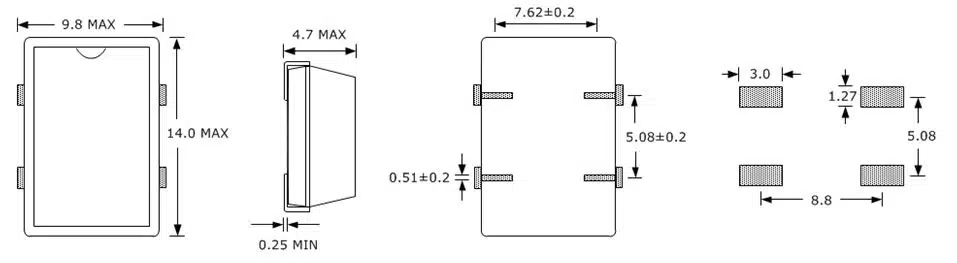

Outline Drawing & Recommended Landed Pattern
