STC75C Series – 7.0MM X 5.0MM Ceramic SMD 10 Pad CMOS (VC)TCXO

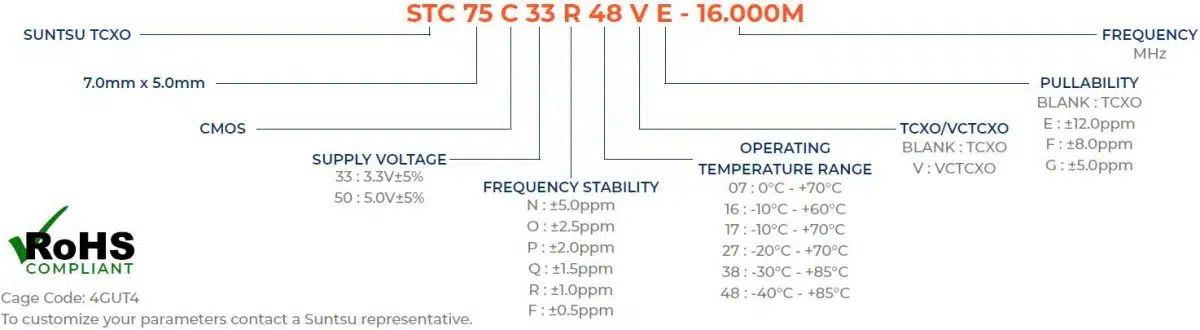

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 5 | 40 | ||
| Frequency Tolerance at +25ºC | ppm | -2.0 | +2.0 | 1 hour after reflow | |
| Freq. Stability vs. Op Temp. | ppm | -0.5 | +0.5 | See part numbering guide for options. | |
| Freq. Stability vs. Supply Voltage | ppm | -0.5 | +0.5 | ±5% Change | |
| Freq. Stability vs. Load | ppm | -0.2 | +0.2 | ±10% Change | |
| Freq. Stability vs. Aging/Year | ppm | -1.0 | +1.0 | 1 year | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) | V | 3.135 | 3.3 | 3.465 | See part numbering guide for options. |
| Current (IDD) | mA | 6 | |||
| Current Voltage (VC, VCTCXO) | V | 0 | VDD | Center Voltage: VDD*50% | |
| Pullability (VCTCXO) | ppm | ±5.0 | ±12.0 | See part numbering guide for options. | |
| Linearity (VCTCXO) | % | 10 | |||
| Output Load (CMOS) | pF | 15 | |||
| Output Logic HIGH Level (VOH) | V | 0.9*VDD | |||
| Output Logic LOW Level (VOL) | V | 0.1*VDD | |||
| Rise (TR) And Fall (TF) Time | ns | 5 | |||
| Symmetry (Duty Cycle) | % | 40 | 50 | 60 | |
| Tri-State Input Voltage (Enable) | V | 0.7*VDD | |||
| Tri-State Input Voltage (Disable) | V | 0.3*VDD | |||
| Start-Up Time | ms | 2 | |||
| VC Input Impedance (VCTCXO) | kΩ | 100 | |||
| Phase Noise (Typical) 100Hz Offset | dBc/Hz | -120 | |||
| Phase Noise (Typical) 1KHz Offset | dBc/Hz | -140 | |||
| Phase Noise (Typical) 10KHz Offset | dBc/Hz | -148 |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
