SUS75K Series - 7.0MM X 5.0MM Ultra Stable SMD 10 Pad Clipped Sinewave (VC)TCXO

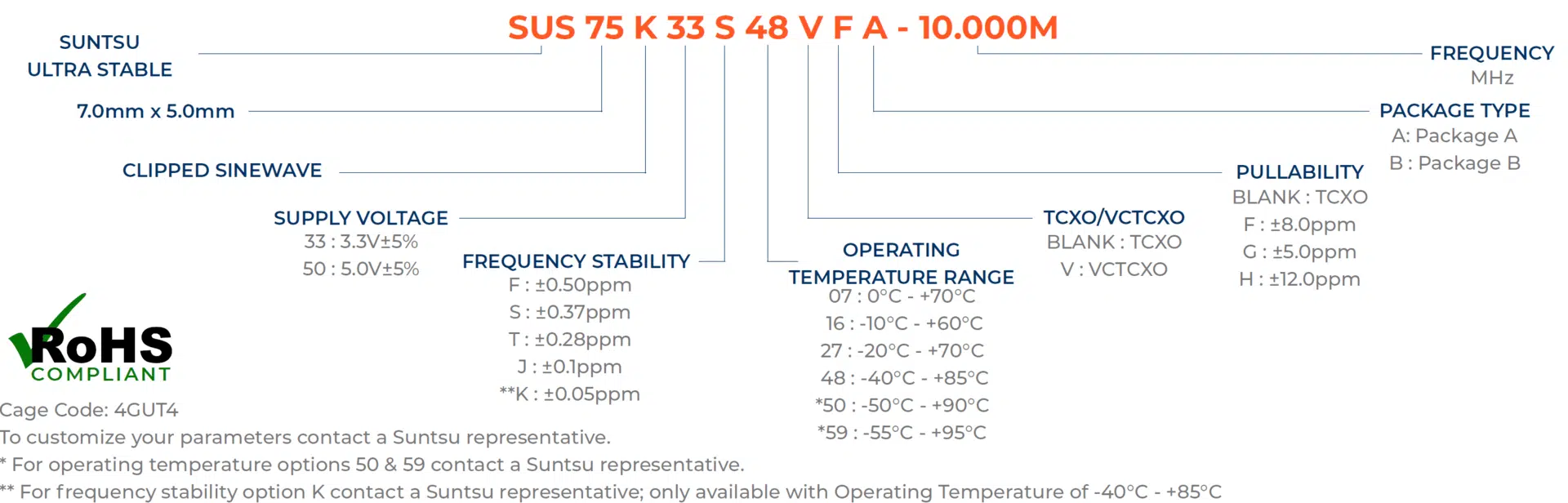

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 10 | 52 | ||
| Frequency Tolerance | ppm | -0.5 | 0.5 | at 25°C | |
| Freq. Stability vs. Op Temp. (ref at 25°C) | ppm | ±0.05 | ±0.5 | See part numbering guide for options. | |
| Supply Sensitivity | ppm | ±0.1 | VDD±5% Change | ||
| Load Sensitivity | ppm | ±0.2 | Load±5% | ||
| Aging/First Year | ppm | ±1.0 | Standard | ||
| Operating Temperature | °C | -55 | 95 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
| Current (IDD) | mA | 15 | |||
| Voltage (VC, VCTCXO) - 3.3V Option | V | 0.5 | 2.5 | Center Voltage : VDD*50% | |
| Voltage (VC, VCTCXO) - 5.0V Option | V | 0.5 | 2.5 | ||
| Pullability (VCTCXO) | ppm | ±5.0 | ±12.0 | See part numbering guide for options. | |
| Linearity (VCTCXO) | % | 10 | |||
| Output Level (Clipped Sinewave) | Vp-p | 0.8 | |||
| Output Load (Clipped Sinewave) | kΩ//pF | 10//10 | |||
| Tuning Slope | Positive | ||||
| Start-Up Time | ms | 10 | |||
| VC Input Impedance (VCTCXO) | kΩ | 200 | |||
| Phase Noise (Typical) 10Hz Offset | dBc/Hz | -92 | |||
| Phase Noise (Typical) 100Hz Offset | dBc/Hz | -120 | |||
| Phase Noise (Typical) 1KHz Offset | dBc/Hz | -140 | |||
| Phase Noise (Typical) 10KHz Offset | dBc/Hz | -145 | |||
| Phase Noise (Typical) 100KHz Offset | dBc/Hz | -150 |
Outline Drawing & Recommended Landed Pattern
