SQV32C Series – 3.2MM X 2.5MM Ceramic SMD 6 Pad CMOS VCXO

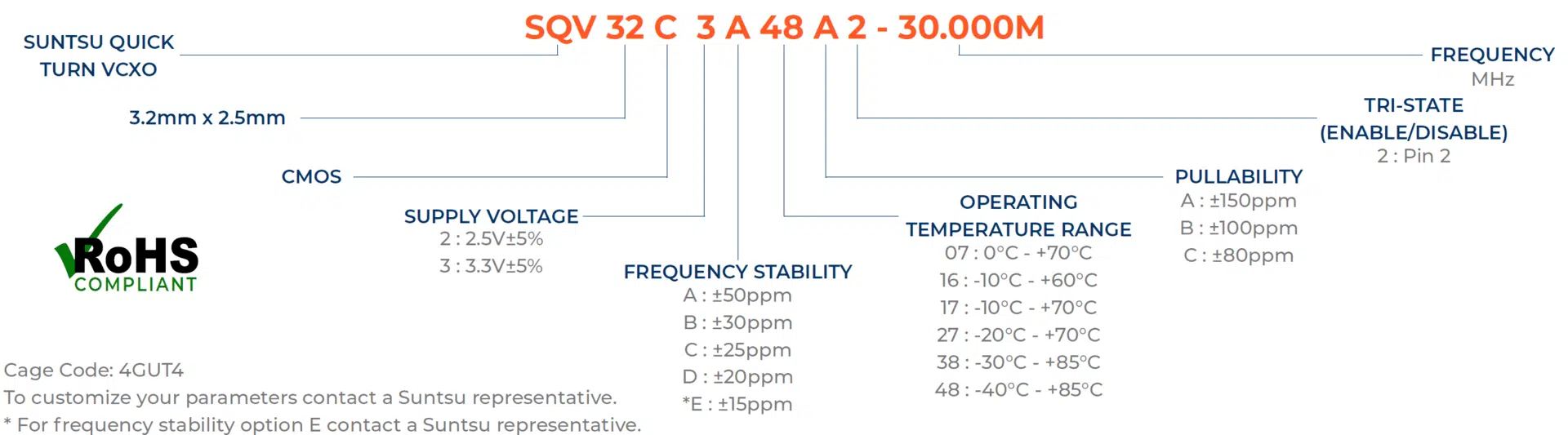

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 8 | 1500 | ||
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 2.5V Option | V | 2.375 | 2.5 | 2.625 | |
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Current (IDD) - 2.5V Option | mA | 35 | |||
| Current (IDD) - 3.3V Option | mA | 45 | |||
| Current Voltage (VC) 2.5V Option | V | 0 | 2.5 | ||
| Current Voltage (VC) 3.3V Option | V | 0 | 3.3 | ||
| Pullability | ppm | ±50 | ±100 | ±150 | See part numbering guide for options. |
| Linearity | % | 10 | |||
| Output Load (CMOS) | pF | 15 | |||
| Output Logic Levels High (VOH) | V | 0.9*VDD | |||
| Output Logic Levels Low (VOL) | V | 0.1*VDD | |||
| Rise (TR) and Fall (TF) Time | ns | 3 | |||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage(3.3V) - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage(3.3V) - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 10 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 0.7 | 1.5 |
Outline Drawing & Recommended Landed Pattern
