SQV53L Series – 5.0MM X 3.2MM Ceramic SMD Quick Turn 6 Pad LVDS VCXO

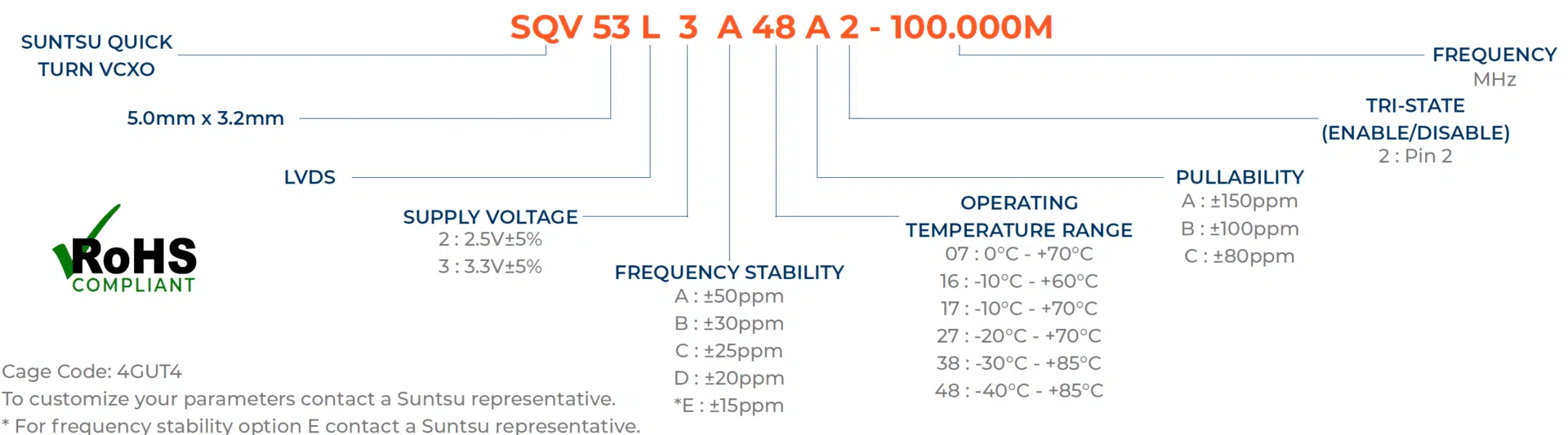

Part Numbering Guide
Electrical Parameters
Parameters | Units | Min | Typical | Max | Remarks |
---|---|---|---|---|---|
Frequency Range | MHz | 8 | 1500 | ||
Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
Storage Temperature | °C | -55 | +125 | ||
Supply Voltage (VDD) - 2.5V Option | V | 2.5 | 2.625 | ||
Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
Current (IDD) - 2.5V Option | mA | 65 | |||
Current (IDD) - 3.3V Option | mA | 70 | |||
Current Voltage (VC) 2.5V Option | V | 0 | 2.5 | ||
Current Voltage (VC) 3.3V Option | V | 0 | 3.3 | ||
Pullability | ppm | ±50 | ±100 | ±150 | See part numbering guide for options. |
Linearity | % | 10 | |||
Output Load (LVDS) | Ω | 100 | |||
Output Logic Levels High (VOH) | V | 1.43 | 1.6 | ||
Output Logic Levels Low (VOL) | V | 0.9 | 1.1 | ||
Differential Output Voltage (VOD) | mV | 247 | 330 | 454 | |
Differential Output Voltage (DVOD) | mV | 50 | |||
Offset Voltage (VOS) | V | 1.125 | 1.250 | 1.375 | |
Offset Error (DVOS) | mV | 50 | |||
Rise (TR) and Fall (TF) Time | ns | 1 | |||
Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
Tri-State Input Voltage(3.3V) - Enable | V | 0.7*VDD | No Connection | ||
Tri-State Input Voltage(3.3V) - Disable | V | 0.3*VDD | |||
Start-Up Time | ms | 10 | |||
Phase Jitter (12kHz ~ 20MHz) | ps | 0.7 | 1.5 |
