SVCF6C Series – 14.3MM X 8.7MM FR4 PCB 6 Pad CMOS VCXO

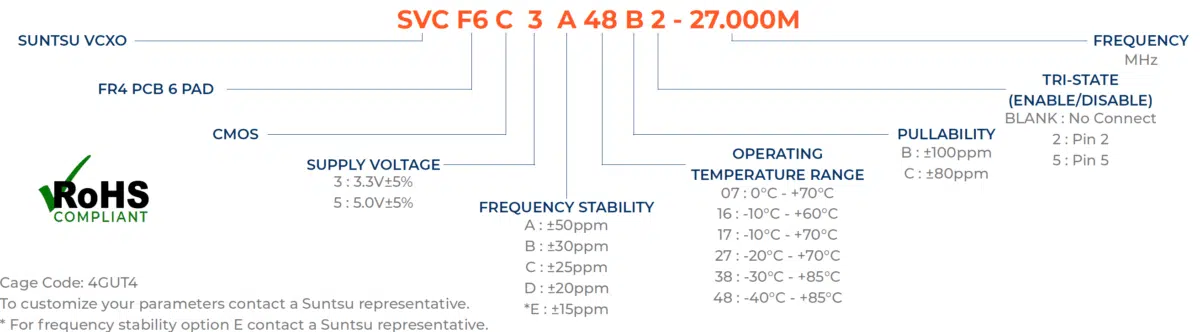

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 10 | 250 | ~160MHz @ 5.0V | |
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -45 | +90 | ||
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
| Current (IDD) - 3.3V Option | mA | 40 | |||
| Current (IDD) - 5.0V Option | mA | 60 | |||
| Current Voltage (VC) - 3.3V Option | V | 0 | 3.3 | ||
| Current Voltage (VC) - 5.0V Option | V | 0 | 5.0 | ||
| Pullability | ppm | ±50 | ±100 | See part numbering guide for options. | |
| Linearity | % | 10 | |||
| Output Load (CMOS) | pF | 15 | |||
| Output Logic Levels High (VOH) | V | 0.9*VDD | |||
| Output Logic Levels Low (VOL) | V | 0.1*VDD | |||
| Rise (TR) and Fall (TF) Time | ns | 3 | |||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Input Impedance | kΩ | 51 | |||
| Modulation Bandwidth | kHz | 10 | @-3dB | ||
| Start-Up Time | ms | 10 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 1 |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
