SWS732 Series – 7.0mm x 3.15mm Ceramic SMD 2 Pad Watch Crystal

3D Product View

3D View

Features

• ±10ppm (Tolerance) Available
• Ultra-Miniature Package
• Tape and Reel

Applications

• Real Time Clock
• Measurement Instruments
• Wireless Applications

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

SWS732 Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangekHz32.768
Frequency Tolerance at +25ºCppm-20+20See part numbering guide for options.
Frequency Stability vs. Agingppm-3+3First year @ +25ºC.
Frequency Coefficient (ß)ppm/T²-0.040-0.034-0.028
Operating Temperature°C-2070See part numbering guide for options.
Turnover Temperature°C+20+25+30
Storage Temperature°C-55+125
Load CapacitancepF712.5See part numbering guide for options.
Shunt CapacitancepF1.33
Drive LevelμW0.10.5
Insulation Resistance500@ 100VDC ± 15V.
Equivalent Series Resistance70

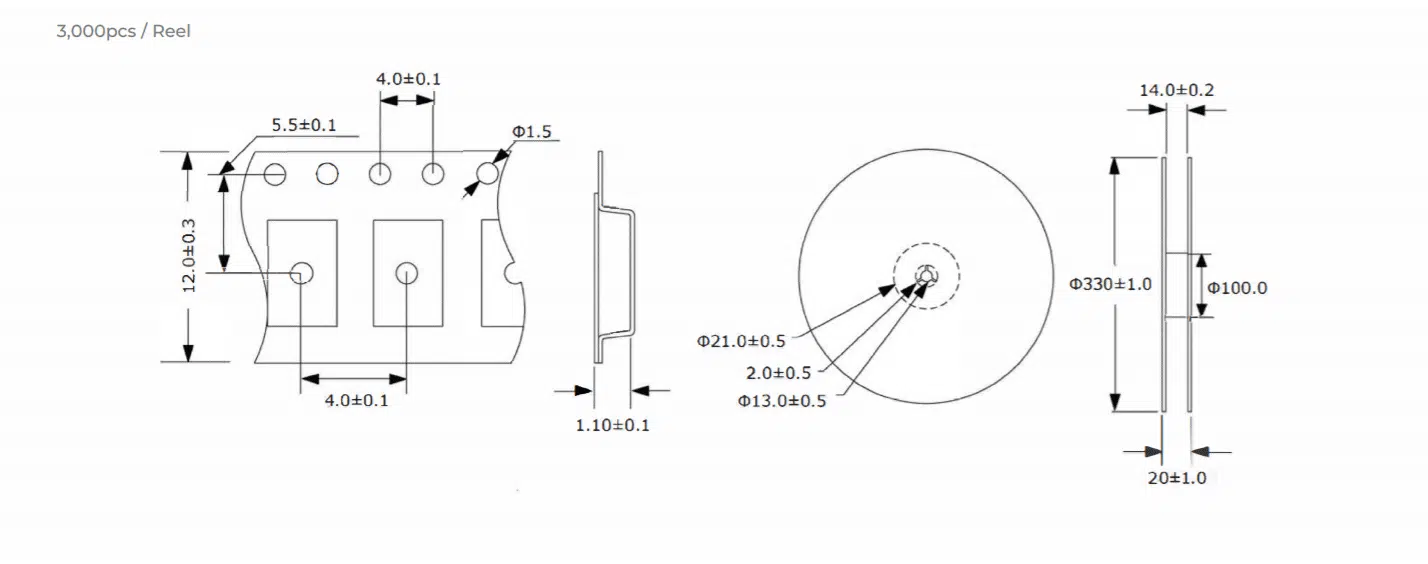

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
SWS732 Outline Drawing
