SWS832 Series – 8.0MM X 3.7MM Ceramic SMD 2 Pad Watch Crystal

3D Product View

3D View

Features

• ±20ppm (Tolerance) Available
• High Shock and Vibration Resistant
• Tape and Reel

Applications

• Real Time Clock
• Measurement Instruments
• Wireless Applications
• Harsh Environments

3D Product View

3D View

Features

• ±20ppm (Tolerance) Available
• High Shock and Vibration Resistant
• Tape and Reel

Applications

• Real Time Clock
• Measurement Instruments
• Wireless Applications
• Harsh Environments

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

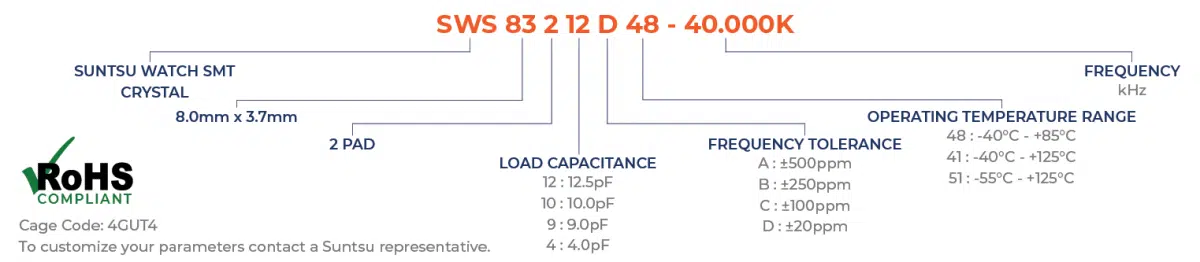

Part Numbering Guide - SWS832

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangekHz302000See part numbering guide for options.
Frequency Tolerance at +25ºC @ 30kHz~20kHzppm±20±10030kHz - 200kHz
Frequency Tolerance at +25ºC @ 201kHz~560kHzppm±100±250201kHz - 560kHz
Frequency Tolerance at +25ºC @ 561kHz~2000kHzppm±100±500561kHz - 2000kHz
Frequency Stability vs. Agingppm-3+3First year @ +25ºC.
Frequency Coefficient (ß)ppm/T²-0.039-0.035-0.032
Operating Temperature°C-55+125See part numbering guide for options.
Storage Temperature°C-55+125
Load Capacitance @ 30kHz~200kHzpF9.012.5See part numbering guide for options.
Load Capacitance @ 201kHz~560kHzpF4.0See part numbering guide for options.
Load Capacitance @ 561kHz~2000kHzpF10.0See part numbering guide for options.
Series Resistance @ 30kHz~200kHz406030kHz - 200kHz
Series Resistance @ 201kHz~560kHz1.43.5201kHz - 560kHz
Series Resistance @ 561kHz~2000kHz0.120.04561kHz - 2000kHz
Turnover Temperature @ 30kHz~200kHz°C202530
Turnover Temperature @ 201kHz~560kHz°C273237
Turnover Temperature @ 561kHz~2000kHz°C283338
Drive LevelμW1.0
Insulation Resistance500@ 100VDC ± 15V.

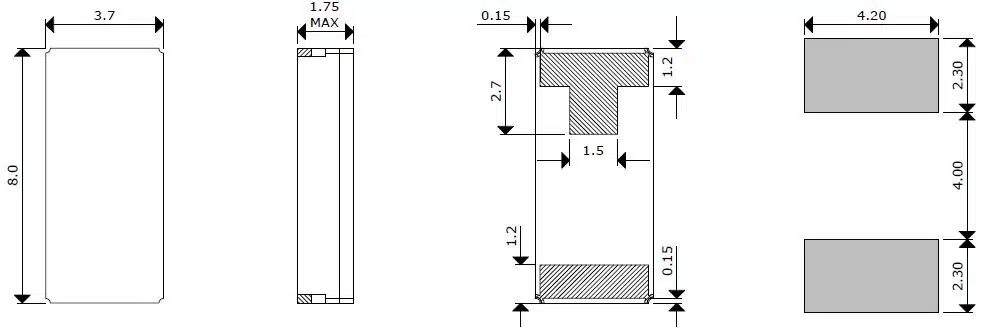

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
2D Drawings for SWS832
